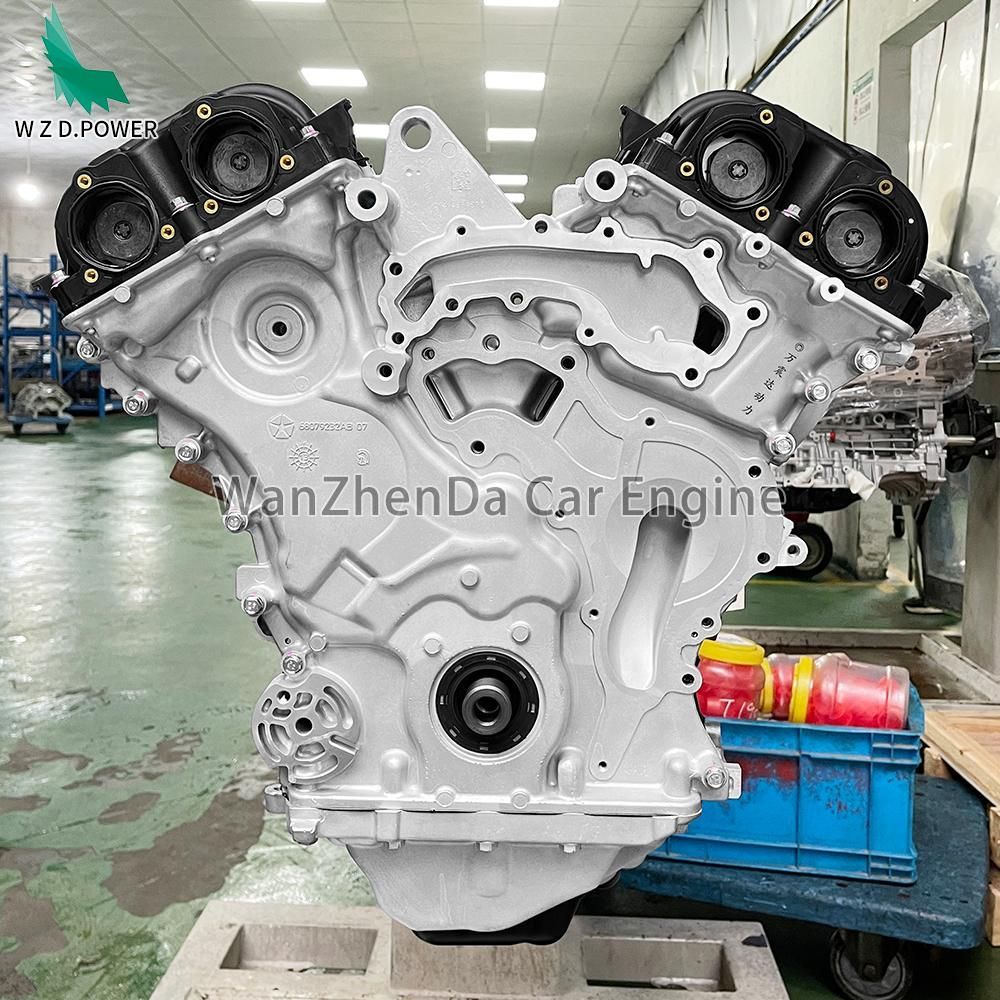

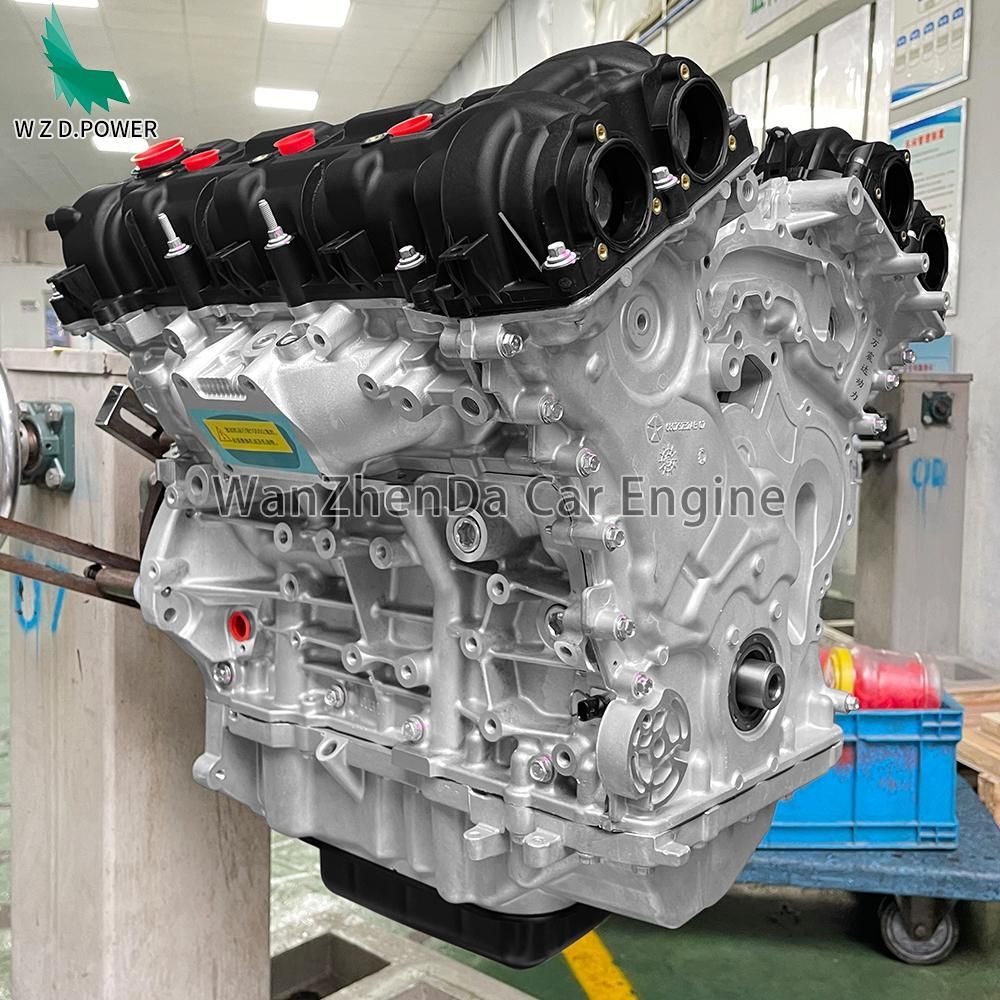

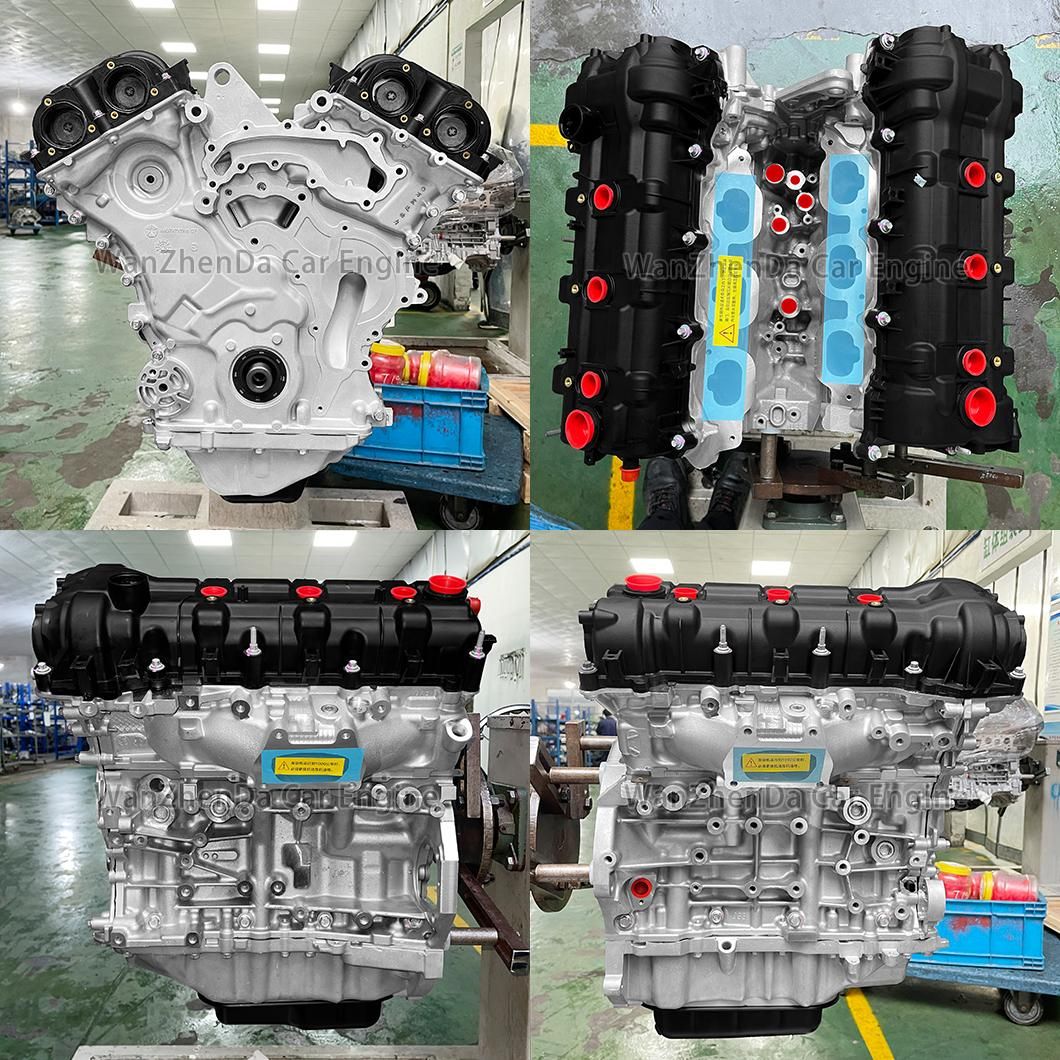

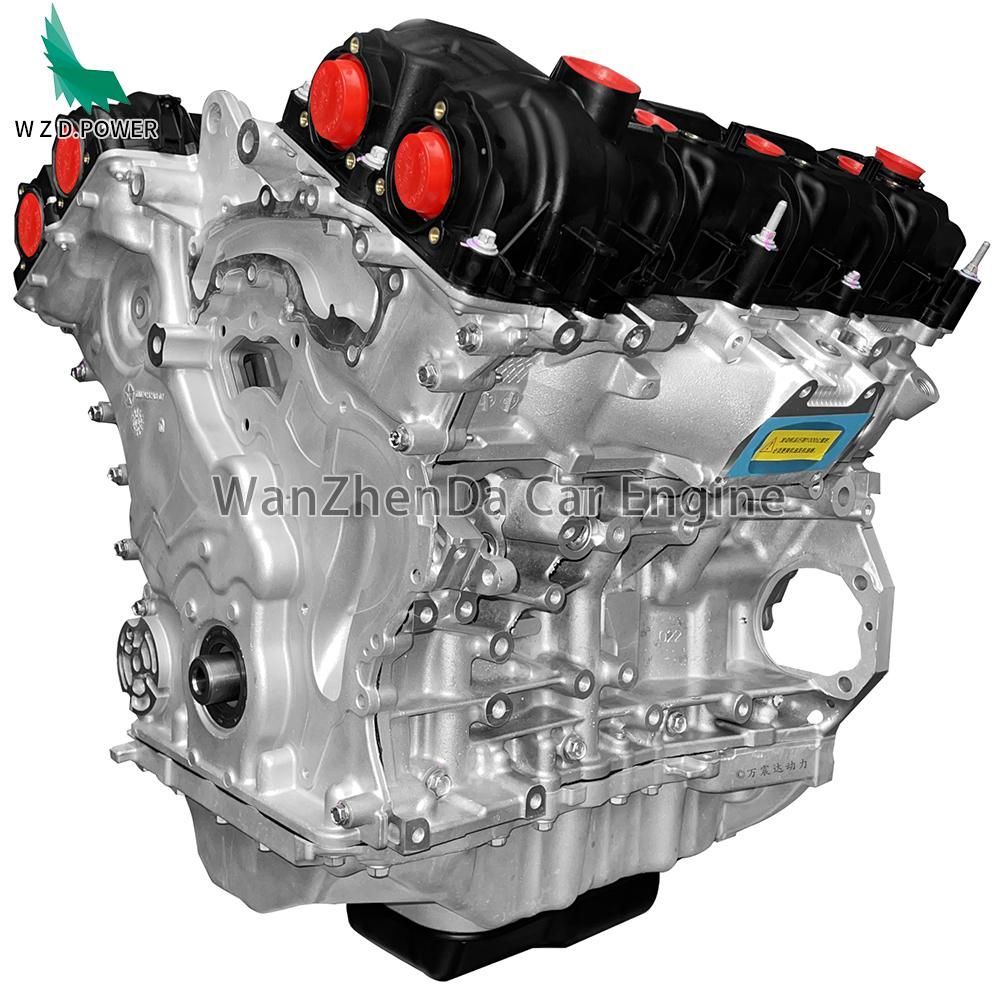

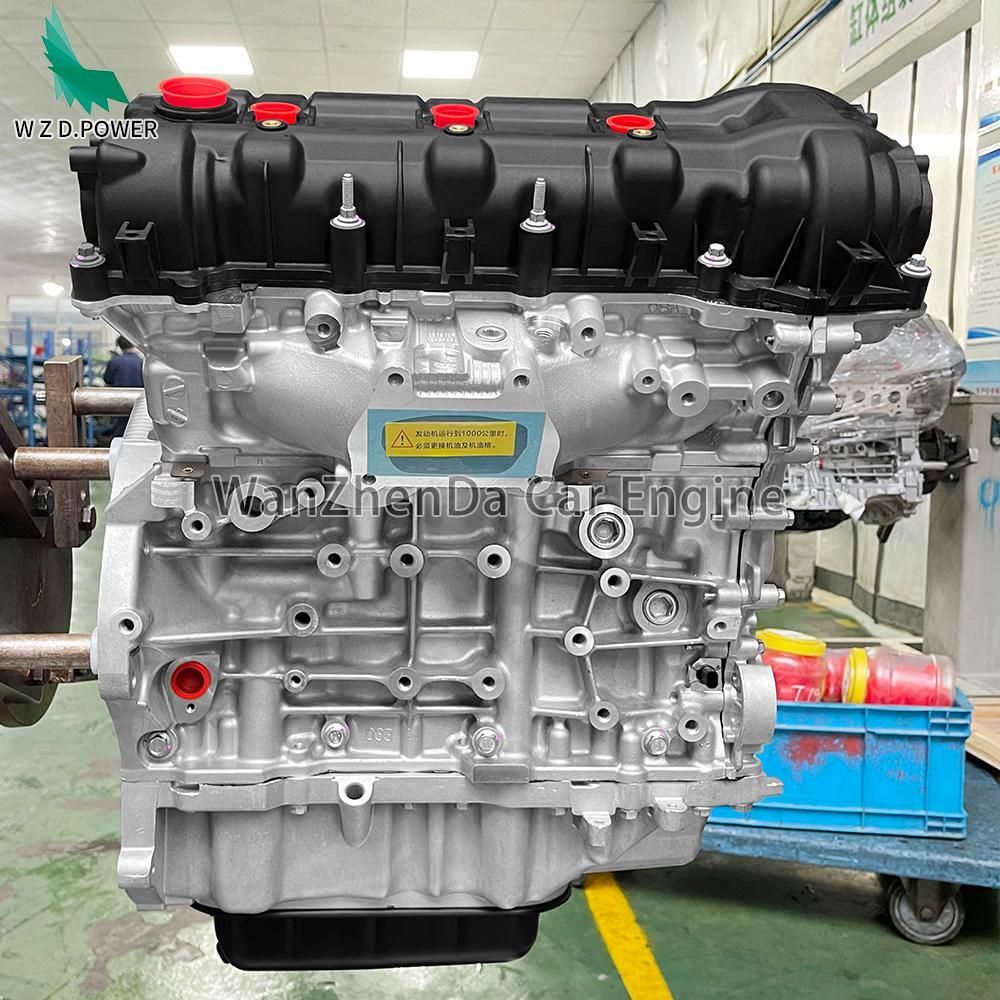

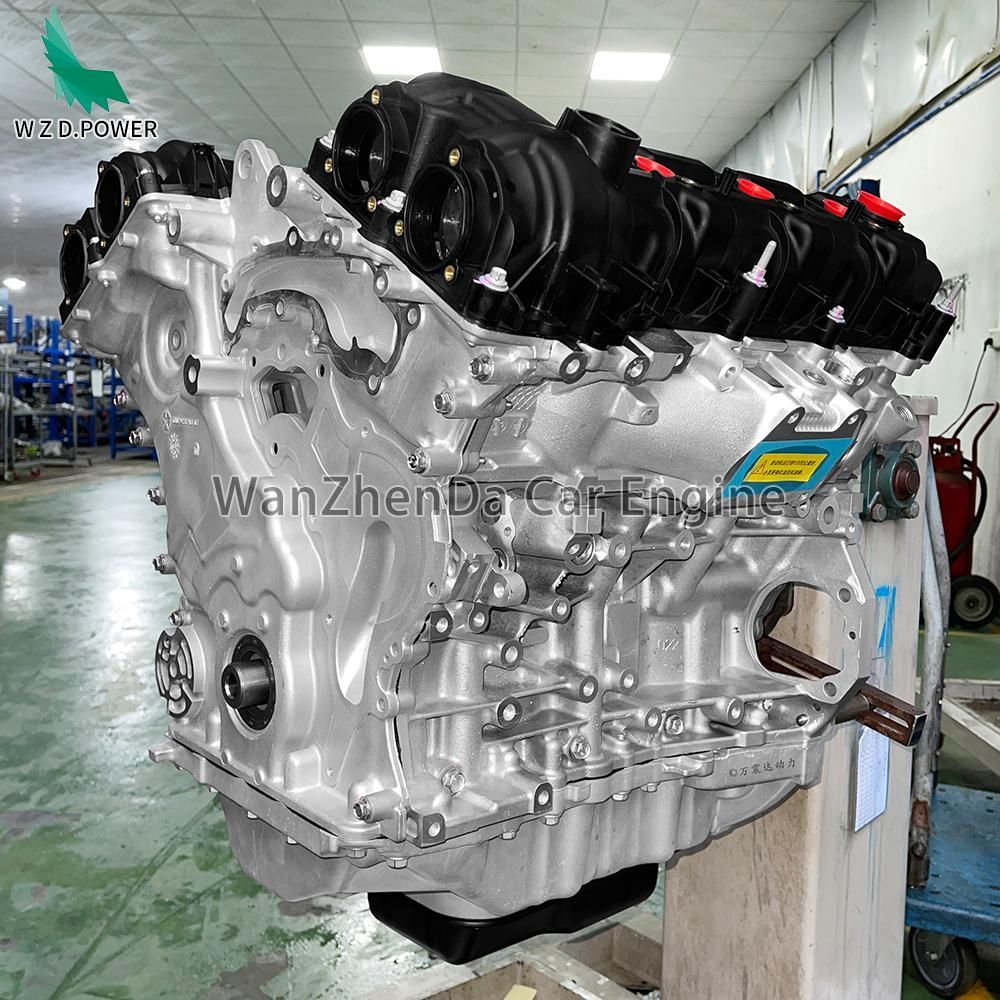

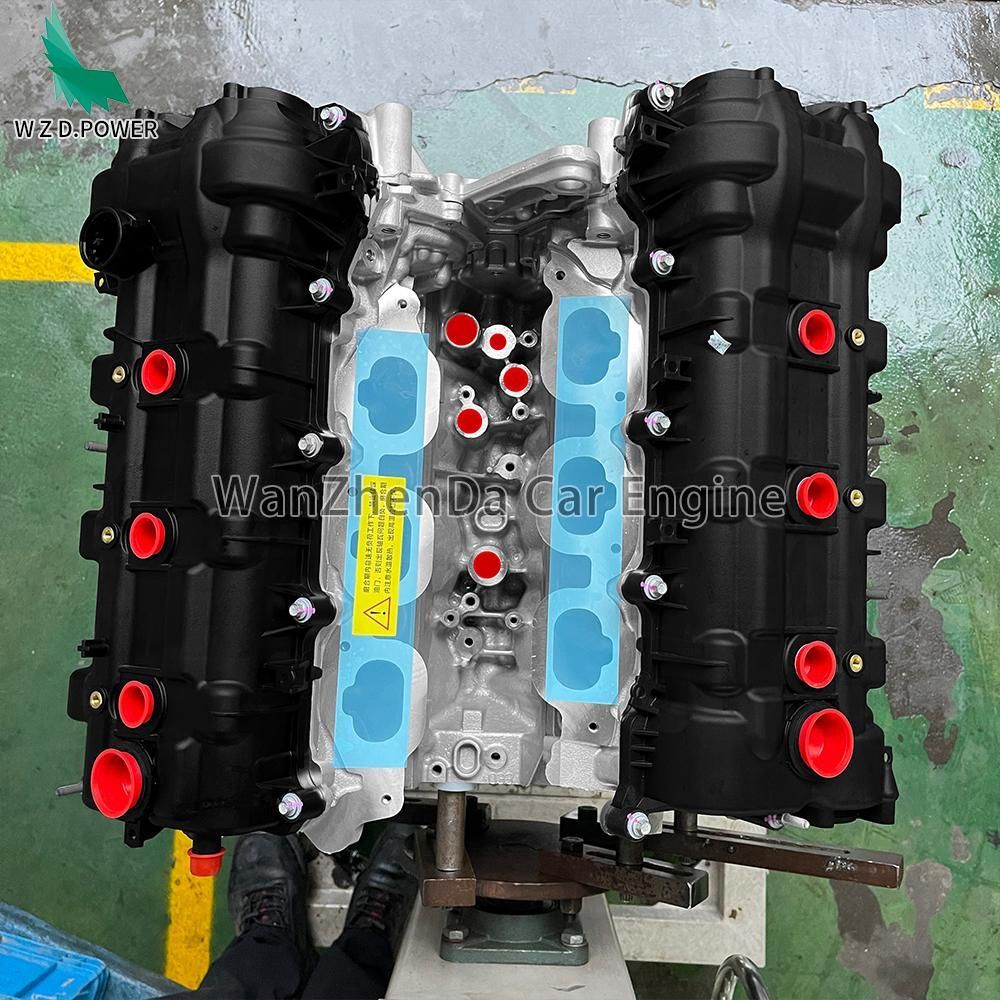

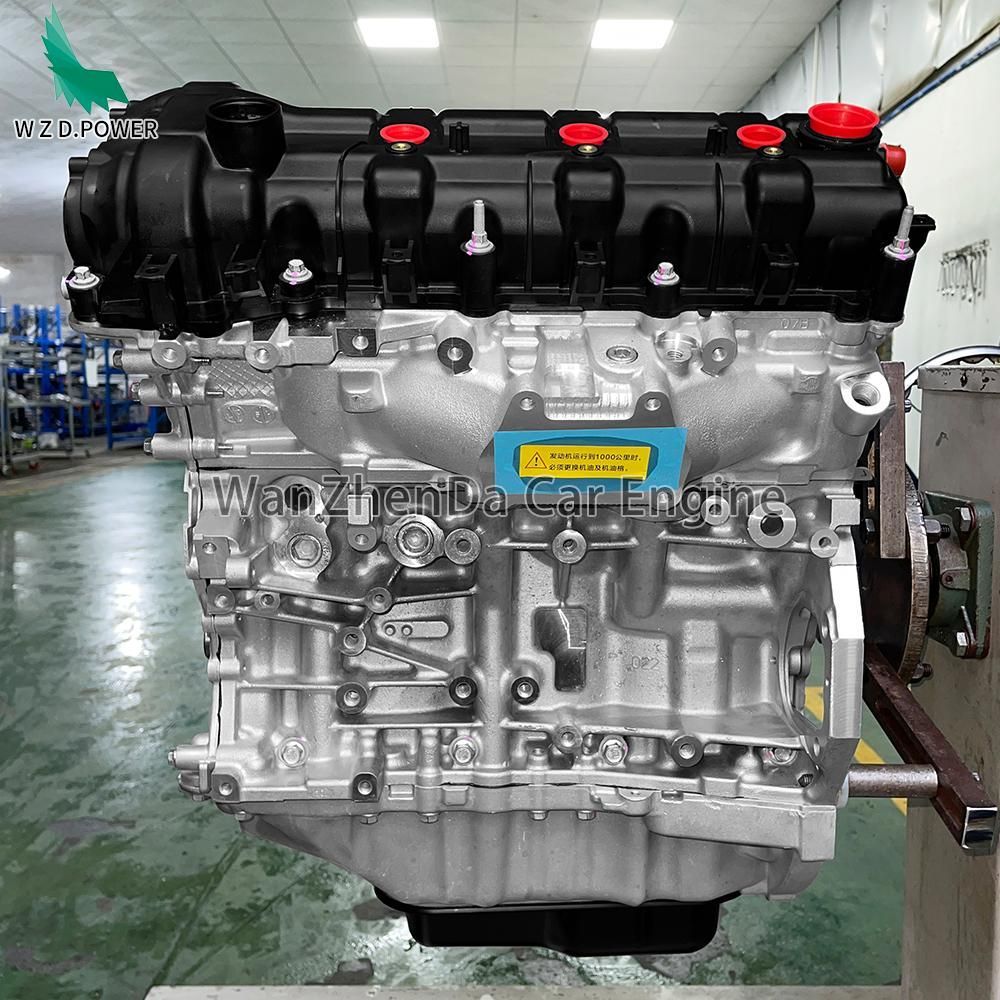

Jeep Wrangler 3.6L V6 ERB Pentastar Engine Assembly Long Block for JK JL 2012-2023

ERB is the official internal engine code for the renowned 3.6L Pentastar V6 engine from the Chrysler/Stellantis Group, as used in models

such as the Jeep Wrangler JK and JL. This engine series has been named

one of “Ward’s 10 Best Engines” on multiple occasions.


Technical Evolution: The ERB engine officially and completely replaced the older 3.8L V6 (EGH) in the 2012 Jeep Wrangler (JK generation),

significantly improving horsepower and fuel economy.

Featuring an all-aluminum cylinder block design, paired with a DOHC 24-valve configuration and VVT dual variable valve timing system,

it has become a “super-popular hit” in the overseas hardcore off-road

modification and OEM replacement parts markets.


Description

Our products are exported to various parts of the country, and the customers we have worked with have received unanimous praise.

The company has invested over 20 million yuan in high-end remanufacturing equipment imported from abroad and a first-class production

team in the country. Our warehouse has a total area of over 8000 square meters, with scientific management and sufficient supply of goods.

Jeep Wrangler 3.6L V6 ERB Pentastar Engine Assembly Long Block for JK JL 2012-2023

Technical Specifications

SpecificationDetails
Engine ModelERB
Engine FamilyPentastar
Displacement3.6L / 3,604cc
Engine Configuration60-degree V6
Cylinder ArrangementV6
Bore96mm
Stroke83mm
Valve ConfigurationDOHC, 24 valves
Fuel TypeGasoline
Fuel InjectionSequential Multi-Port Electronic Fuel Injection
AspirationNaturally Aspirated
Valve TimingVariable Valve Timing (VVT)
Timing DriveTiming Chain
Compression Ratio10.2:1 (early Wrangler specification)
Maximum Power285hp / 209kW at 6,400rpm
Maximum Torque260lb-ft / 353Nm at 4,800rpm
Cylinder BlockHigh-pressure Die-cast Aluminum Alloy
Cylinder LinersCast Iron
Cylinder HeadsAluminum Alloy

Specifications may vary according to production year, vehicle market and engine calibration.

Please confirm the exact engine configuration before ordering.

Vehicle Applications

The ERB 3.6L Pentastar V6 is associated with selected Jeep Wrangler JK models, including:

  • 2012–2018 Jeep Wrangler Sport 3.6L

  • 2012–2018 Jeep Wrangler Sahara 3.6L

  • 2012–2018 Jeep Wrangler Rubicon 3.6L

  • 2012–2018 Jeep Wrangler Unlimited Sport 3.6L

  • 2012–2018 Jeep Wrangler Unlimited Sahara 3.6L

  • 2012–2018 Jeep Wrangler Unlimited Rubicon 3.6L

Vehicle compatibility depends on the original engine code, production date, transmission, emissions specification and engine configuration.

Important: The 2018 Jeep Wrangler JL uses a different 3.6L engine catalog designation, ERC.

Do not assume that an ERB long block is interchangeable with an ERC engine.

OE Reference Numbers

The following Mopar references are associated with selected 2018 Jeep Wrangler JK 3.6L ERB long block applications:

  • 68264741AB – Engine Long Block

  • 68426944AE – Replacement reference for 68264741AB

  • 05184464AE, 68088824AA, 68282711AA, RL088824AA

Additional identification references may include:

  • 05184445AI – Cylinder Head Casting Reference

  • 05184510AJ – Cylinder Head Casting Reference

Cylinder head casting numbers are not complete engine long block part numbers.

OE references should be verified against the vehicle VIN, original engine identification

and production configuration before purchase.


Key attributes

B2B Engine Supply

We welcome inquiries from international automotive engine distributors, importers,

wholesalers, engine rebuilders and professional repair workshops.

Our product information and quotation support can include:

  • Engine model and technical specifications

  • OE reference verification

  • Vehicle application checking

  • Product photographs

  • Long block component configuration

  • Packing and shipping information

  • Wholesale quotation support

Please contact our sales team with your required quantity and destination country.

Fitment Verification

To help confirm the correct ERB 3.6L engine long block, please provide:

  1. Jeep Wrangler model and trim

  2. Vehicle production year

  3. Vehicle VIN

  4. Original engine code

  5. Original engine OE number

  6. Transmission type

  7. Engine photographs or identification plate

The ERB 3.6L engine should not be confused with the earlier 3.8L Wrangler engine or the later ERC-designated 3.6L JL engine.

Please verify the original engine configuration before ordering to reduce the risk of incorrect fitment.

Frequently Asked Questions

Q1: What does ERB mean on a Jeep Wrangler 3.6L engine?

ERB is an engine designation used for the Chrysler Pentastar 3.6L V6 gasoline engine in selected Jeep Wrangler JK applications.


Q2: Which Jeep Wrangler models use the ERB 3.6L engine?

Selected 2012–2018 Jeep Wrangler JK and Wrangler Unlimited JK models use the ERB 3.6L V6. Exact compatibility

should be checked using the VIN and original engine code.


Q3: Is the ERB engine the same as the ERC engine?

No. ERB and ERC are different engine catalog designations. The 2018 Wrangler JK 3.6L is listed under ERB,

while the 2018 Wrangler JL 3.6L catalog uses ERC. Compatibility should not be assumed.


Q4: What is the material of the Pentastar 3.6L engine block?

The Pentastar 3.6L uses a high-pressure die-cast aluminum alloy cylinder block with cast-iron cylinder liners

and aluminum alloy cylinder heads.


Q5: Does the long block include the intake manifold and oil pan?

Not necessarily. Long block configurations vary. Please request a detailed component list

and actual product photographs to confirm the supplied parts.


Q6: Can you provide wholesale engine quotations?

Yes. Please provide the engine code, OE reference, required quantity and destination country for a B2B quotation.

Request a Wholesale Quotation

Looking for a Jeep Wrangler ERB 3.6L Pentastar V6 engine long block?

Contact us with your vehicle information, original engine code, OE reference and purchasing requirements.

We welcome inquiries from international engine importers, wholesalers, distributors, engine rebuilding companies

and professional automotive repair workshops.

Contact us today for technical information, fitment verification and wholesale pricing.


Place of OriginGuangdong, China

Condition

New
Purpose

for replace/repair

TypeGas / Petrol Engine
Power

OEM Standards


Lead time
Quantity (pieces)1-1011-50

>50

Lead time (days)715

To be negotiated


Our Strengths

1. Our remanufactured products use accessories provided by well-known brand suppliers such as VICTORREINZ, SCHAEFFLER, KS KOLBENSCHMIDT GmbH, etc.


2. Our product quality is close to the original factory quality, but the price is only 50-60% of the original engine. We can also provide you with a one-year or 100000 kilometer warranty service for the entire machine, and professional after-sales personnel will follow up with you.


3. We have over 15 years of experience in the production and research of automotive engines, and our technical level and personnel training are very scientific and mature. Customers who have worked with us have expressed their agreement with our products and after-sales service.


4. 2018 It has achieved an annual production capacity of 2200 units and has become a major supplier of high-end engine remanufacturing and parts in China's automotive aftermarket.


5. In April 2021, T/CAAMTB passed the certification company of China Automobile Research and Huacheng. 19-2019 Certification of the management system requirements of gas vehicle parts remanufacturing enterprisesIn October 2021, he became a member of the National Green Manufacturing Technology Standardization Committee and participated in the drafting of the Technical Specification for Assembly of Remanufacturing Mechanical and Electrical Products.
