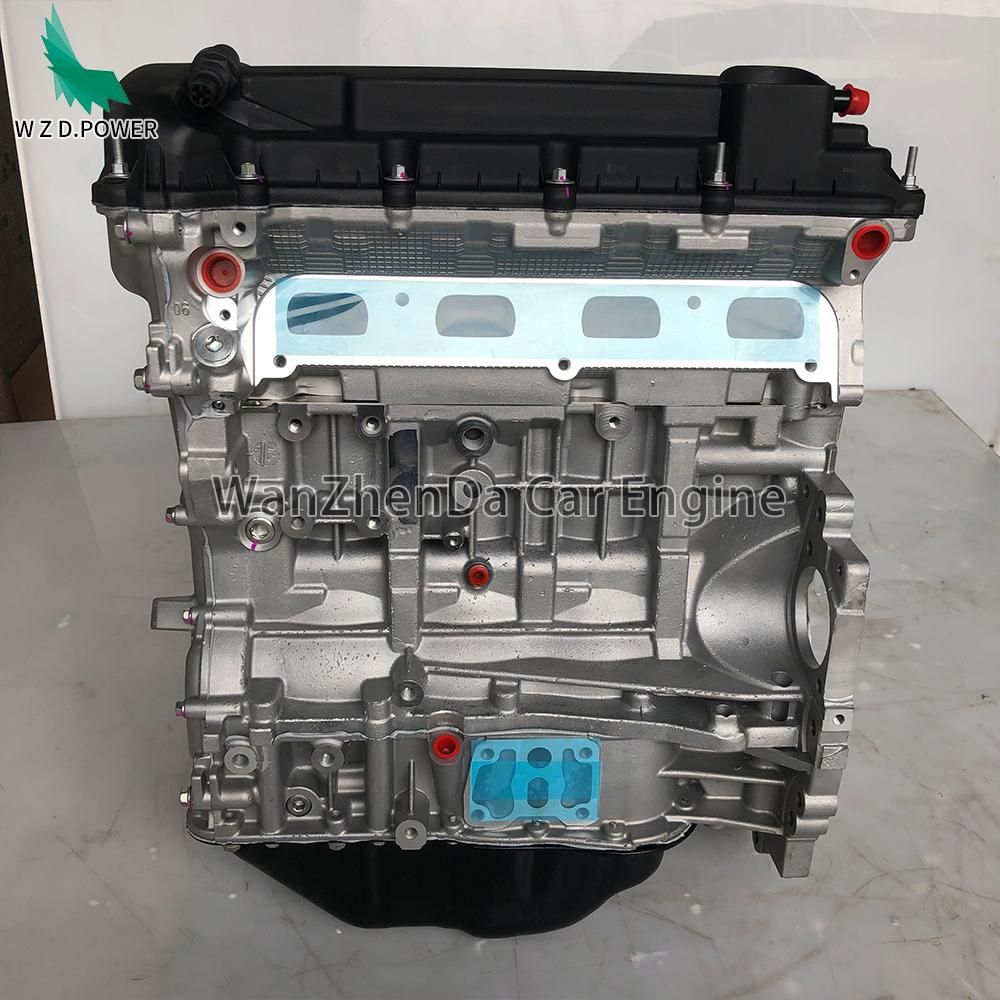

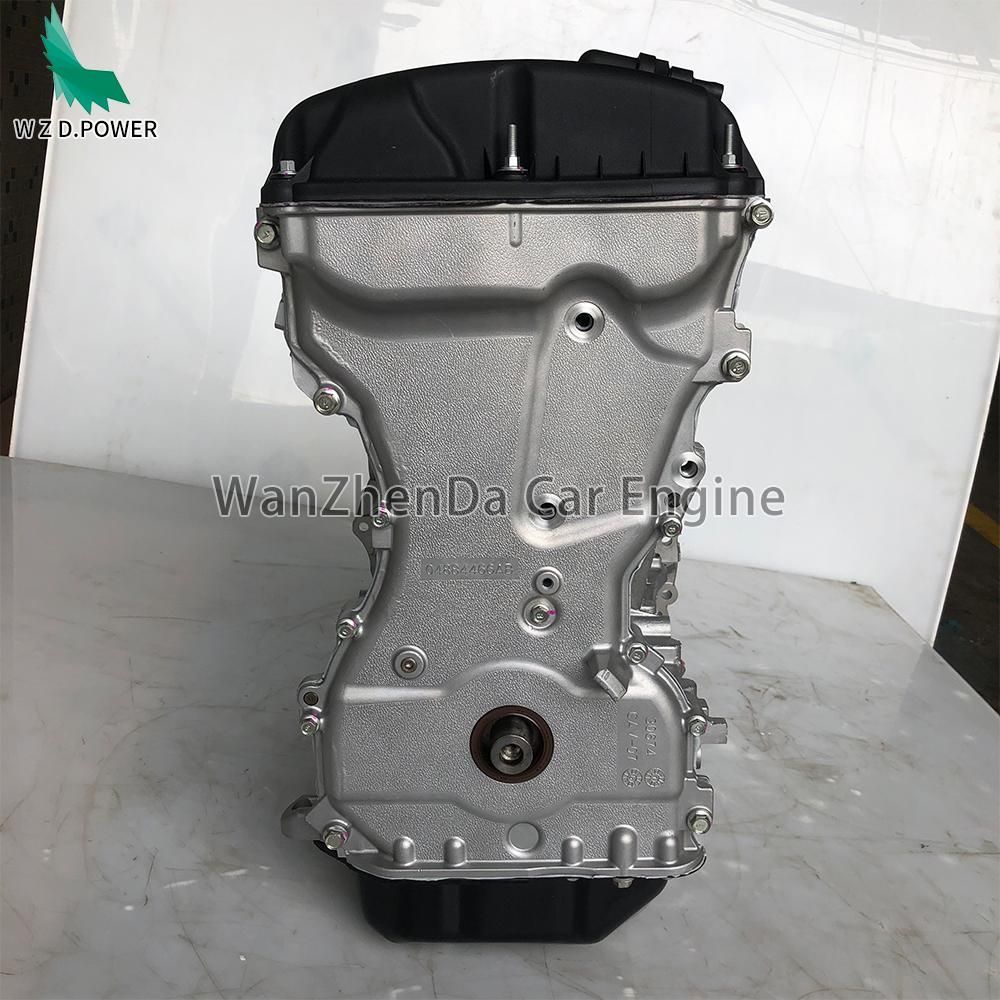

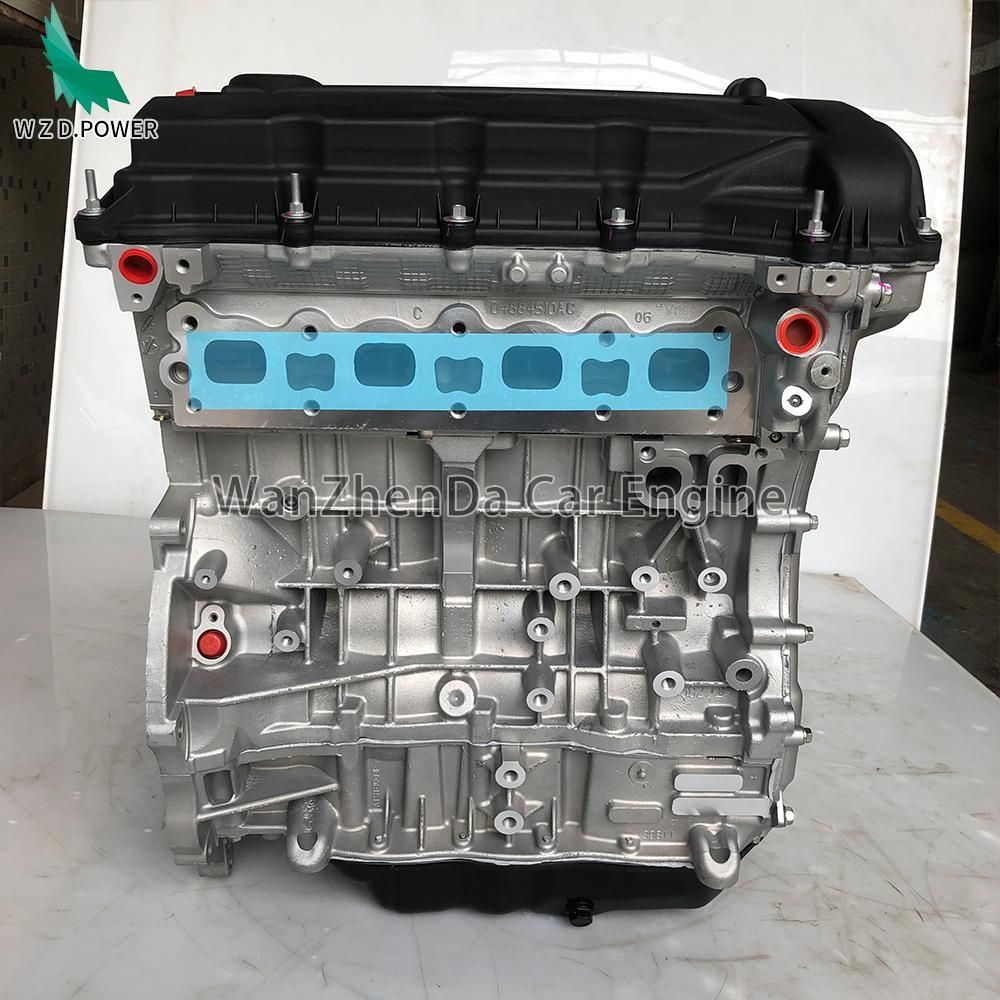

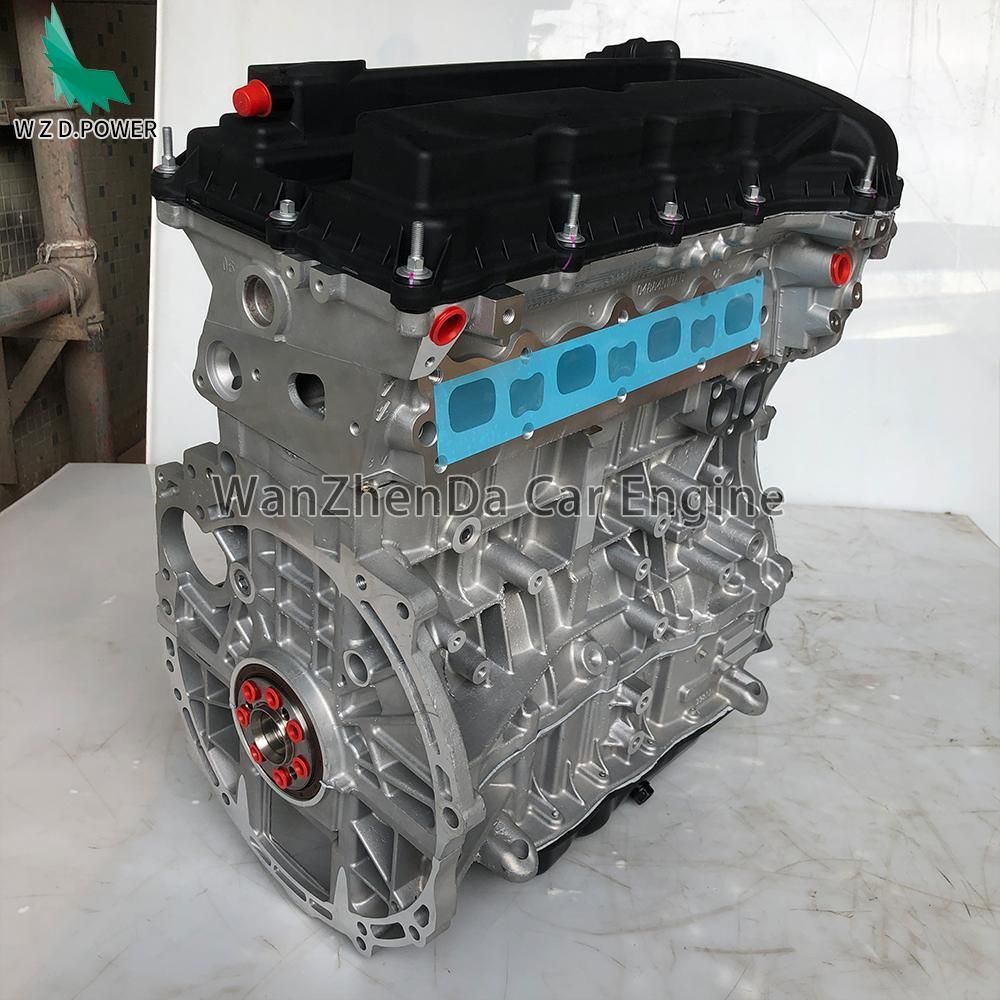

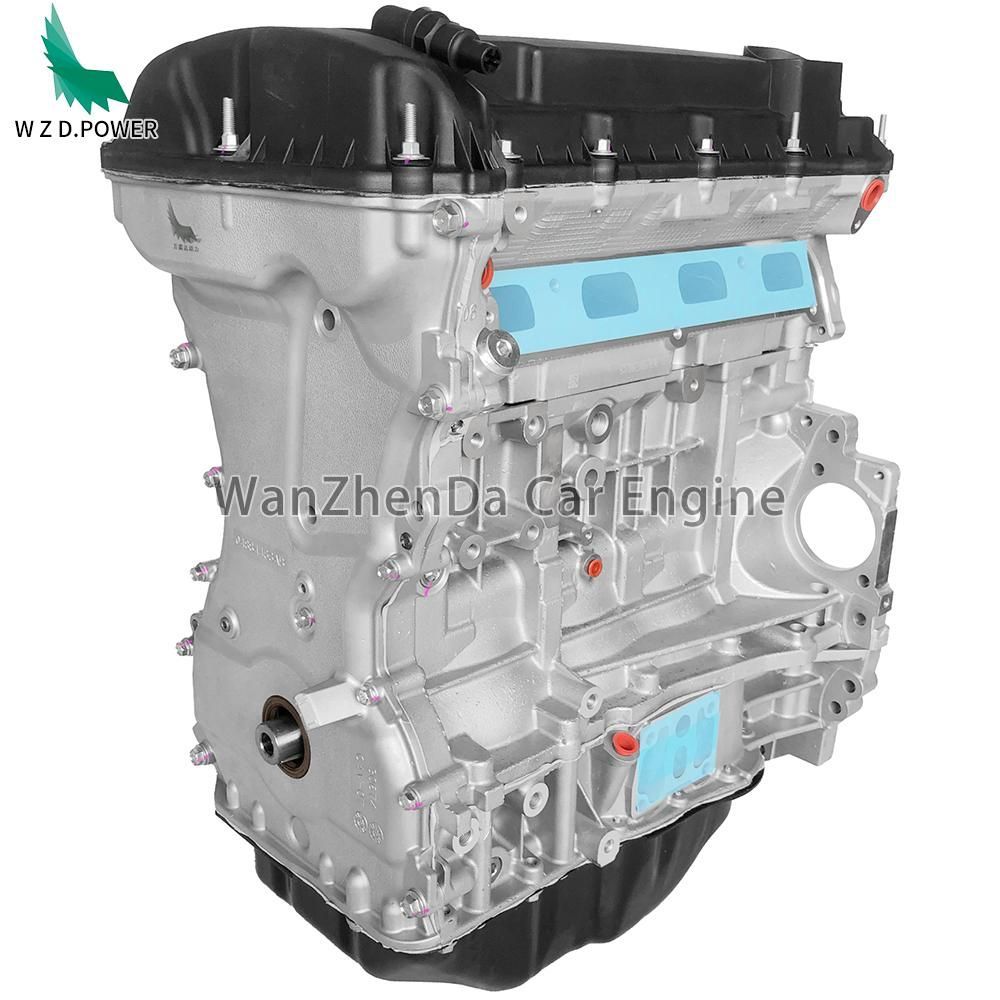

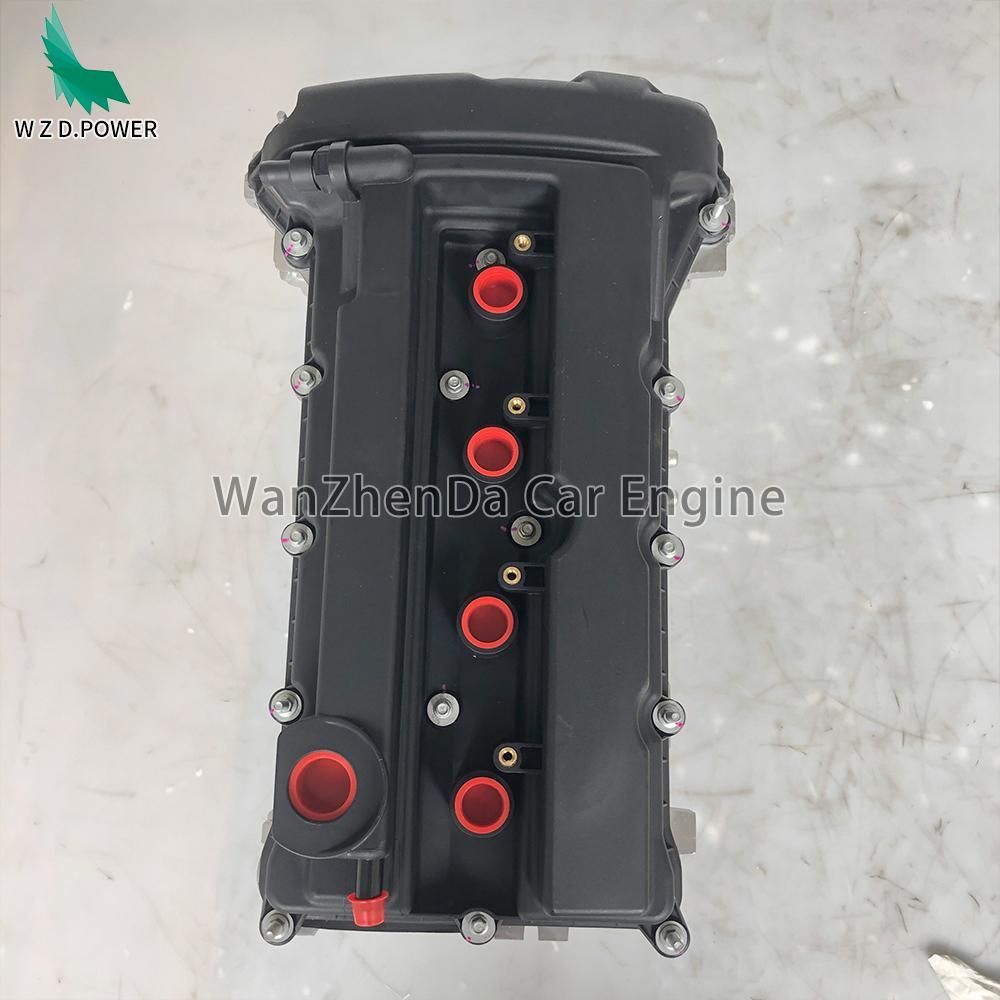

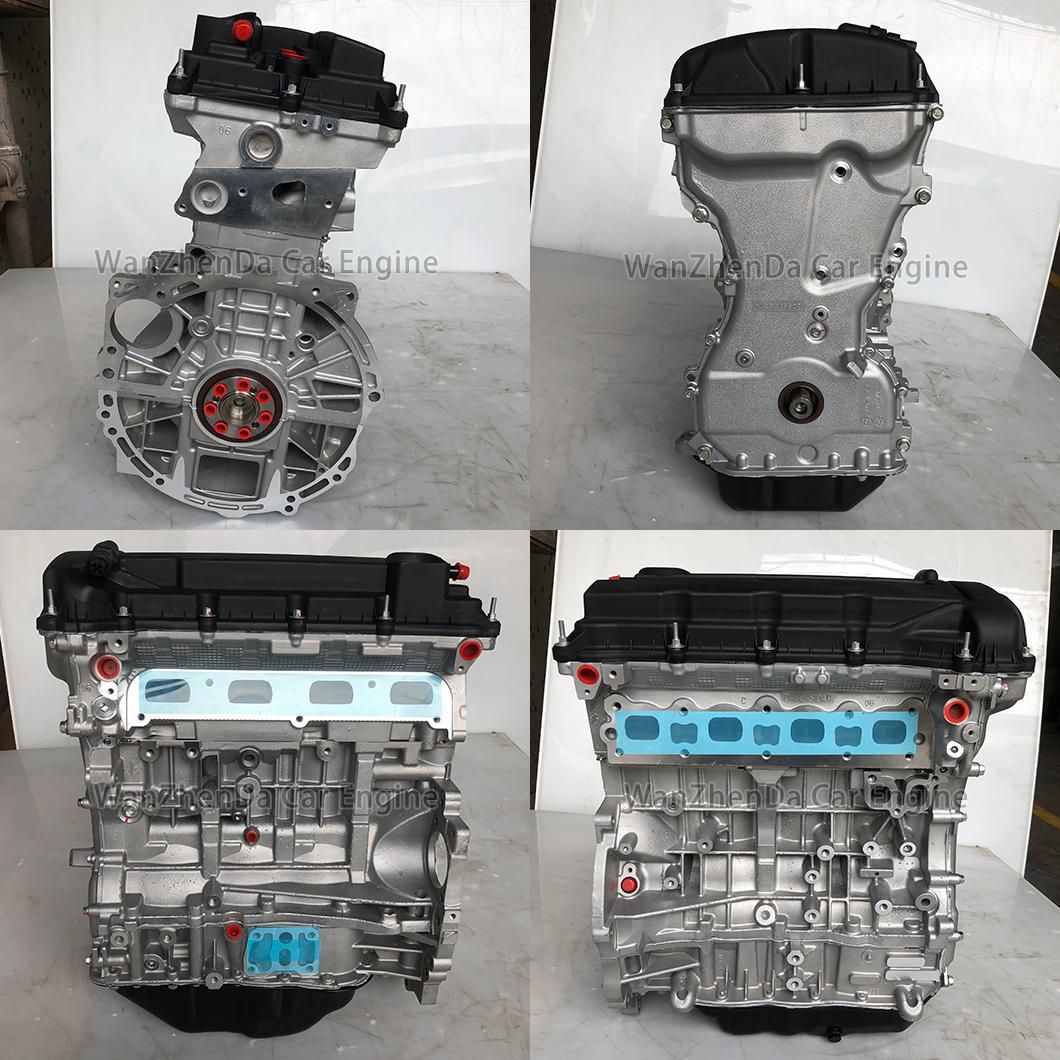

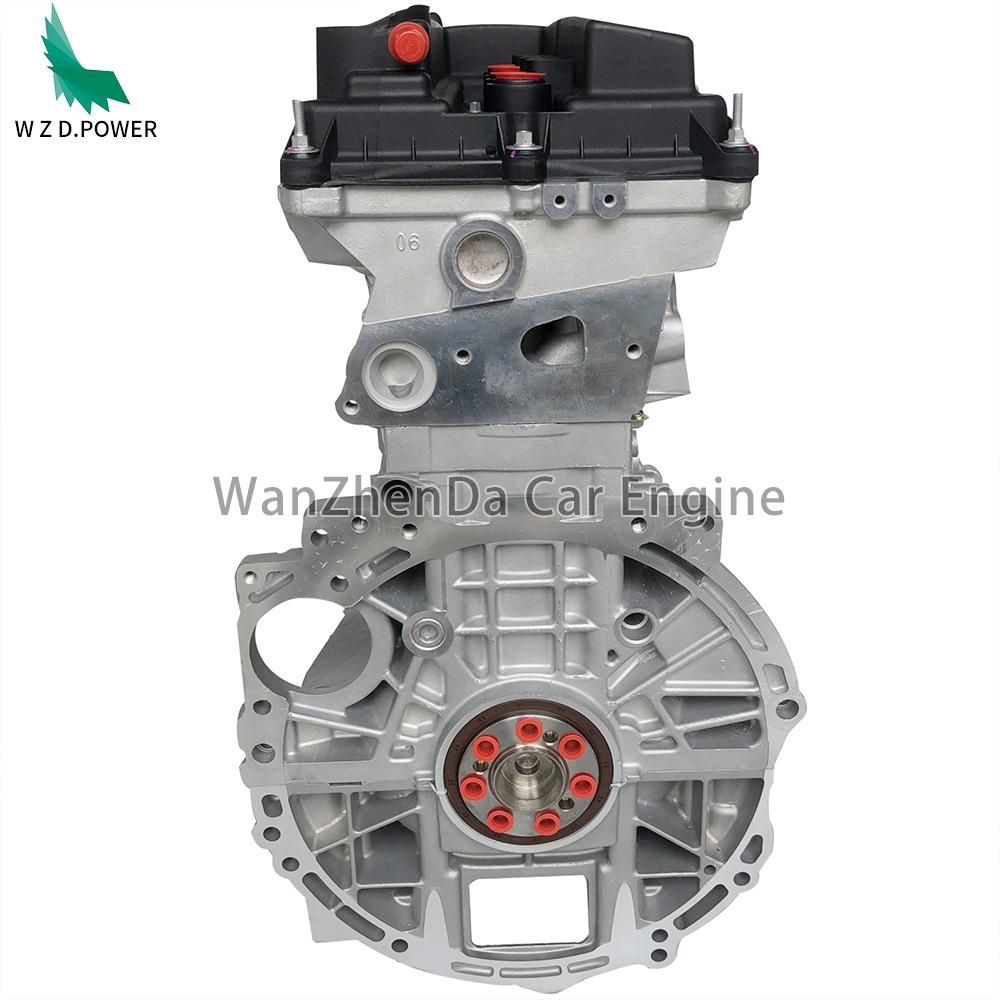

Jeep Compass Patriot 2.4L ED3 World Engine Assembly Long Block 2007-2017

ED3 is the official engine code used within the Chrysler/Stellantis Group for the 2.4L World Gasoline Engine (WGE)

(i.e., the “World Engine” platform, also known as the 2.4 World Engine or Tigershark).


Technical Evolution: This platform was jointly developed by the “Global Engine Manufacturing Alliance (GEMA),” a consortium formed by

 Chrysler, Mitsubishi, and Hyundai (Mitsubishi’s equivalent code is 4B12, while Hyundai/Kia’s equivalent codes are Theta and Theta II).

The ED3 version was widely used in classic models such as the Jeep Compass (MK49), Jeep Patriot, and Dodge Caliber.

It features a dual VVT timing system with a simple and proven design.


Description

Our products are exported to various parts of the country, and the customers we have worked with have received unanimous praise.

The company has invested over 20 million yuan in high-end remanufacturing equipment imported from abroad and a first-class production

team in the country. Our warehouse has a total area of over 8000 square meters, with scientific management and sufficient supply of goods.

Jeep Compass Patriot 2.4L ED3 World Engine Assembly Long Block 2007-2017

Technical Specifications

SpecificationDetails
Engine ManufacturerChrysler
Engine FamilyWorld Engine / GEMA
Engine CodeED3
Displacement2,360cc / 2.4L
Engine ConfigurationInline 4-Cylinder
Bore88mm
Stroke97mm
Compression Ratio10.5:1
Valve ConfigurationDOHC, 16 Valves
Valve TimingDual VVT
Timing SystemTiming Chain
Fuel TypeGasoline
Fuel InjectionSequential Multi-Port Electronic Fuel Injection
AspirationNaturally Aspirated
Maximum Power172hp / 129kW at 6,000rpm
Maximum Torque165lb-ft / 224Nm at 4,400rpm
Cylinder BlockHigh-Pressure Die-Cast Aluminum
Cylinder LinersDry Cast-Iron Liners
Cylinder HeadCast Aluminum Alloy

Specifications are based on common Jeep Compass ED3 applications.

Actual engine output and equipment may vary according to model year, emissions configuration and vehicle market.

ehicle Applications

The ED3 2.4L engine is associated with selected applications including:

Jeep Applications

  • Jeep Compass MK 2.4L – 2007–2017, selected versions

  • Jeep Patriot MK 2.4L – 2007–2017, selected versions

Other Chrysler Group Applications

  • Dodge Caliber 2.4L – selected model years

  • Dodge Avenger 2.4L – selected versions

  • Dodge Journey 2.4L – selected versions

  • Chrysler Sebring 2.4L – selected versions

  • Chrysler 200 2.4L – selected versions

  • Fiat Freemont 2.4L – selected market versions

Vehicle fitment must be verified by engine code, VIN, production date, transmission and emissions specification.

OE Reference Numbers

The following OE and Mopar catalog references are associated with selected ED3 2.4L World Engine long block applications:

  • 04884603AC – Engine Long Block

  • 04884603DA – 2.4L World Engine Long Block

  • 4884602CA – Engine Long Block

  • 4884603CA – Engine Long Block

  • R8258727AA – Remanufactured Engine Long Block

  • R8258727AC – Remanufactured 2.4L World Engine Long Block

  • 05047124AA, 05047125AA, 5047124AB, RL047124AA – Long Block:

Related reference:

  • 05183906AA – Short Block

  • 05183906AC – Short Block

  • 04893191EA – 2.4L PZEV Long Block, EDG application

Please note that short block and PZEV part numbers are not interchangeable with all standard ED3 long block applications.

OE references should be checked against the original engine identification, VIN and production date before ordering.


Key attributes

B2B Wholesale Supply

We welcome inquiries from international automotive engine importers, wholesalers,

distributors, engine rebuilding companies and professional repair workshops.

Our sales team can assist with:

  • Engine model identification

  • Technical specification information

  • OE reference verification

  • Vehicle application checking

  • Long block configuration confirmation

  • Product photographs

  • Packing and shipping information

  • Wholesale quotation support

For an accurate quotation, please provide your required quantity, destination country and original engine information.

Important Fitment Notes

The ED3 2.4L World Engine should not be confused with other 2.4L Chrysler engine codes.

  • ED3: Standard 2.4L World Engine application

  • EDG: Selected 2.4L PZEV emissions application

  • ED6 / ED8: Later 2.4L Tigershark engine family

These engine codes may have different internal components, OE numbers and vehicle compatibility.

Earlier and later ED3 production versions may also have differences in piston cooling oil-squirt arrangements.

Please verify the original engine code, production date, VIN and OE reference before ordering.

Frequently Asked Questions

Q1: What is the ED3 engine?

The ED3 is a 2.4L naturally aspirated gasoline inline-four engine from the Chrysler World Engine family.

It features DOHC, 16 valves and Dual VVT.


Q2: Which Jeep vehicles use the ED3 2.4L engine?

Selected 2007–2017 Jeep Compass MK and Jeep Patriot MK models use the ED3 2.4L engine.

Exact compatibility depends on the vehicle market, production year and configuration.


Q3: Is the ED3 engine the same as the EDG engine?

No. EDG is associated with selected PZEV emissions configurations.

Its engine and OE references should be checked separately.


Q4: What is the cylinder block material?

The ED3 uses a high-pressure die-cast aluminum alloy cylinder block with dry cast-iron cylinder liners.


Q5: Does the ED3 long block include the intake manifold and alternator?

Not necessarily. These are external components and depend on the actual product configuration.

Please request a detailed component list before ordering.


Q6: Can you provide wholesale quotations for the ED3 engine?

Yes. We welcome wholesale inquiries from international engine distributors, importers,

engine rebuilding companies and automotive parts suppliers.


Q7: How can I confirm whether the ED3 long block fits my vehicle?

Please provide the vehicle VIN, model year, original engine code, transmission type and OE reference.

These details help verify the correct engine configuration.

Request a Wholesale Quotation

Looking for a Jeep Compass ED3 2.4L World Engine Long Block?

Contact us with your engine code, OE reference, required quantity and destination country.

We welcome inquiries from international engine importers, distributors, wholesalers and professional engine rebuilding companies.

Contact our sales team today for technical details, vehicle compatibility assistance and wholesale pricing.


Place of OriginGuangdong, China
ConditionNew
Purposefor replace/repair
TypeGas / Petrol Engine
PowerOEM Standards


Lead time
Quantity (pieces)1-1011-50>50
Lead time (days)715To be negotiated


Our Strengths

1. Our remanufactured products use accessories provided by well-known brand suppliers such as VICTORREINZ, SCHAEFFLER, KS KOLBENSCHMIDT GmbH, etc.


2. Our product quality is close to the original factory quality, but the price is only 50-60% of the original engine. We can also provide you with a one-year or 100000 kilometer warranty service for the entire machine, and professional after-sales personnel will follow up with you.


3. We have over 15 years of experience in the production and research of automotive engines, and our technical level and personnel training are very scientific and mature. Customers who have worked with us have expressed their agreement with our products and after-sales service.


4. 2018 It has achieved an annual production capacity of 2200 units and has become a major supplier of high-end engine remanufacturing and parts in China's automotive aftermarket.


5. In April 2021, T/CAAMTB passed the certification company of China Automobile Research and Huacheng. 19-2019 Certification of the management system requirements of gas vehicle parts remanufacturing enterprisesIn October 2021, he became a member of the National Green Manufacturing Technology Standardization Committee and participated in the drafting of the Technical Specification for Assembly of Remanufacturing Mechanical and Electrical Products.
