In an internal combustion engine, the cylinder head (often simply called the "head") is one of the most critical structural components. Positioned at the top of the engine block, it seals the combustion chambers and plays a vital role in fuel combustion, gas exchange, and engine cooling.

Whether you are performing a complete engine rebuild or sourcing replacement auto parts, understanding the function, material, structure, and failure symptoms of an engine cylinder head is essential.

1. What is the Primary Function of a Cylinder Head?

The cylinder head sits above the engine cylinders, bolted directly onto the top of the engine block with a head gasket sandwiched between them to form a pressure-tight seal.

Its primary responsibilities include:

• Sealing the Combustion Chamber: Enclosing the top of the cylinder to contain extreme explosion pressures.

• Gas Flow Control: Housing the intake and exhaust valves to manage air-fuel mixture entry and exhaust gas evacuation.

• Housing Key Components: Accommodating spark plugs (for gasoline engines) or fuel injectors (for diesel engines), as well as camshafts and rocker arms in Overhead Camshaft (OHC/DOHC) configurations.

• Cooling & Lubrication: Containing intricate passages (water jackets and oil galleries) to circulate coolant and engine oil.

2. Materials Used in Cylinder Head Manufacturing

Engine cylinder heads must endure high temperatures, extreme mechanical stress, and thermal expansion. Manufacturers primarily use two materials:

A. Aluminum Alloy (Most Common in Modern Vehicles)

• Advantages: Lightweight, excellent thermal conductivity (heats up and cools down quickly), and easy to machine.

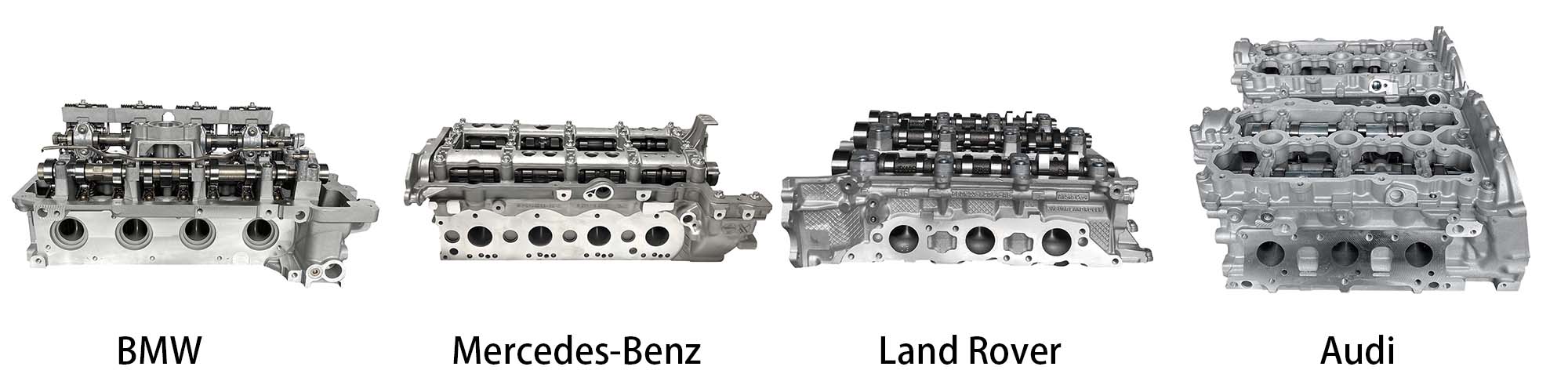

• Applications: Used in almost all modern passenger cars (such as Audi, BMW, Mercedes-Benz, Toyota, and Volkswagen).

• Cons: More susceptible to warping or cracking if the engine severely overheats.

B. Cast Iron (Traditional & Heavy-Duty)

• Advantages: Extremely high strength, exceptional wear resistance, and less prone to thermal deformation.

• Applications: Common in heavy-duty commercial trucks, industrial machinery, diesel engines, and older classic vehicles.

• Cons: Much heavier than aluminum, with lower heat dissipation efficiency.

3. Structural Components of a Cylinder Head

A modern cylinder head is an intricate casting containing several precision-machined internal and external features:

1. Intake and Exhaust Ports: Passages that guide air/fuel into the combustion chamber and direct exhaust gases into the manifold.

2. Valves, Springs, and Guides: In-head valves that open and close precise intake/exhaust cycles controlled by the camshaft.

3. Camshaft Bore / Journals: In Overhead Cam (OHC/DOHC) designs, the cylinder head holds the camshaft(s) and bearing caps.

4. Combustion Chamber Bowl: The recessed area where fuel ignition occurs.

5. Cooling Water Jackets: Internal hollow channels surrounding the combustion areas to transport engine coolant.

6. Oil Passages: Pressurized channels that feed engine oil to the camshafts, valve lifters, and rocker arms.

4. Common Symptoms of Cylinder Head Failure

Because the cylinder head operates under intense heat and pressure, component fatigue or severe overheating can cause significant engine failures. Here are the most common issues:

1. Engine Overheating & Warped Head

• Cause: Running the engine without adequate coolant, a failed water pump, or a stuck thermostat.

• Symptom: Aluminum cylinder heads warp easily when exposed to extreme heat, preventing the head gasket from sealing properly.

2. Cracked Cylinder Head

• Cause: Thermal stress caused by sudden temperature changes (e.g., pouring cold water into an overheated engine) or manufacturing fatigue over high mileage.

• Symptom: Coolant leaking into oil galleries (resulting in milky oil under the oil cap) or white smoke blowing out of the exhaust pipe.

3. Blown Head Gasket

• Cause: Extreme combustion pressure or head distortion breaking the seal between the block and the head.

• Symptom: Rapid coolant loss, engine misfires, bubbling in the coolant expansion tank, and sudden loss of compression.

4. Valve & Guide Wear

• Cause: Oil starvation, carbon buildup, or high mileage.

• Symptom: Blue exhaust smoke during startup (oil burning), excessive engine tapping noise, and decreased engine horsepower.

Summary & Recommendations for Engine Rebuilders

The engine cylinder head is a high-precision component that requires exact torque specs and flat tolerances during installation. When replacing a damaged cylinder head, always ensure you:

• Inspect the cylinder block surface for flatness.

• Replace the head gasket and head bolts (many modern engines use torque-to-yield stretch bolts that cannot be reused).

• Verify part compatibility using the vehicle’s OEM Part Number or VIN (Vehicle Identification Number).
