The Audi BDX is a 2.8L naturally aspirated V6 gasoline engine from the Volkswagen-Audi Group’s EA837 series
(actual displacement: 2,773 cc; commonly referred to as the 2.8 FSI). It was produced from approximately 2006 to 2010.
It is a short-stroke version of the 3.2 FSI (such as the AUK), with a stroke reduced to 82.4 mm. It features an all-aluminum construction,
direct injection (FSI), and the Audi Valvelift System (AVS), which was used on a large scale for the first time. Primarily designed to bridge
the power gap between the 2.4 MPI and the 3.2 FSI, it delivers smooth power and good fuel economy, serving as the entry-level naturally
aspirated six-cylinder engine for the Audi A6 C6 and A8 D3. Subsequent variants included those with similar codes such as CCDA, CCEA, and CHVA.
Our products are exported to various parts of the country, and the customers we have worked with have received unanimous praise.
The company has invested over 20 million yuan in high-end remanufacturing equipment imported from abroad and a first-class
production team in the country. Our warehouse has a total area of over 8000 square meters, with scientific management and sufficient supply of goods.
| Item | Specification |
|---|---|
| Engine Code | BDX |
| Engine Family | Audi 2.8 FSI V6 |
| Displacement | 2,773cc / 2.8L |
| Cylinder Configuration | 90-degree V6 |
| Number of Cylinders | 6 |
| Valve Configuration | DOHC, 24 valves |
| Bore × Stroke | 84.5 × 82.4 mm |
| Compression Ratio | 12.0:1 |
| Maximum Power | 154kW / 210PS |
| Maximum Torque | 280Nm |
| Fuel Type | Gasoline / Petrol |
| Fuel Injection | FSI Direct Injection |
| Timing System | Timing Chain |
| Emission Standard | Euro 4 (reference configuration) |
| Cylinder Block Material | Aluminum-Silicon Alloy |
| Cylinder Head Material | Aluminum Alloy |
Specifications are based on the documented BDX engine configuration.
Actual specifications may vary according to production date and market application.
The Audi BDX 2.8L V6 FSI engine is associated with the following vehicle applications:
Audi A6 C6 (4F)
Audi A6 2.8 FSI
Audi A6 2.8 FSI quattro
Audi A6 Avant 2.8 FSI
Audi A6 Avant 2.8 FSI quattro
Reference production period: November 2006 – October 2008
Audi A8 D3 (4E)
Audi A8 2.8 FSI
Selected Audi A8 D3 2.8 FSI applications
Reference production period: August 2007 – July 2010
Important Fitment Notice
Vehicle compatibility must be confirmed by VIN, original engine code, production date and OEM part number.
The BDX engine should not automatically be considered interchangeable with BDW, AUK, BKH, CCDA or CCEA engine variants.
Main OEM reference numbers associated with the BDX 2.8L 154kW base engine include:
06E100031E
06E100031EX
06E100039MX
These numbers have different production-date and replacement conditions in parts catalog references.
Please confirm the correct OEM number using the original vehicle information and engine identification before ordering.
The listed numbers are provided for reference and do not guarantee universal interchangeability across all BDX applications.

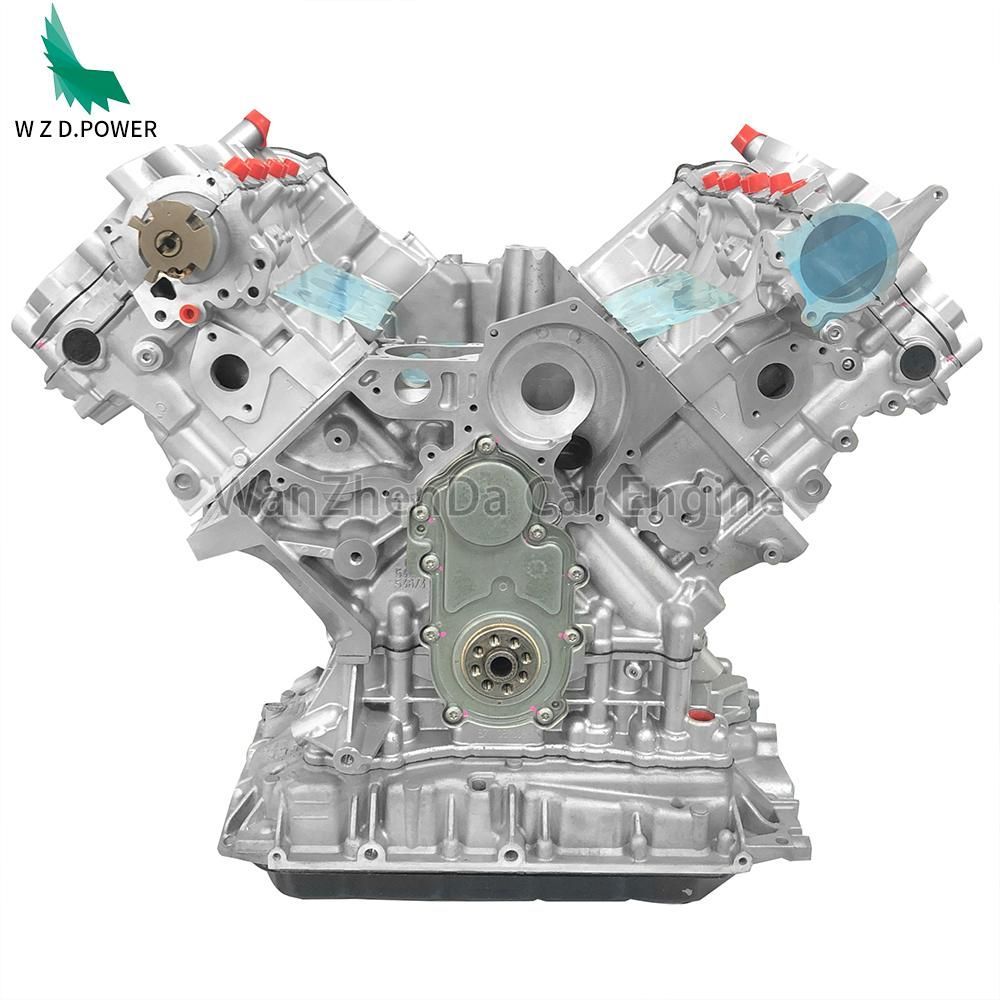

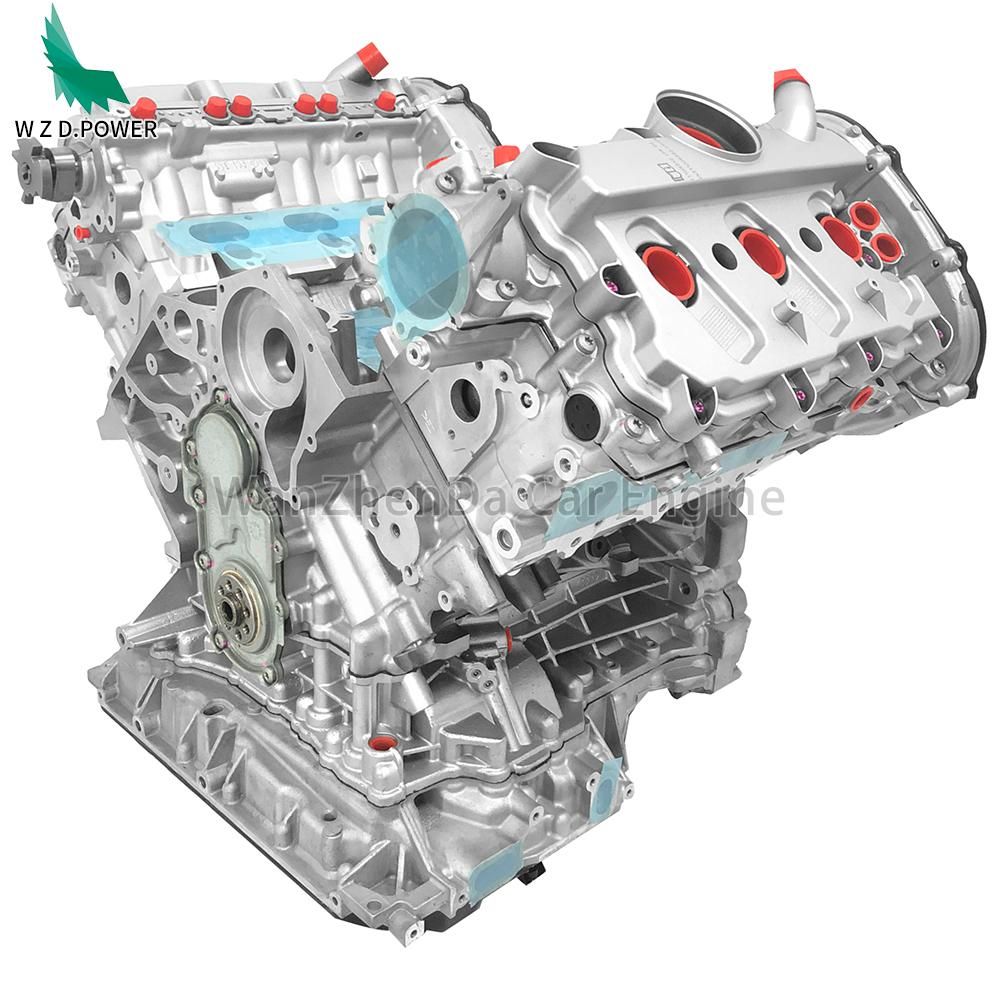

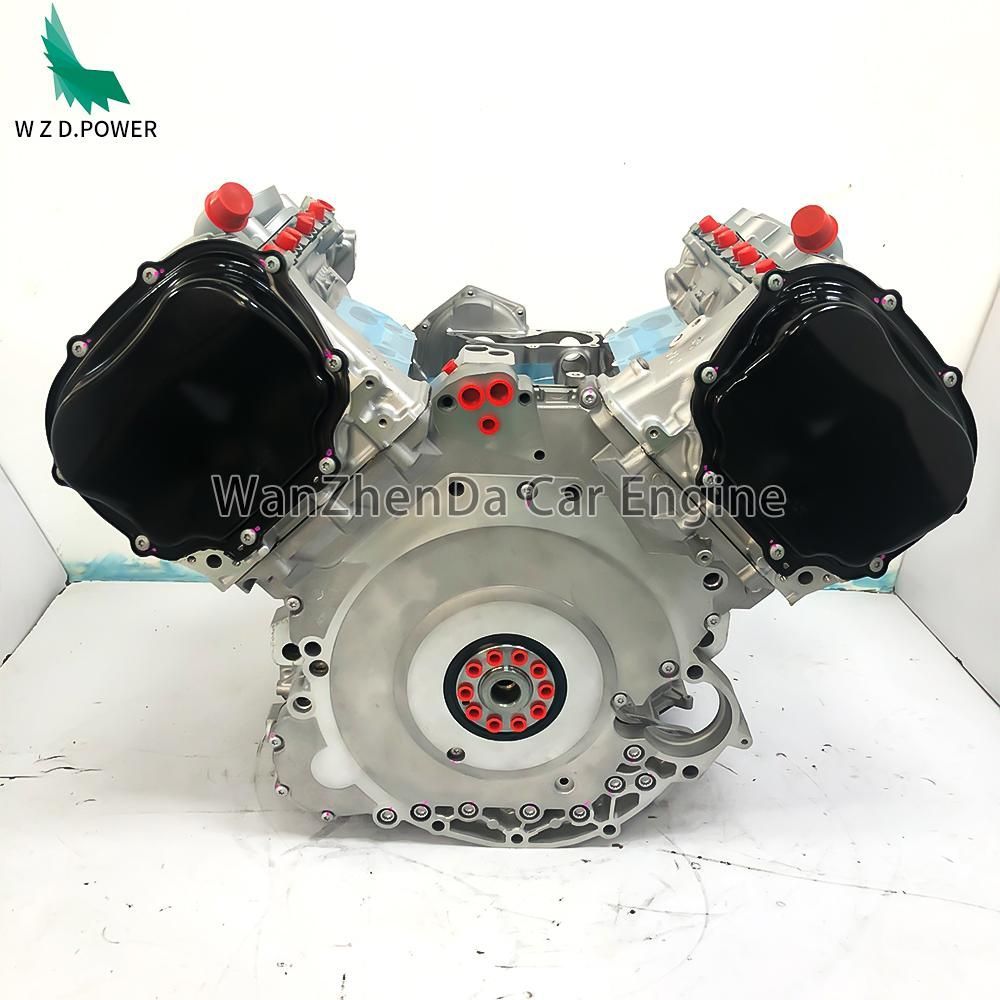

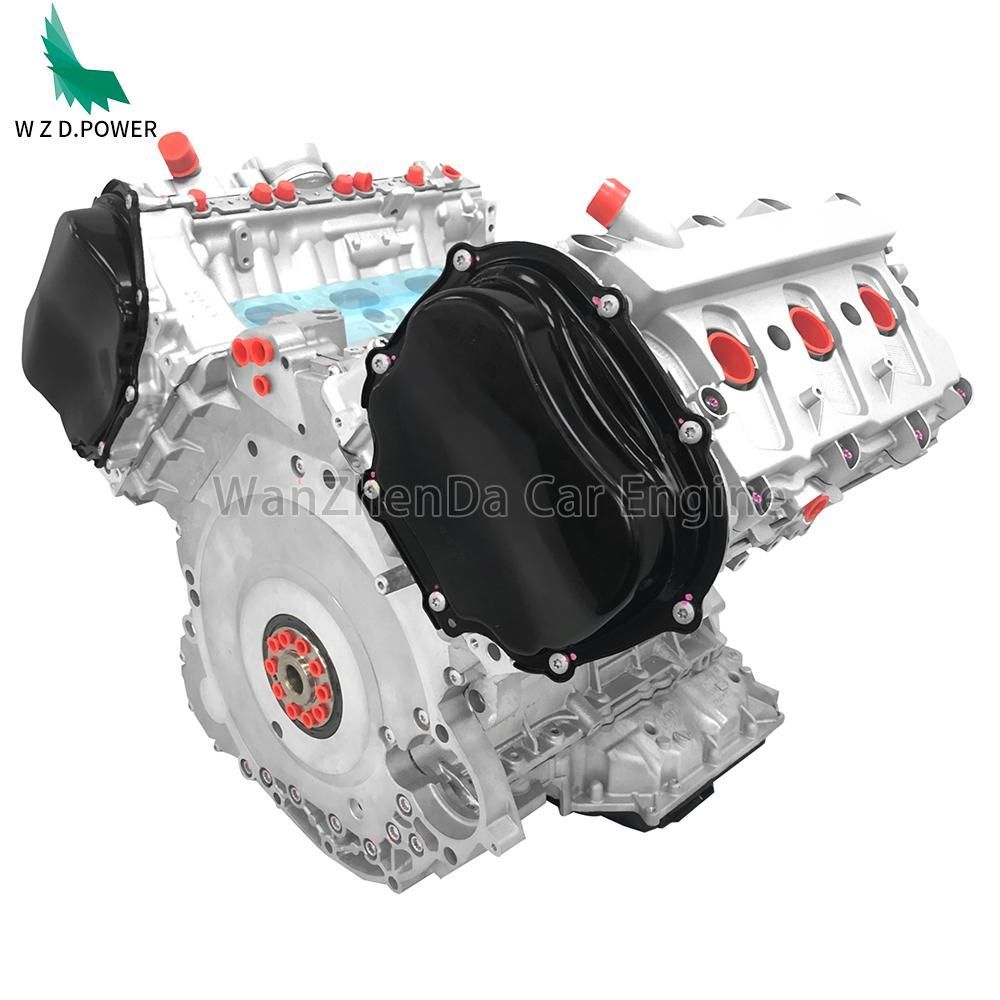

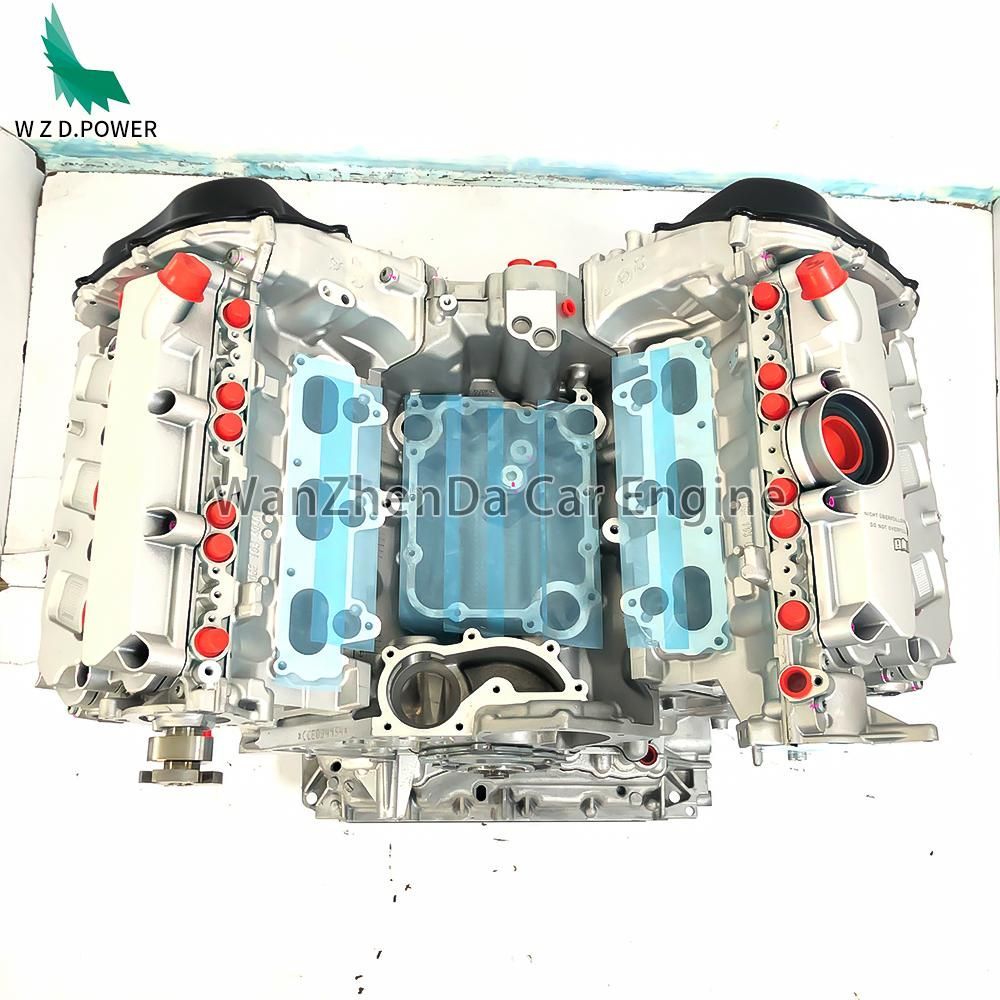

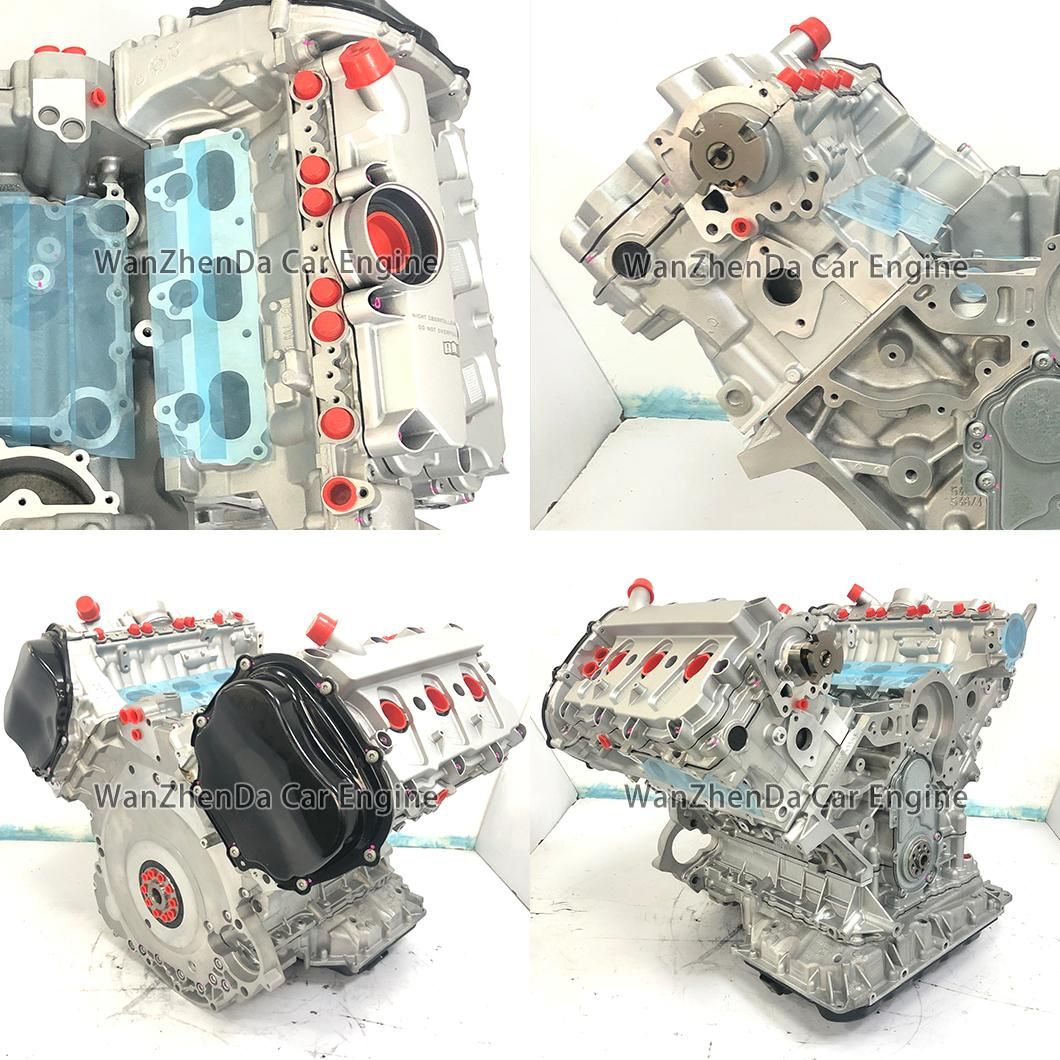

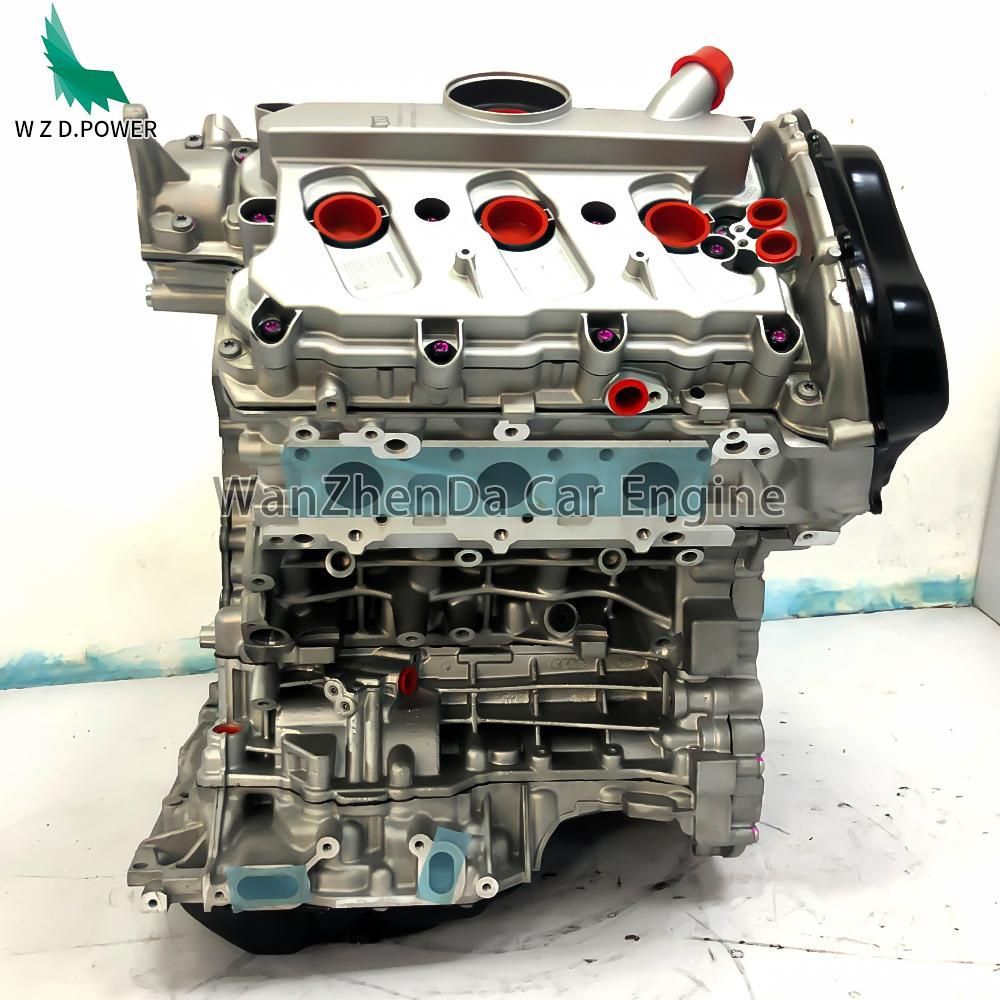

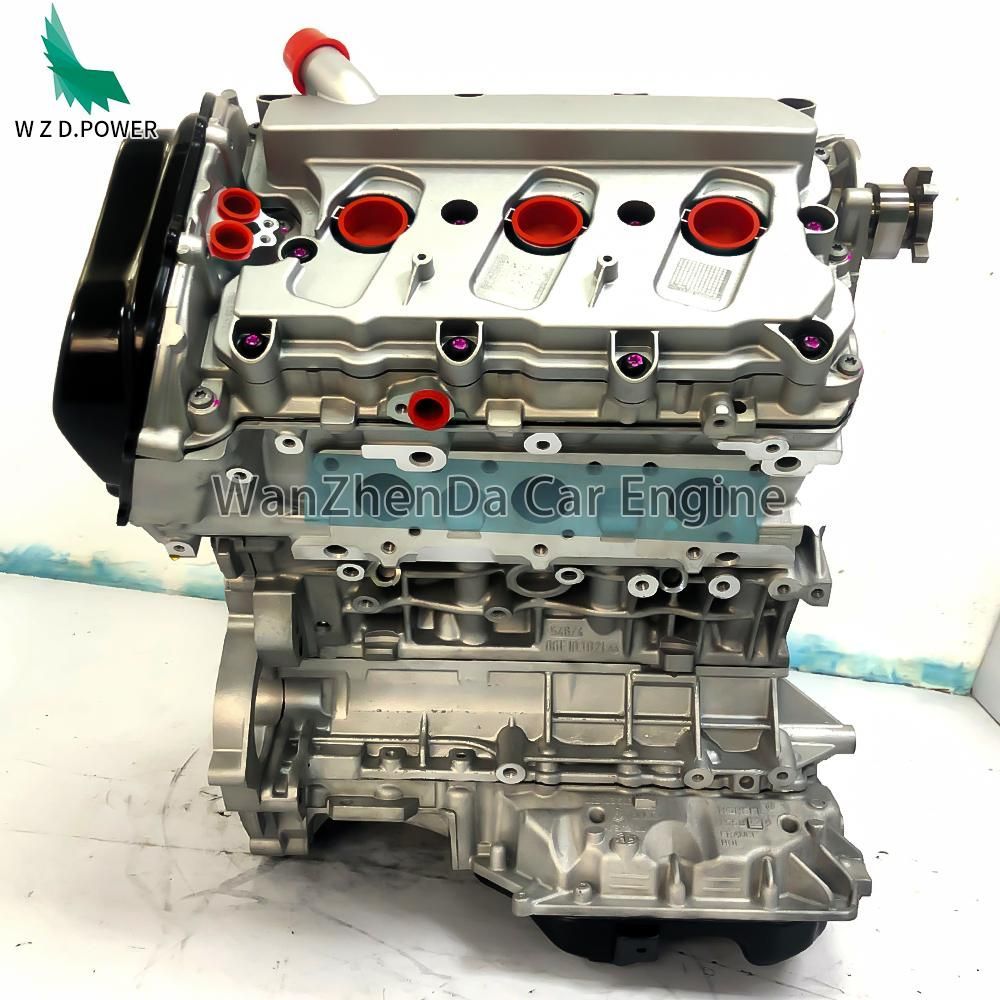

A typical Audi BDX long block configuration may include:
Engine block
Left and right cylinder heads
Crankshaft
Connecting rods
Pistons and piston rings
Camshafts
Intake and exhaust valves
Valve train components
Main bearing caps
Internal bearing components
Timing chain
The actual package contents depend on the product specification and bill of materials.
External accessories are generally excluded unless specifically stated:
ECU / Engine Control Unit
Wiring harness
Alternator
Starter motor
Air-conditioning compressor
Intake manifold
Throttle body
Fuel injectors
High-pressure fuel pump
Exhaust manifold
Cooling system accessories
Please confirm the actual product photos and included components before placing an order.
We welcome inquiries from:
Automotive engine importers
Engine wholesalers and distributors
Automotive parts dealers
Engine rebuilding companies
Professional repair workshops
Automotive aftermarket suppliers
Our B2B supply service is suitable for engine replacement projects, repair workshops
and aftermarket distribution businesses.
For bulk orders, please provide the engine code, required quantity and destination country
so that we can confirm the correct product configuration and quotation.
Q1: What is the engine code of the Audi 2.8 FSI V6 engine?
BDX is one of the engine codes used for the Audi 2.8L FSI V6 engine.
Q2: What is the displacement of the BDX engine?
The actual displacement is 2,773cc, commonly marketed as a 2.8L engine.
Q3: Is the Audi BDX engine turbocharged?
No. The BDX 2.8 FSI is a naturally aspirated gasoline engine.
Q4: Which vehicles use the Audi BDX engine?
Common applications include selected Audi A6 C6 and Audi A8 D3 2.8 FSI models.
Q5: Does the BDX engine use direct injection?
Yes. It uses Audi FSI gasoline direct injection technology.
Q6: What is the main OEM reference number?
06E100031E, 06E100031EX and 06E100039MX are important BDX base engine reference numbers.
Please verify the correct number by VIN and production date.
Q7: Does the long block include the ECU and external accessories?
A long block normally includes the main internal engine assembly. The ECU, wiring harness, alternator, starter motor,
fuel system accessories and other external components are generally excluded unless specifically stated.
Q8: How can I confirm engine compatibility?
Please provide the vehicle VIN, original engine code, production year and OEM part number.
A photo of the original engine identification label is also helpful.
Looking for an Audi BDX 2.8L V6 FSI engine long block for your replacement or distribution business?
Please provide the following information:
Engine Code: BDX
Vehicle Model: Audi A6 C6 / Audi A8 D3
Production Year
VIN or Original OEM Number
Required Quantity
Destination Country
Our sales team can assist with engine identification, OEM reference verification,
product configuration confirmation and wholesale quotation arrangements.
| Place of Origin | Guangdong, China |
| Condition | New |
| Purpose | for replace/repair |
| Type | Gas / Petrol Engine |
| Power | OEM Standards |
| Quantity (pieces) | 1 - 10 | 11 - 50 | > 50 |
| Lead time (days) | 7 | 15 | To be negotiated |
1. Our remanufactured products use accessories provided by well-known brand suppliers such as VICTORREINZ, SCHAEFFLER, KS KOLBENSCHMIDT GmbH, etc.
2. Our product quality is close to the original factory quality, but the price is only 50-60% of the original engine. We can also provide you with a one-year or 100000 kilometer warranty service for the entire machine, and professional after-sales personnel will follow up with you.
3. We have over 15 years of experience in the production and research of automotive engines, and our technical level and personnel training are very scientific and mature. Customers who have worked with us have expressed their agreement with our products and after-sales service.
4. 2018 It has achieved an annual production capacity of 2200 units and has become a major supplier of high-end engine remanufacturing and parts in China's automotive aftermarket.
5. In April 2021, T/CAAMTB passed the certification company of China Automobile Research and Huacheng. 19-2019 Certification of the management system requirements of gas vehicle parts remanufacturing enterprisesIn October 2021, he became a member of the National Green Manufacturing Technology Standardization Committee and participated in the drafting of the Technical Specification for Assembly of Remanufacturing Mechanical and Electrical Products.
