The Audi BDW is a 2.4L naturally aspirated V6 gasoline engine from the Volkswagen-Audi Group’s EA837 series, produced from 2004 to 2008.
It is the only version in the series to use **multipoint fuel injection (MPI)** rather than direct injection (FSI), and was primarily installed in pre-facelift Audi A6 C6 (4F) models.
The BDW features an all-aluminum V6 configuration (90° angle), equipped with a 24-valve DOHC system, intake-side variable valve timing,
hydraulic lifters, and a timing chain drive, all designed to prioritize smooth operation and reliability. As an entry-level V6 powertrain
for mid- to high-end sedans, it is known for its linear power delivery and low maintenance costs, though later models experienced issues
such as cylinder wall scoring and timing chain tensioner failures.
This engine belongs to the EA837 family (which also includes FSI versions such as the AUK, BDX, and CAJA) and was designed specifically for the A6 C6 platform.
Our products are exported to various parts of the country, and the customers we have worked with have received unanimous praise.
The company has invested over 20 million yuan in high-end remanufacturing equipment imported from abroad and a first-class production
team in the country. Our warehouse has a total area of over 8000 square meters, with scientific management and sufficient supply of goods.
| Specification | Details |
|---|---|
| Engine Manufacturer | Audi / Volkswagen Group |
| Engine Code | BDW |
| Engine Family | EA837 |
| Engine Type | Naturally Aspirated V6 |
| Displacement | 2393cc / 2.4L |
| Cylinder Configuration | 90-degree V6 |
| Number of Cylinders | 6 |
| Number of Valves | 24 |
| Valves Per Cylinder | 4 |
| Valve Train | DOHC |
| Fuel Type | Gasoline / Petrol |
| Fuel Injection | Multi-Point Injection (MPI) |
| Bore | 81 mm |
| Stroke | 77.4 mm |
| Compression Ratio | 10.3:1 |
| Maximum Power | 130 kW / 177 PS |
| Maximum Torque | 230 Nm |
| Timing System | Timing Chain |
| Variable Valve Timing | Intake Camshaft VVT |
| Emission Standard | Euro 4 |
| Production Period | 2004–2008 |
Specifications may vary according to production version and vehicle market.
The Audi BDW engine was primarily used in Audi A6 C6 vehicles.
Potential compatible applications include:
Audi A6 C6 / 4F:
Audi A6 2.4 Sedan
Audi A6 2.4 Avant
Audi A6 2.4 Quattro
Audi A6 Avant 2.4 Quattro
Audi A6 2.4 Multitronic
Additional Market Applications:
Audi A6L 2.4 V6, selected production versions and markets
Production years are generally associated with 2004–2008 applications, subject to market and vehicle configuration.
Although the BDW engine is associated with the Audi A6 C6 platform, compatibility must be verified before ordering.
Please provide the following information:
Vehicle VIN number
Original engine code
Original engine number
OEM part number
Vehicle production year
Photos of the original engine
Our sales team can assist with engine identification and configuration verification.
The following OEM numbers are associated with selected BDW engine assembly applications:
| OEM Reference | Description |
|---|---|
| 06E100031 | Base Engine Reference |
| 06E100031X | Exchange Engine Reference |
| 06E100012 | Engine Assembly Reference |
Short Block:
06E103011 / 06E103101
OEM references must be verified against the original engine identification and vehicle VIN.
These references should not be interpreted as universal part numbers for every long block configuration.

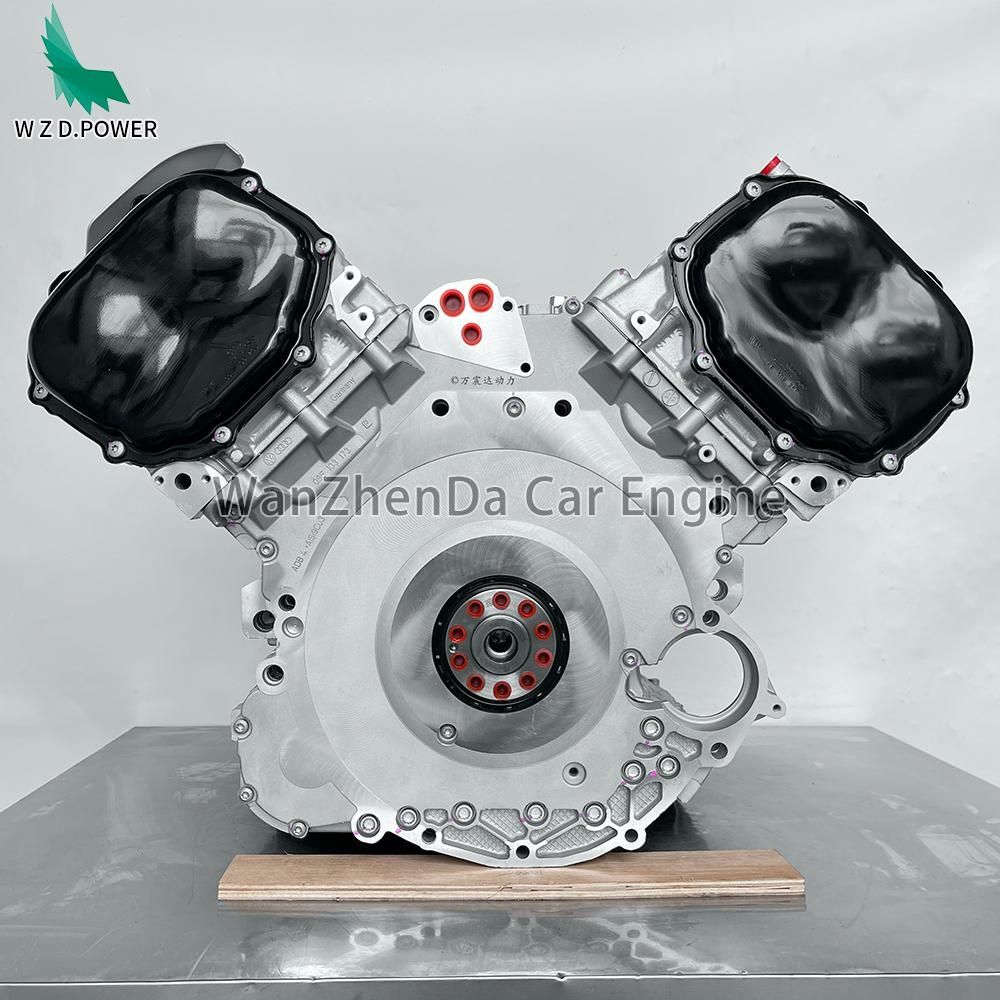

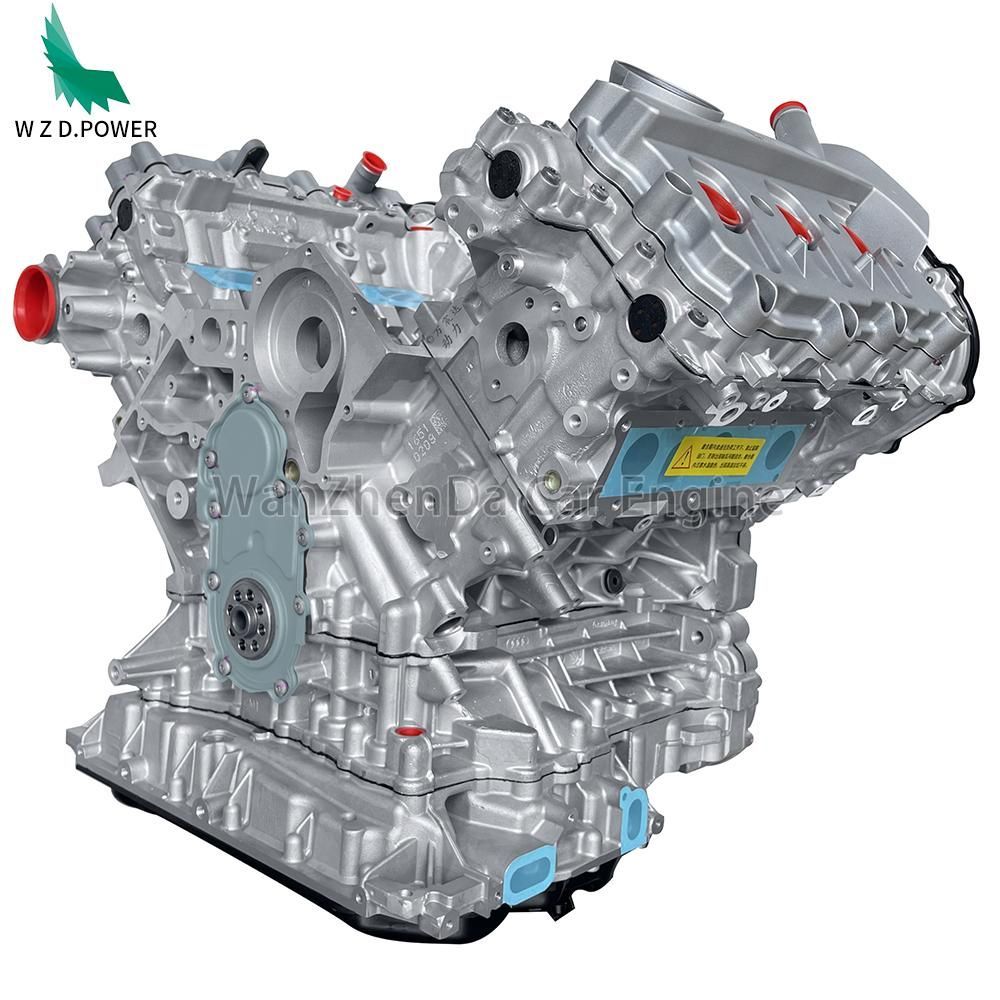

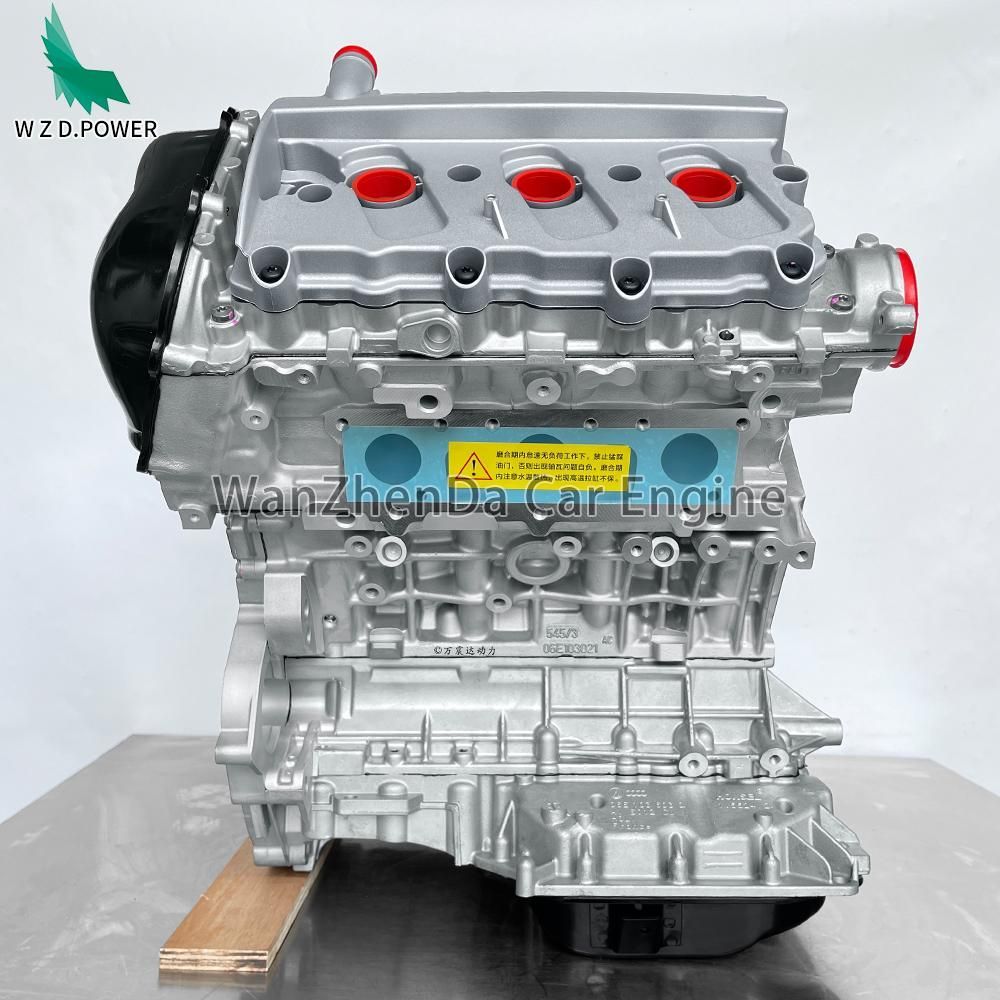

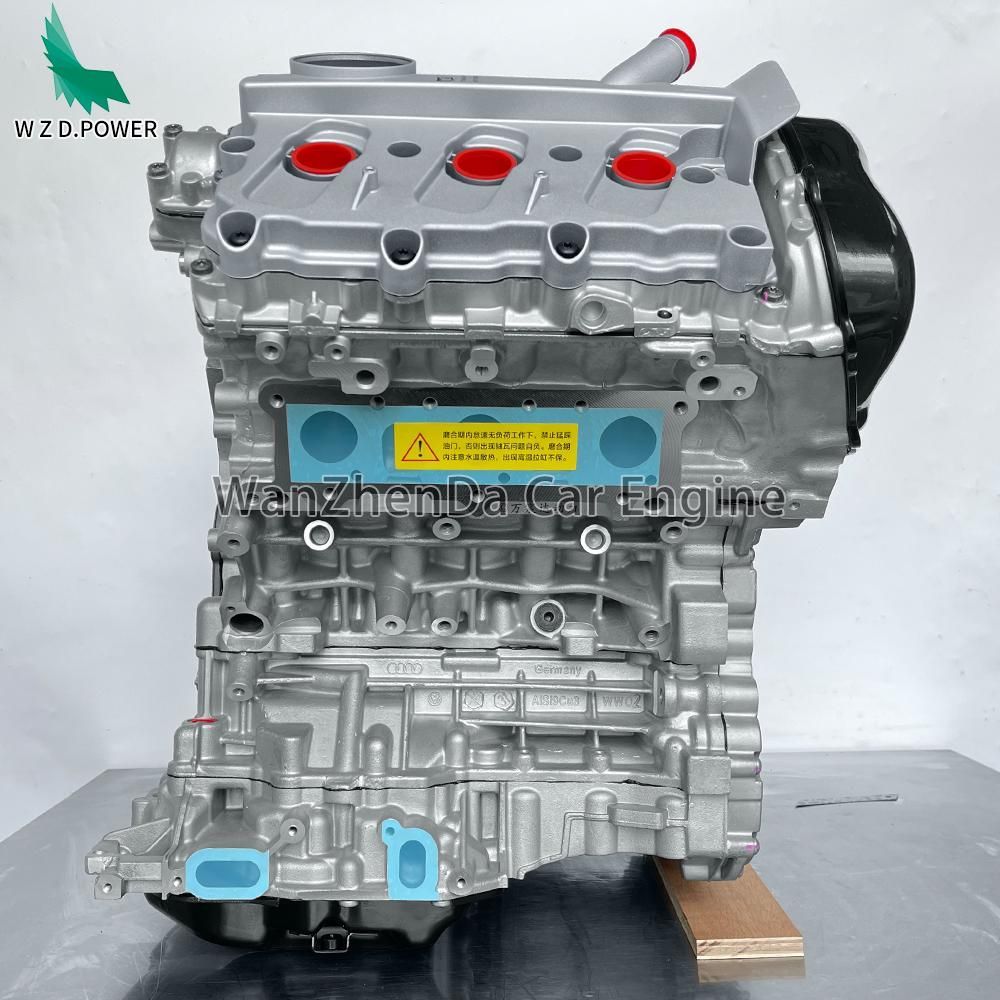

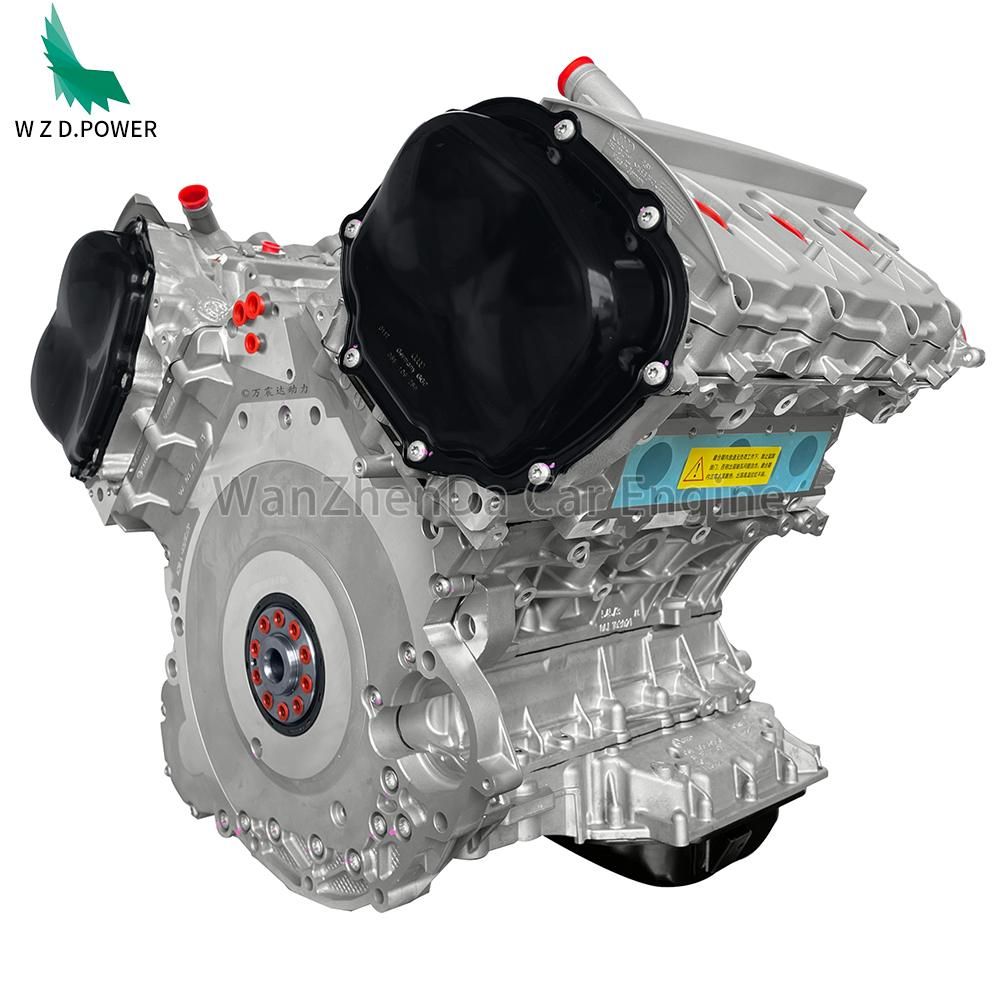

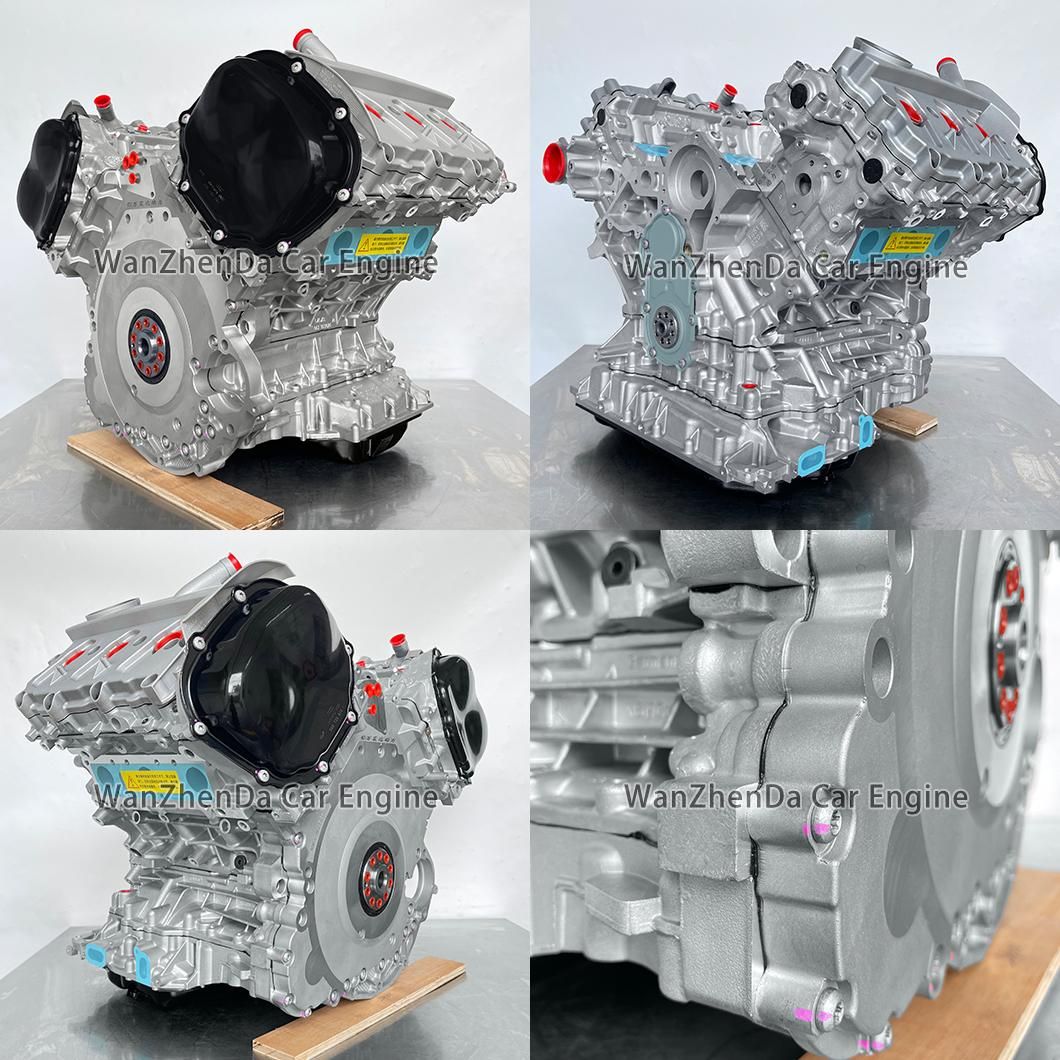

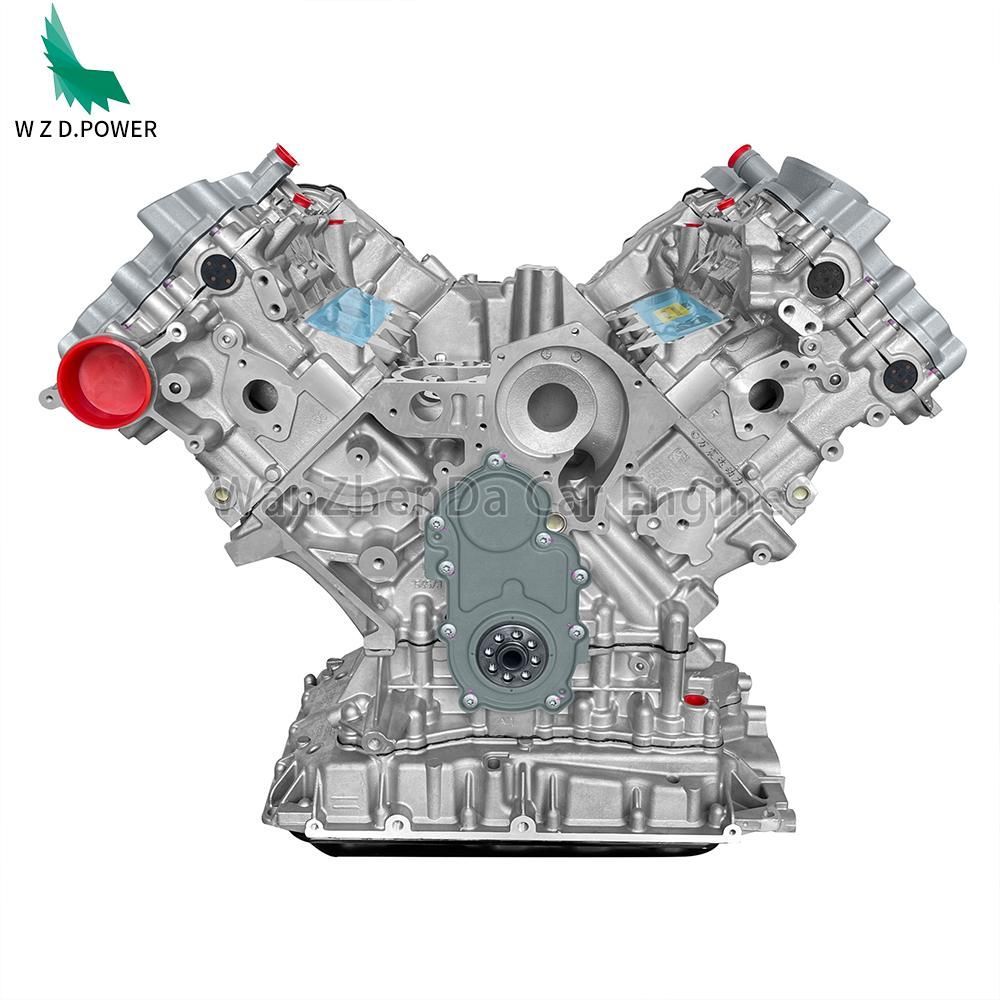

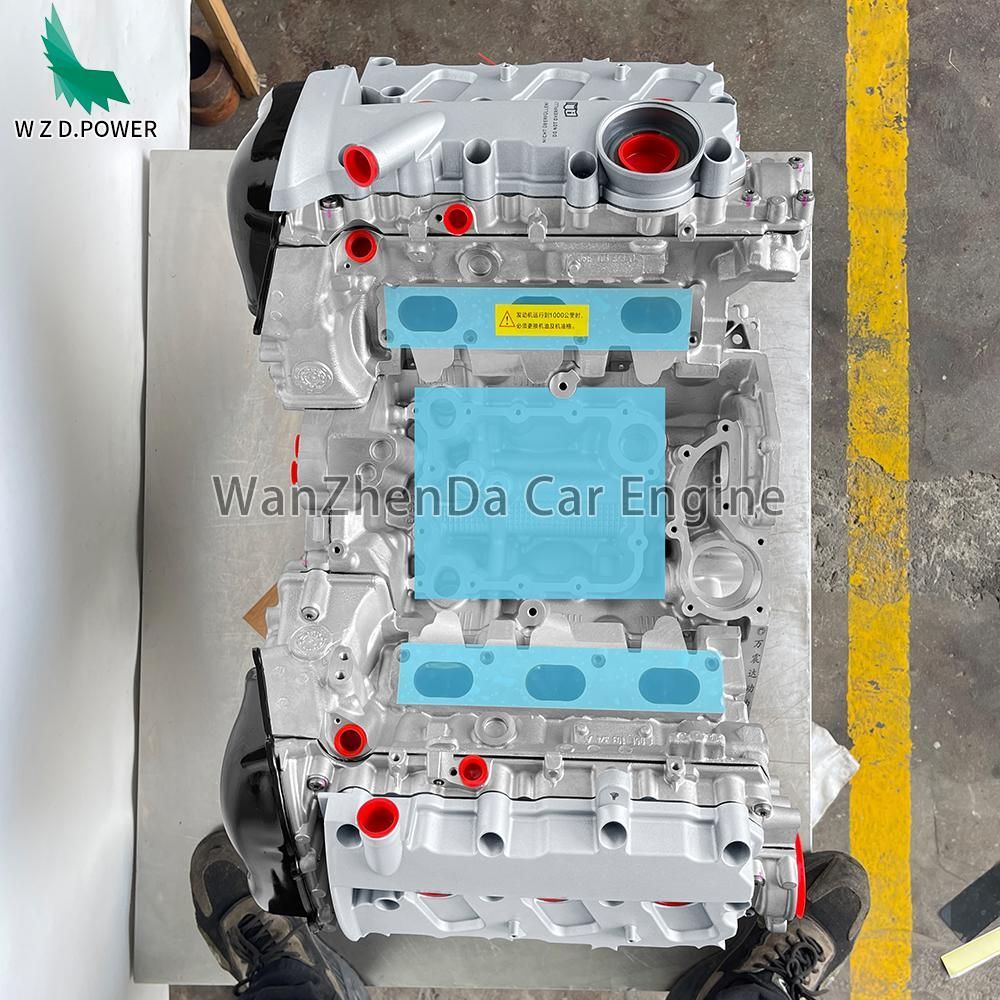

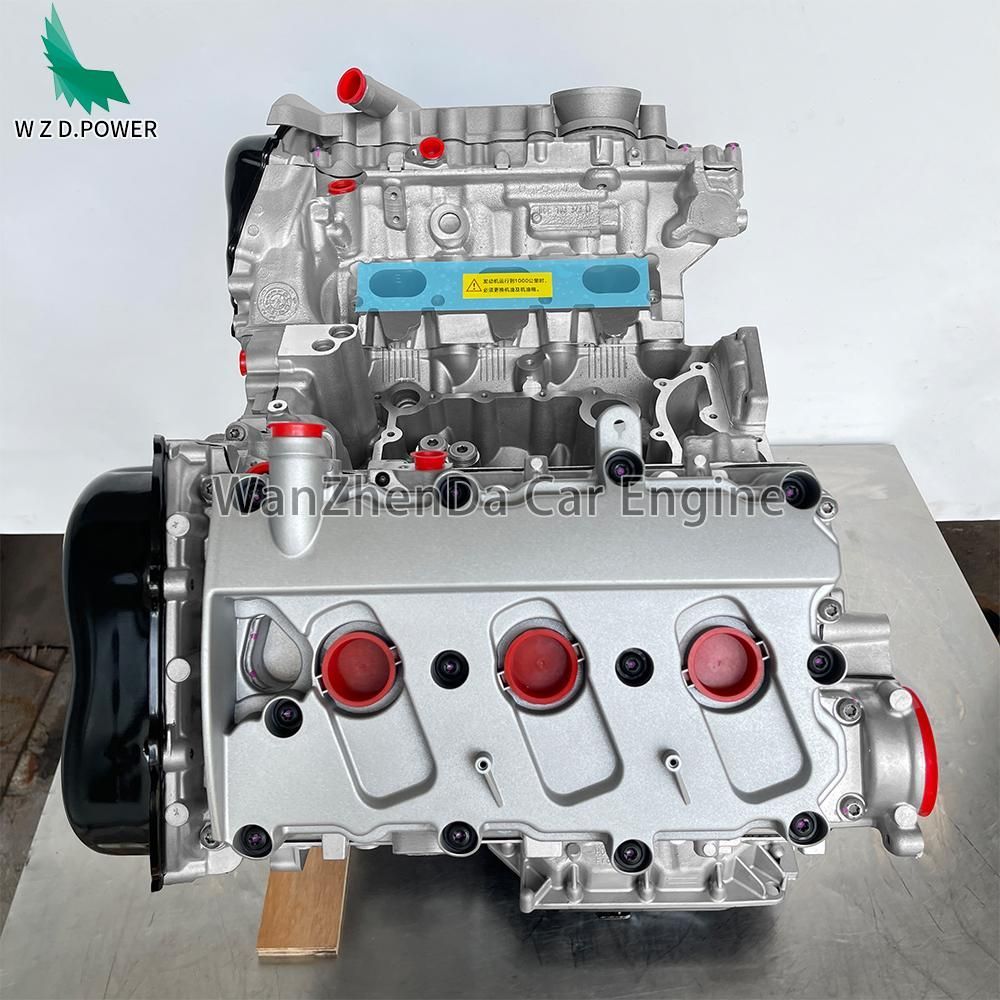

The Audi BDW long block assembly generally includes the main engine structure and internal mechanical components.
Depending on the supplied configuration, the assembly may include:
Aluminum Alloy Cylinder Block
Aluminum Alloy Cylinder Heads
Crankshaft
Connecting Rods
Pistons
Piston Rings
Camshafts
Intake and Exhaust Valves
Valve Springs
Main Bearings
Connecting Rod Bearings
Timing Chain Components
External accessories such as the alternator, starter motor, intake manifold, engine wiring harness,
ECU, and other peripheral components are not necessarily included.
Please request the actual component list and product photographs before confirming your order.
We understand the requirements of international automotive engine buyers and professional engine replacement businesses.
We provide engine replacement solutions for international automotive parts distributors, wholesalers, importers, and professional repair businesses.
Our team can assist with checking engine codes, OEM references, and vehicle compatibility before order confirmation.
We can confirm the long block component list, product condition, and supplied configuration according to the actual order requirements.
Products can be prepared with suitable export packaging for international transportation.
We support overseas customers with product inquiries, quotation preparation, order coordination, and shipping arrangements.
Q1: What is the Audi BDW 2.4 engine?
The Audi BDW is a 2.4L naturally aspirated V6 gasoline engine from the Volkswagen Group EA837 engine family.
It uses multi-point fuel injection and was primarily installed in Audi A6 C6 vehicles.
Q2: Is the BDW engine turbocharged?
No. The BDW is a naturally aspirated gasoline engine. It does not use a turbocharger.
Q3: What is the maximum power of the BDW engine?
The standard BDW version produces approximately 130 kW (177 PS) and 230 Nm of torque.
Q4: Which vehicles use the BDW engine?
The BDW engine is primarily used in Audi A6 C6 / 4F 2.4L models, including selected Sedan, Avant, and Quattro configurations.
Q5: Is the BDW engine an FSI engine?
No. The BDW uses multi-point fuel injection (MPI), rather than the direct injection system used in certain other EA837 engine variants.
Q6: What is the difference between a long block and a complete engine?
A long block generally includes the cylinder block, cylinder heads, crankshaft, pistons,
connecting rods, and core internal engine components.
A complete engine may additionally include external accessories such as the intake system,
alternator, starter motor, fuel system, and other components.
Q7: How can I confirm compatibility before purchasing?
Please provide your vehicle VIN, original engine code, OEM reference number, and photographs of the original engine.
Our team can help verify the correct engine configuration.
Q8: Can you supply BDW engines for wholesale customers?
Wholesale inquiries are welcome. Availability, order quantities, pricing, and delivery schedules
can be discussed according to actual inventory and production arrangements.
Looking for a reliable Audi BDW 2.4L V6 MPI engine long block supplier?
We welcome inquiries from:
Automotive Engine Distributors
Wholesale Auto Parts Importers
Engine Rebuilding Companies
Automotive Repair Workshops
International Engine Replacement Businesses
Contact us for:
Product Specifications
OEM Number Verification
Engine Compatibility Confirmation
Wholesale Quotations
Product Availability
Export Packaging and Shipping
Send us your original engine code or vehicle VIN to confirm compatibility and request a quotation.
| Place of Origin | Guangdong, China |
| Condition | New |
| Purpose | for replace/repair |
| Type | Gas / Petrol Engine |
| Power | OEM Standards |
| Quantity (pieces) | 1 - 10 | 11 - 50 | > 50 |
| Lead time (days) | 7 | 15 | To be negotiated |
1. Our remanufactured products use accessories provided by well-known brand suppliers such as VICTORREINZ, SCHAEFFLER, KS KOLBENSCHMIDT GmbH, etc.
2. Our product quality is close to the original factory quality, but the price is only 50-60% of the original engine. We can also provide you with a one-year or 100000 kilometer warranty service for the entire machine, and professional after-sales personnel will follow up with you.
3. We have over 15 years of experience in the production and research of automotive engines, and our technical level and personnel training are very scientific and mature. Customers who have worked with us have expressed their agreement with our products and after-sales service.
4. 2018 It has achieved an annual production capacity of 2200 units and has become a major supplier of high-end engine remanufacturing and parts in China's automotive aftermarket.
5. In April 2021, T/CAAMTB passed the certification company of China Automobile Research and Huacheng. 19-2019 Certification of the management system requirements of gas vehicle parts remanufacturing enterprisesIn October 2021, he became a member of the National Green Manufacturing Technology Standardization Committee and participated in the drafting of the Technical Specification for Assembly of Remanufacturing Mechanical and Electrical Products.
