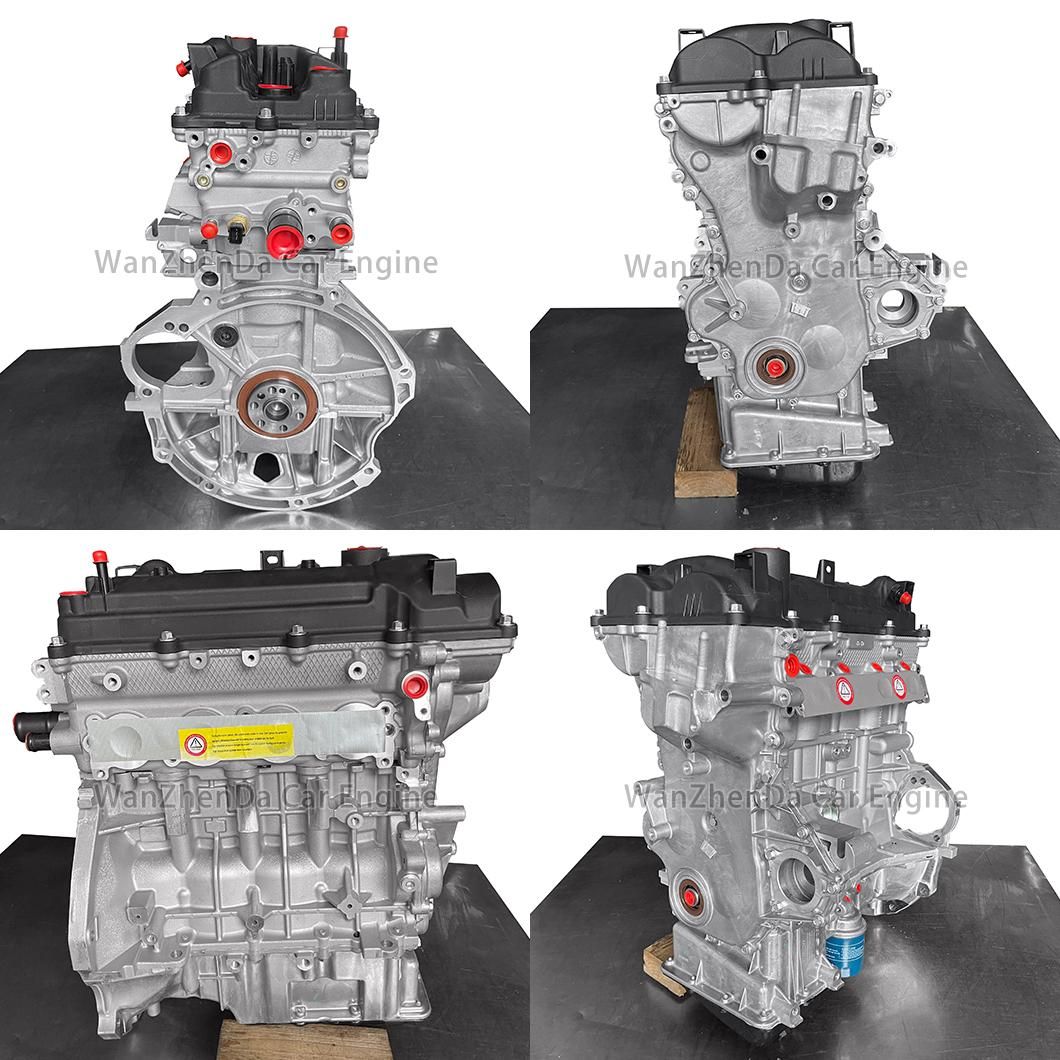

G4LC 1.4L Engine Long Block Assembly 21020-04000 for Hyundai Accent i20 i30 Kia Rio Stonic

The G4LC is a 1.4-liter inline-four naturally aspirated gasoline engine from the Hyundai-Kia Group’s Kappa series.

The engine was officially launched in 2014 and first debuted in the second-generation Hyundai i20; it has since been widely

used in Hyundai and Kia compact models. It features an all-aluminum block and cylinder head, a timing chain drive, Dual Continuously

Variable Valve Timing (Dual CVVT), and Variable Intake Manifold (VIS) technology, and is equipped with hydraulic tappets.

Compared to the previous-generation Gamma series engines, the G4LC offers improvements in fuel economy, emissions,

and reliability, and meets Euro 5 and Euro 6 standards.


Description

Our products are exported to various parts of the country, and the customers we have worked with have received unanimous praise.

The company has invested over 20 million yuan in high-end remanufacturing equipment imported from abroad and a first-class production

team in the country. Our warehouse has a total area of over 8000 square meters, with scientific management and sufficient supply of goods.

G4LC 1.4L Engine Long Block Assembly 21020-04000 for Hyundai Accent i20 i30 Kia Rio Stonic

Technical Specifications

ItemSpecification
Engine BrandHyundai / Kia
Engine CodeG4LC
Engine FamilyKappa
Displacement1,368cc / 1.4L
Engine ConfigurationInline 4-Cylinder
Cylinder HeadDOHC 16-Valve
Fuel TypePetrol / Gasoline
Fuel InjectionMulti-Point Fuel Injection (MPI)
AspirationNaturally Aspirated
Bore × Stroke72.0 × 84.0 mm
Compression RatioApprox. 10.5:1
Maximum PowerApprox. 70–74 kW / 95–100 PS
Maximum TorqueApprox. 132–137 Nm
Cylinder Block MaterialAluminum Alloy
Cylinder Head MaterialAluminum Alloy

Specifications may vary depending on the production year, vehicle application, emissions configuration

and destination market. Please verify the actual engine specification before purchase.

Vehicle Applications

The G4LC engine has been used in selected Hyundai and Kia models, including the following applications.

Hyundai Applications

  • Hyundai i20 GB – selected 1.4 MPI versions

  • Hyundai i20 BC3 / BI3 – selected market versions

  • Hyundai i30 GD – selected 1.4 MPI versions

  • Hyundai i30 PD / PDE – selected market versions

  • Hyundai Accent RB – selected 1.4L versions

  • Hyundai Accent HC / YC – selected market versions

  • Hyundai Solaris HC – selected 1.4L versions

  • Hyundai Reina CB – selected versions

  • Hyundai Celesta ID – selected versions

  • Hyundai Bayon BC3 – selected market versions

Kia Applications

  • Kia Rio UB – selected 1.4L versions

  • Kia Rio FB / YB – selected 1.4 MPI versions

  • Kia Ceed JD – selected versions

  • Kia Ceed CD – selected versions

  • Kia Pegas AB – selected versions

  • Kia Soluto AB – selected versions

  • Kia Stonic YB / KX1 – selected versions

  • Kia K2 – selected market versions

  • Kia KX Cross FB – selected versions

Vehicle applications are provided for reference only. The same vehicle model may have different engine options

depending on the market and production year. Please confirm the engine code and VIN before ordering.

OE / OEM Reference Numbers

The following numbers may be used as reference points when checking G4LC engine applications:

  • 21020-04000 / 21101-03E00

  • 1B03103U01 / 1B03103U00

  • Z548103Z00 /  Z147103Z00

  • 1B05103U00 / 10ZK103X00

  • 77AQ103F00 / 73AQ103F00

  • 83AQ103F00

  • 1D0512BU00

These references may correspond to different engine assembly or sub-engine assembly catalog applications.

They should not be treated as universal interchangeable long block numbers.

Please provide the original OE number, VIN or engine identification details so that the correct application can be checked.


Key attributes
Industry-specific Attributes

Long Block Configuration

A typical G4LC long block assembly may include the main engine structure and internal mechanical components, such as:

  • Cylinder block

  • Cylinder head

  • Crankshaft

  • Connecting rods

  • Pistons

  • Camshafts

  • Valves

  • Valve train components

  • Timing chain components

  • Oil pan

  • Oil Pump

External accessories and attachments are not automatically included unless specifically confirmed.

These may include:

  • Intake manifold

  • Exhaust manifold

  • Fuel rail and injectors

  • Throttle body

  • Ignition coils

  • Alternator

  • Starter motor

  • Air-conditioning compressor

  • ECU and wiring harness

  • Engine sensors

Actual long block configuration is subject to the product photos, confirmed quotation and packing list.

B2B Wholesale Supply

We support business customers looking for Hyundai Kia G4LC 1.4L engine long block assemblies.

Our target customers include:

  • Automotive engine importers

  • Engine rebuilding companies

  • Auto parts wholesalers

  • Automotive distributors

  • Vehicle repair workshops

  • Regional engine replacement suppliers

For a wholesale inquiry, please provide:

  1. Engine model: G4LC

  2. Vehicle make and model

  3. Vehicle production year

  4. VIN or original engine number

  5. Original OE part number, if available

  6. Required quantity

  7. Destination country or port

This information helps us check the engine application and prepare an appropriate quotation.

Frequently Asked Questions

1. What is the displacement of the Hyundai Kia G4LC engine?

The G4LC is a 1.4L gasoline engine with a displacement of 1,368cc.

2. Is the G4LC an MPI or GDI engine?

The G4LC is an MPI multi-point fuel injection engine.

3. Does the G4LC use a timing belt or timing chain?

The G4LC uses a timing chain drive.

4. Is the G4LC naturally aspirated?

Yes. The G4LC is a naturally aspirated gasoline engine, not a turbocharged engine.

5. Which vehicles use the G4LC engine?

Selected Hyundai i20, i30, Accent, Solaris and Reina models, as well as Kia Rio, Ceed, Pegas, Soluto

and Stonic models, may use the G4LC engine. Exact compatibility depends on the market, year and vehicle configuration.

6. Is the G4LC interchangeable with the G4LA, G4LD or G4FC?

Not automatically. These are different engine codes with different specifications and configurations.

Please verify the original engine code and OE reference before ordering.

7. Does the long block include the alternator and starter motor?

Not necessarily. External accessories are not assumed to be included.

Please confirm the actual product contents before placing an order.

8. How can I confirm the correct G4LC engine for my vehicle?

Please provide the vehicle VIN, engine code, production year and original OE number.

Photos of the original engine and its identification label can also help with compatibility checking.

Request a Wholesale Quotation

Looking for a Hyundai Kia G4LC 1.4L Kappa MPI petrol engine long block?

Contact us with your engine code, vehicle details, OE reference and required quantity.

Our sales team can help check the engine application and provide a quotation for your engine replacement or wholesale requirements.

Contact us today for G4LC engine availability, compatibility confirmation and B2B pricing.


Industry-specific Attributes
Place of OriginGuangdong, China
ConditionNew
Purposefor replace/repair
TypeGas / Petrol Engine
PowerOEM Standards


Lead time
Quantity (pieces)1 - 1011 - 50> 50
Lead time (days)715To be negotiated
Our Strengths

1. Our remanufactured products use accessories provided by well-known brand suppliers such as VICTORREINZ, SCHAEFFLER, KS KOLBENSCHMIDT GmbH, etc.


2. Our product quality is close to the original factory quality, but the price is only 50-60% of the original engine. We can also provide you with a one-year or 100000 kilometer warranty service for the entire machine, and professional after-sales personnel will follow up with you.


3. We have over 15 years of experience in the production and research of automotive engines, and our technical level and personnel training are very scientific and mature. Customers who have worked with us have expressed their agreement with our products and after-sales service.


4. 2018 It has achieved an annual production capacity of 2200 units and has become a major supplier of high-end engine remanufacturing and parts in China's automotive aftermarket.


5. In April 2021, T/CAAMTB passed the certification company of China Automobile Research and Huacheng. 19-2019 Certification of the management system requirements of gas vehicle parts remanufacturing enterprisesIn October 2021, he became a member of the National Green Manufacturing Technology Standardization Committee and participated in the drafting of the Technical Specification for Assembly of Remanufacturing Mechanical and Electrical Products.

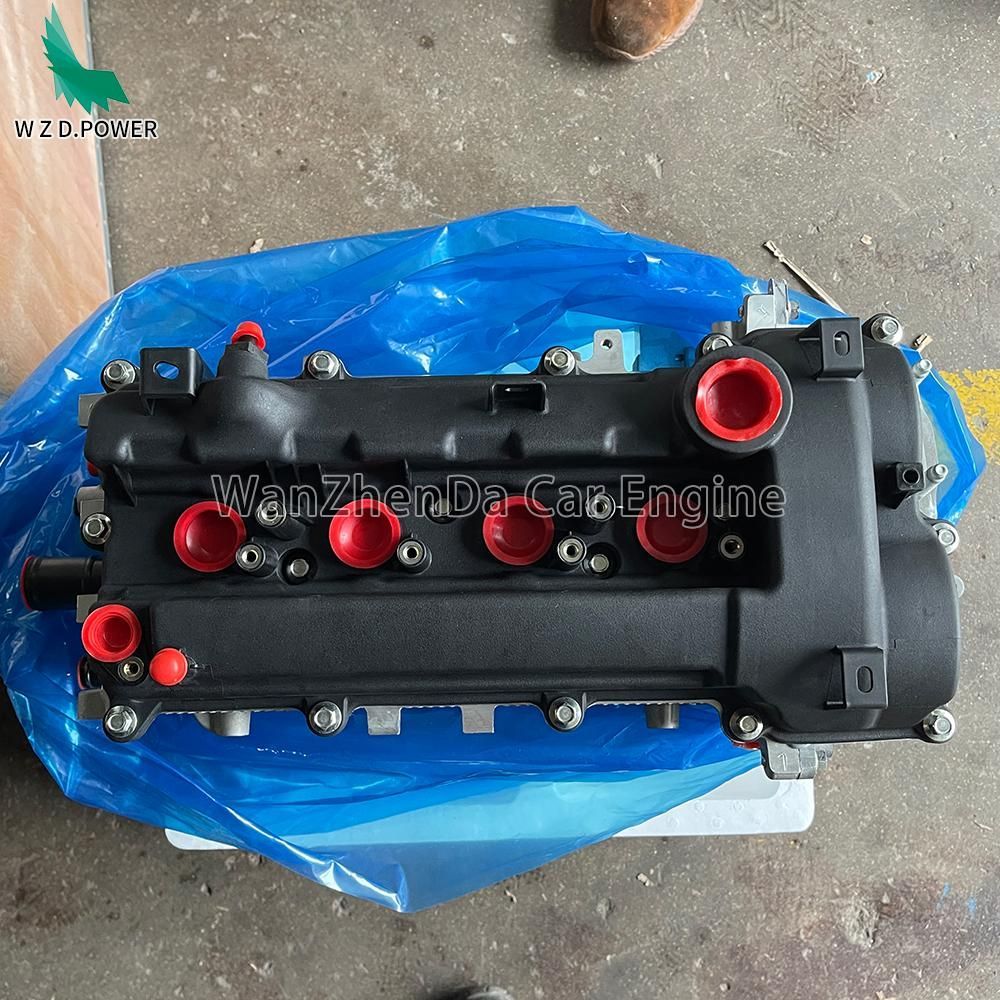

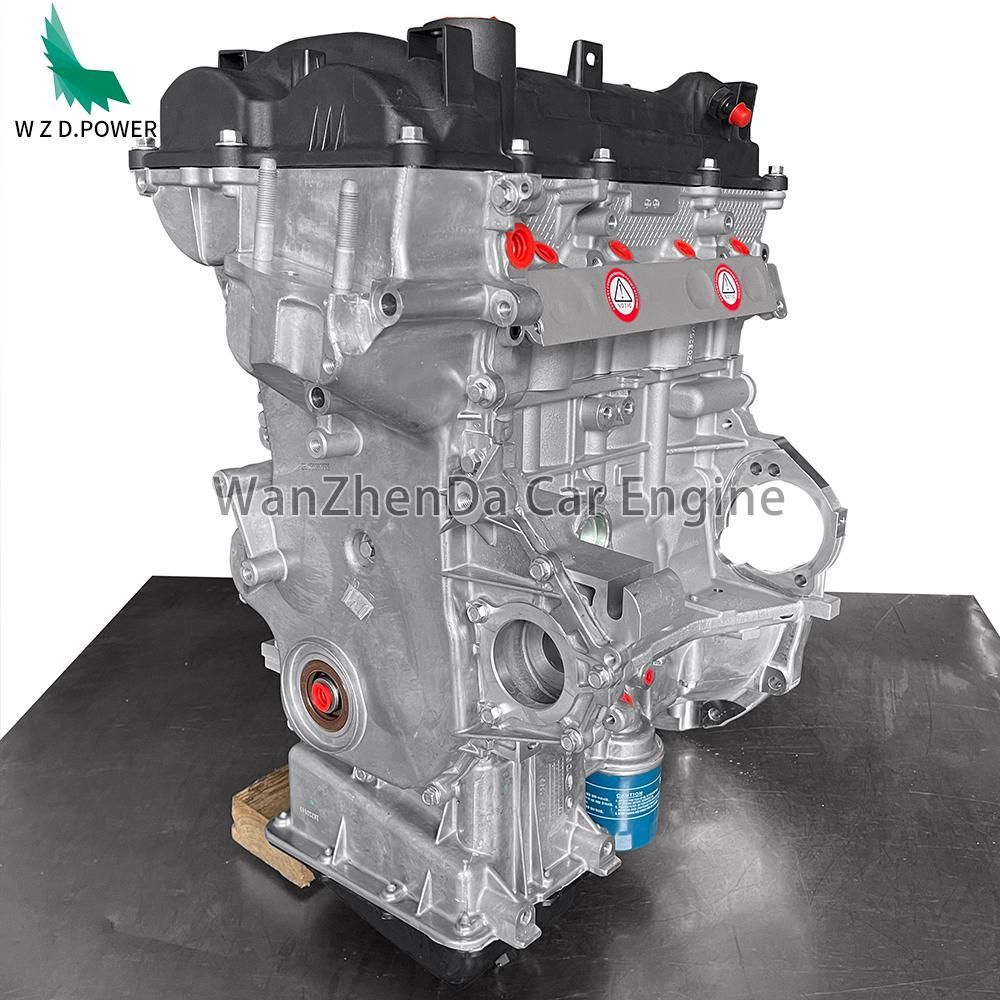

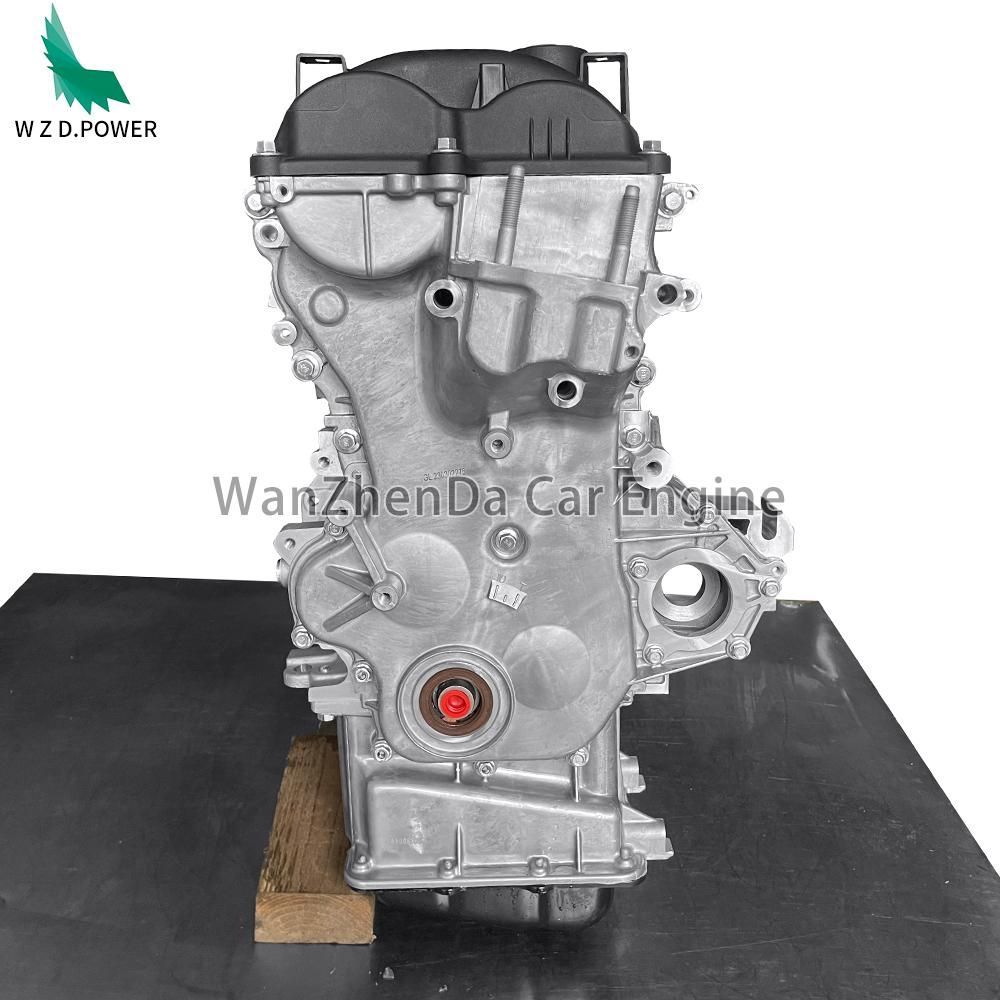

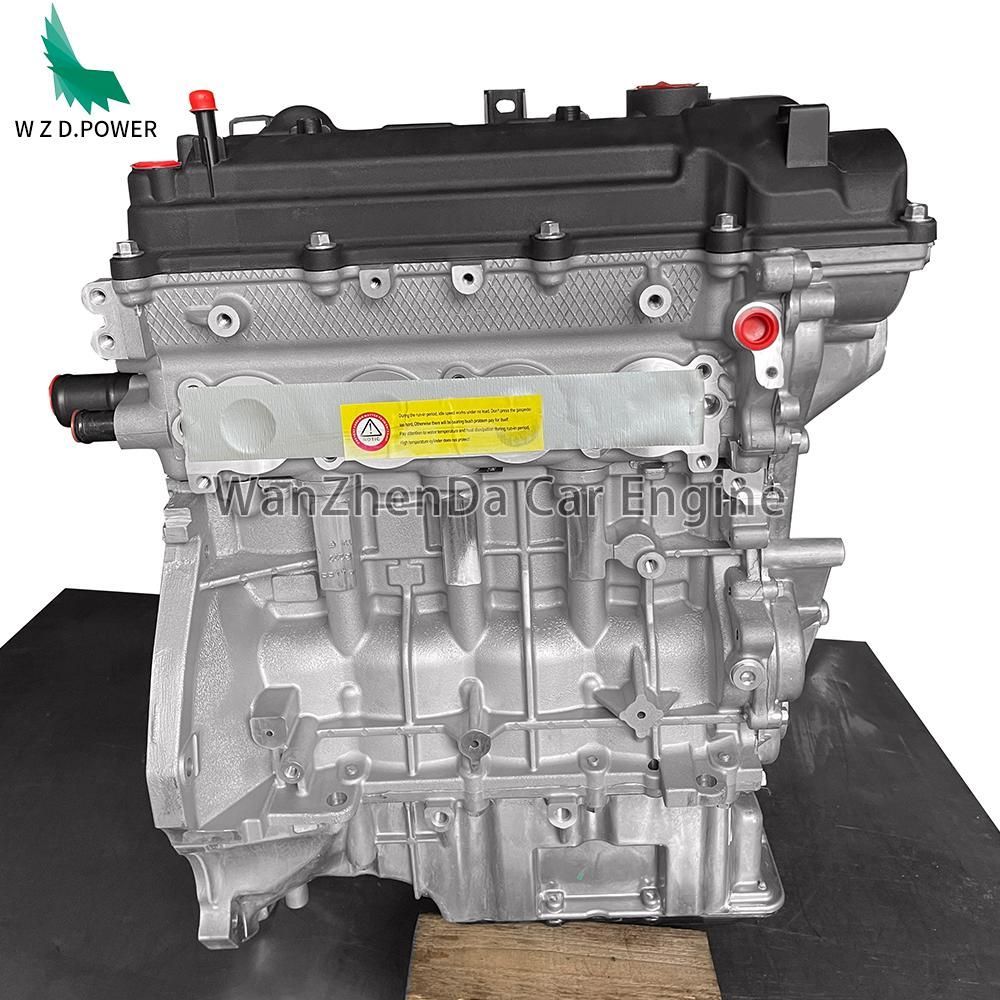

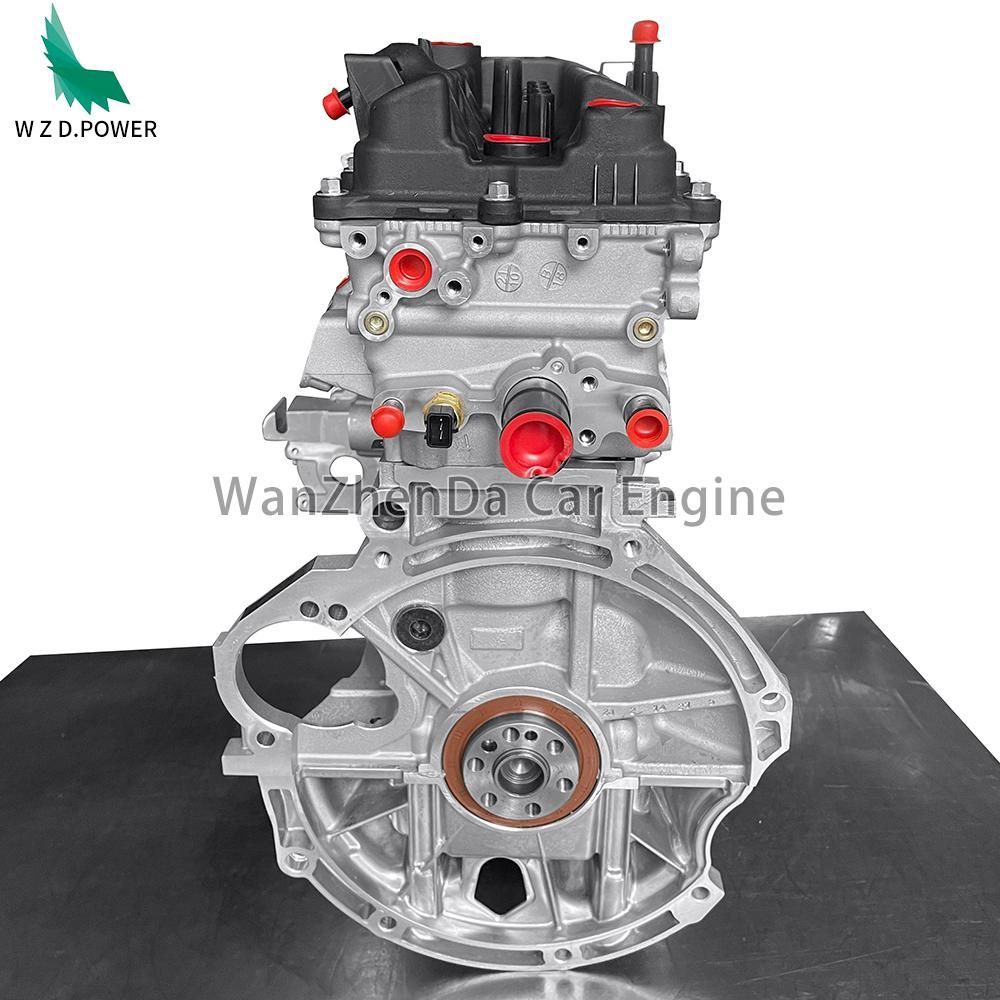

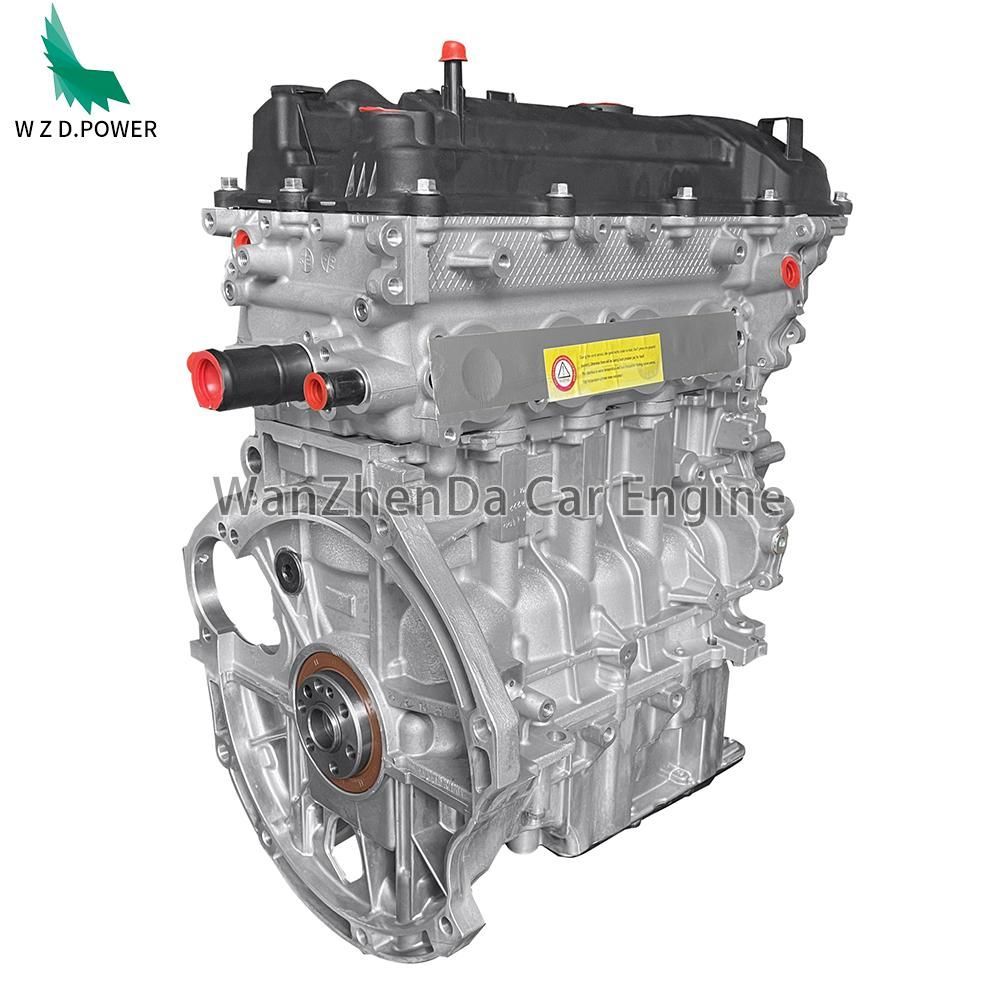

1.4 G4LC Auto Engine Motor Long Block Engine Assembly 1.4L G4LC For Hyundai Verna Kia K2 Stonic Engine

1.4 G4LC Auto Engine Motor Long Block Engine Assembly 1.4L G4LC For Hyundai Verna Kia K2 Stonic Engine

1.4 G4LC Auto Engine Motor Long Block Engine Assembly 1.4L G4LC For Hyundai Verna Kia K2 Stonic Engine
