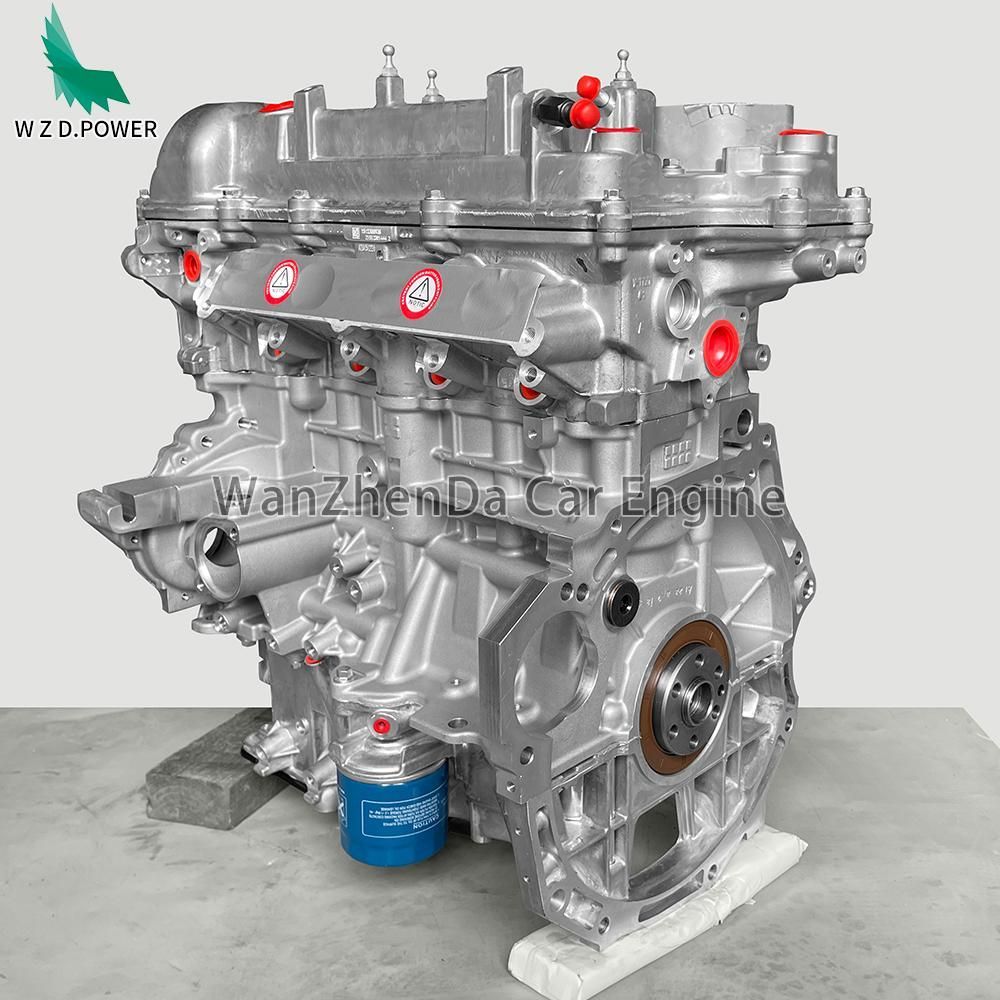

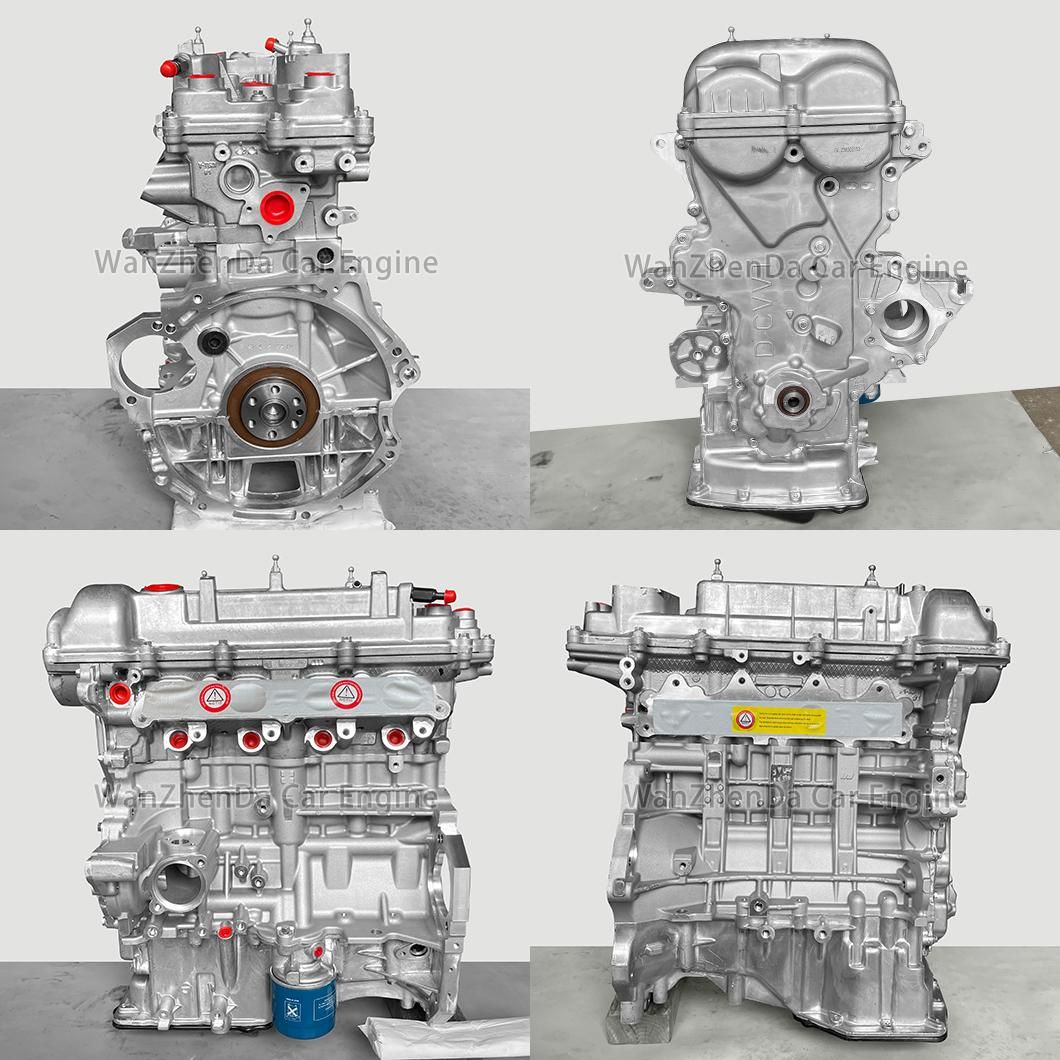

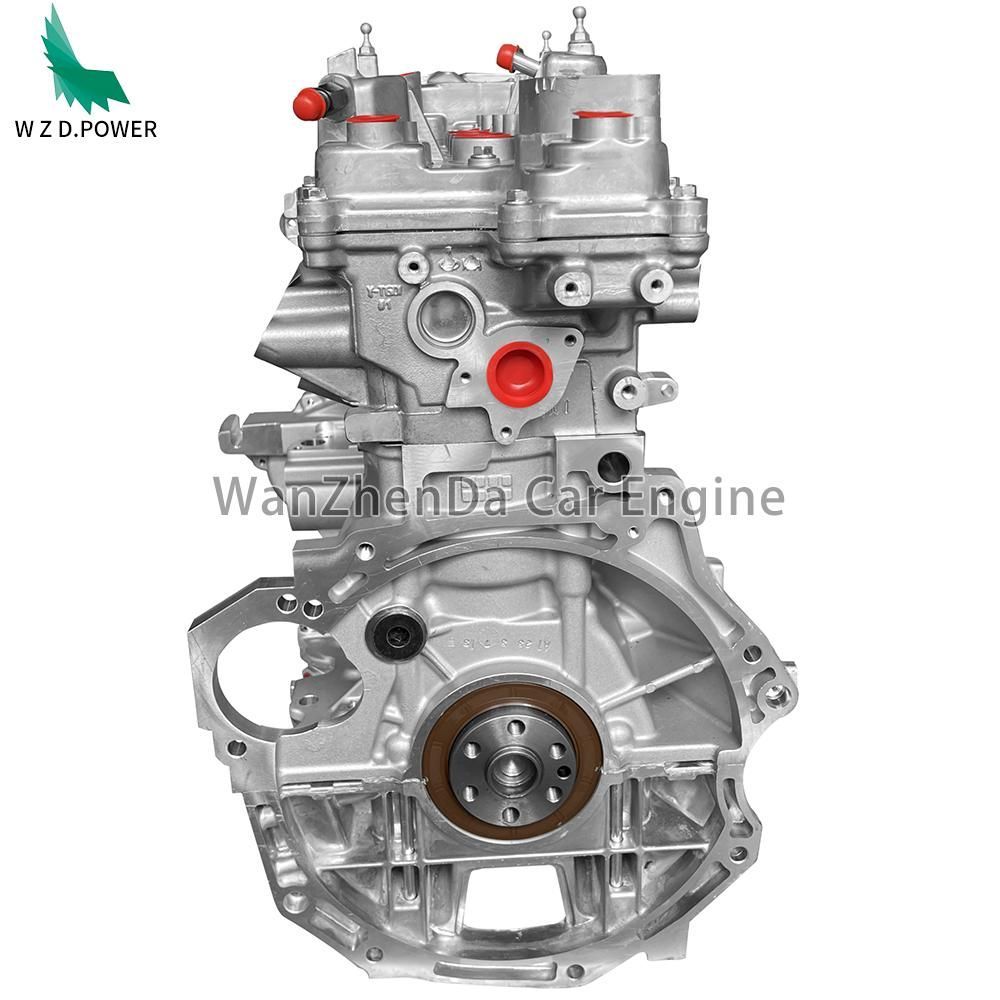

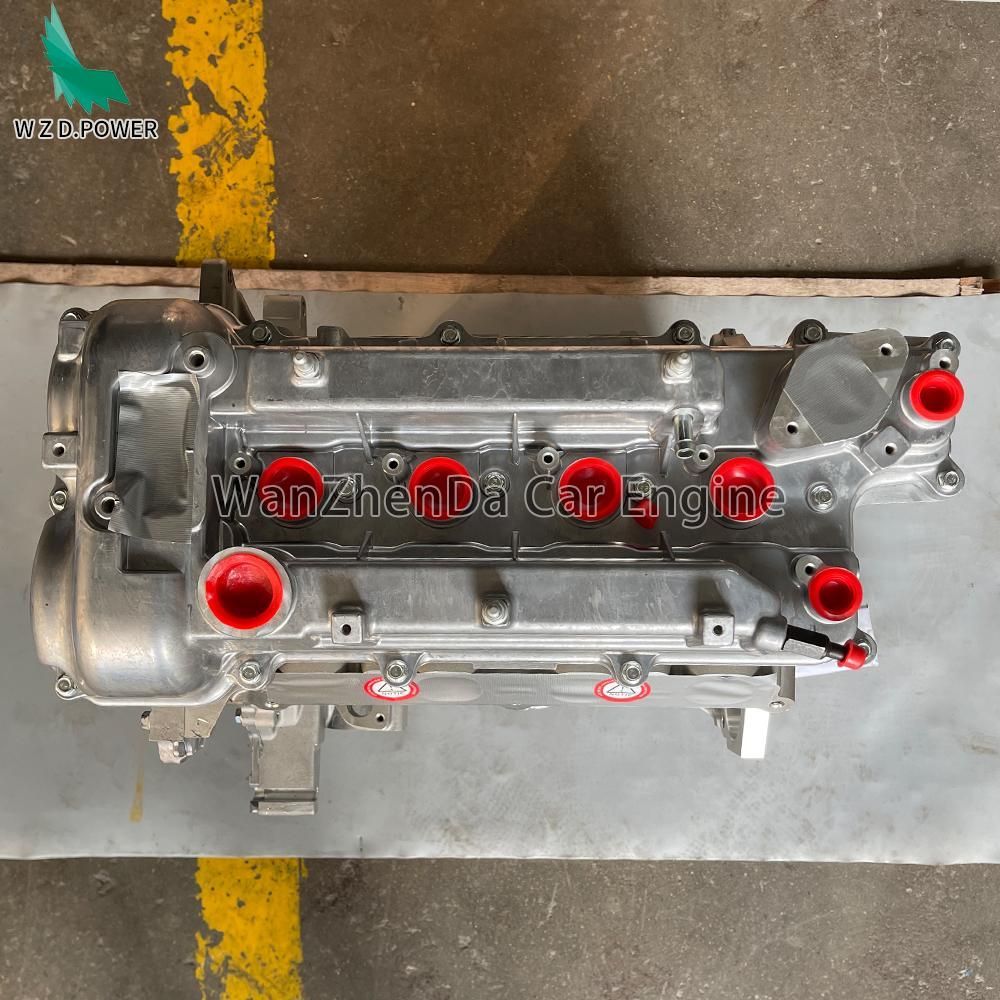

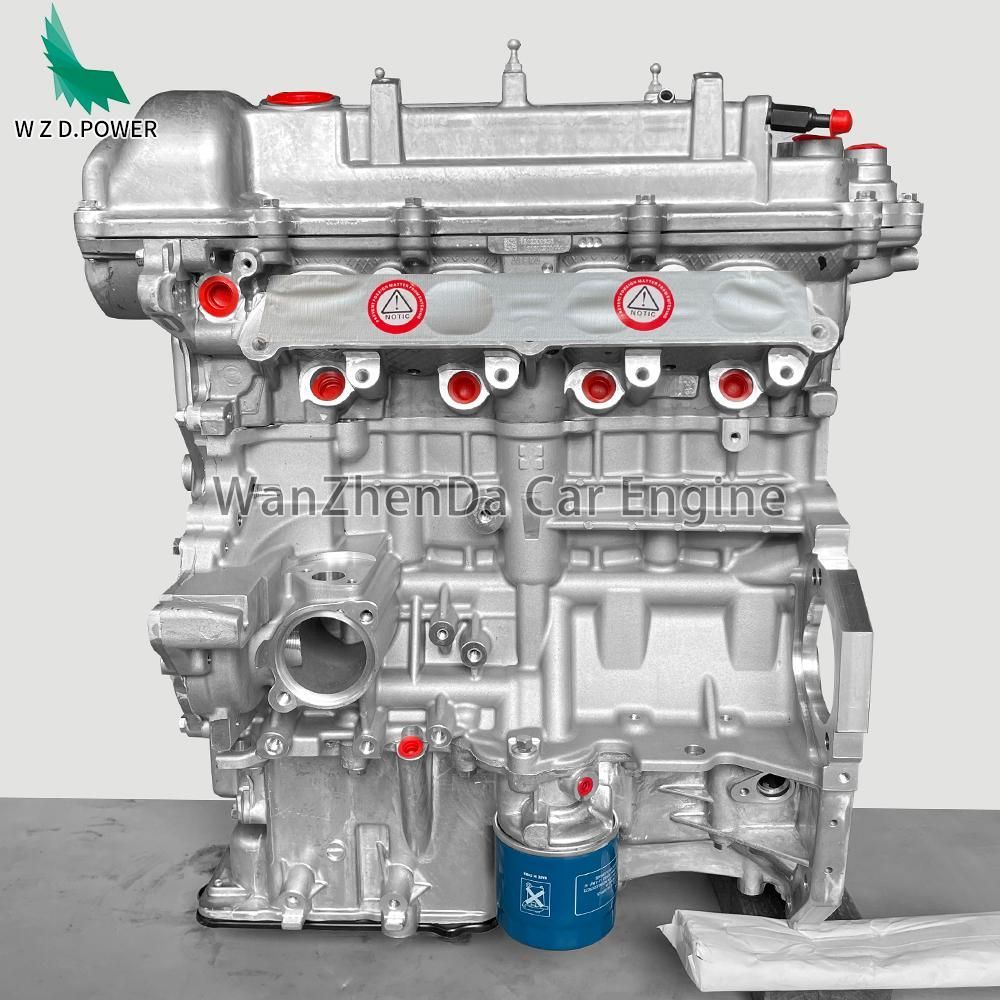

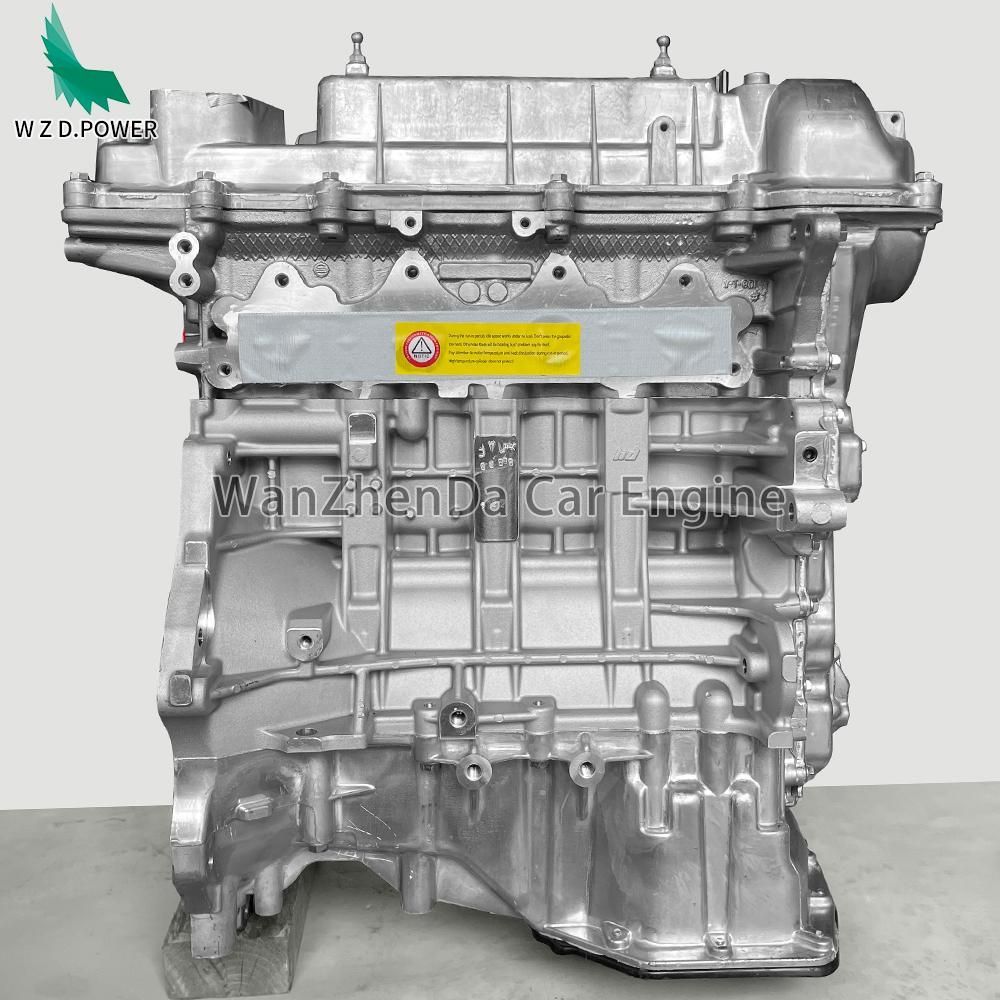

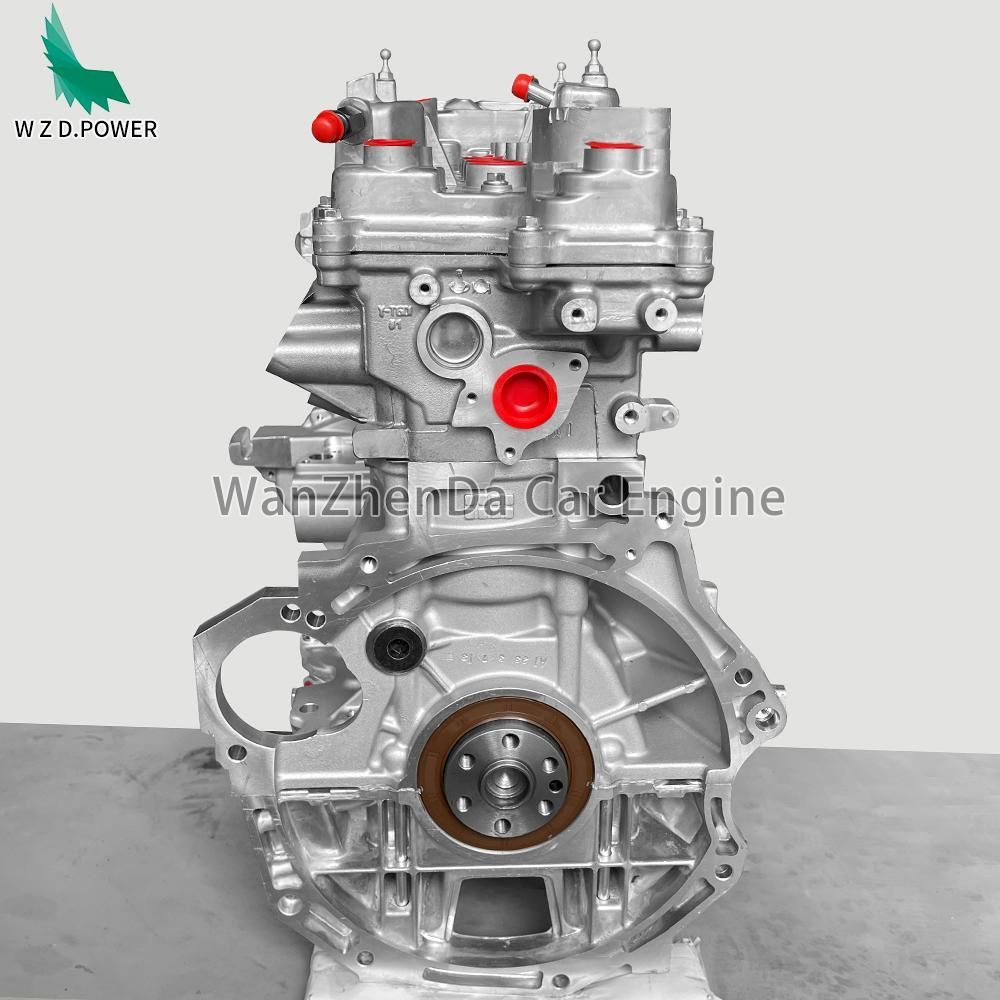

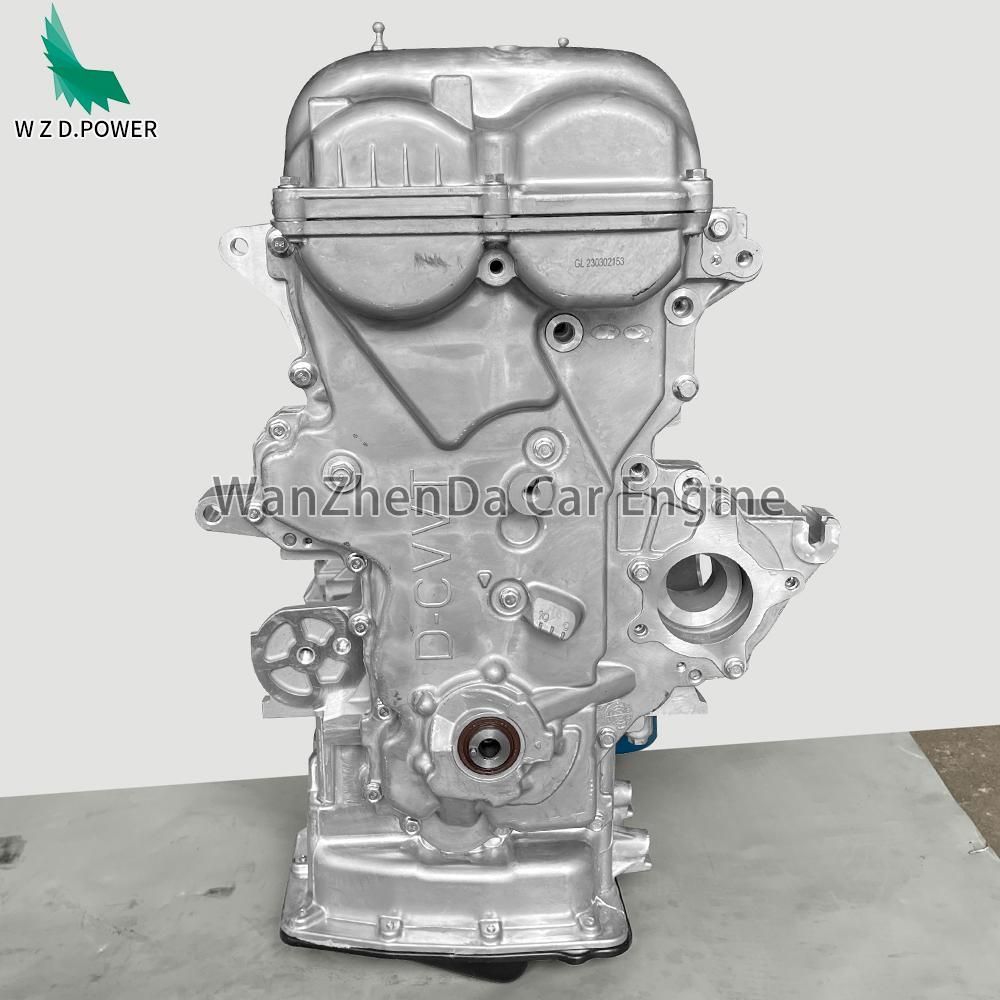

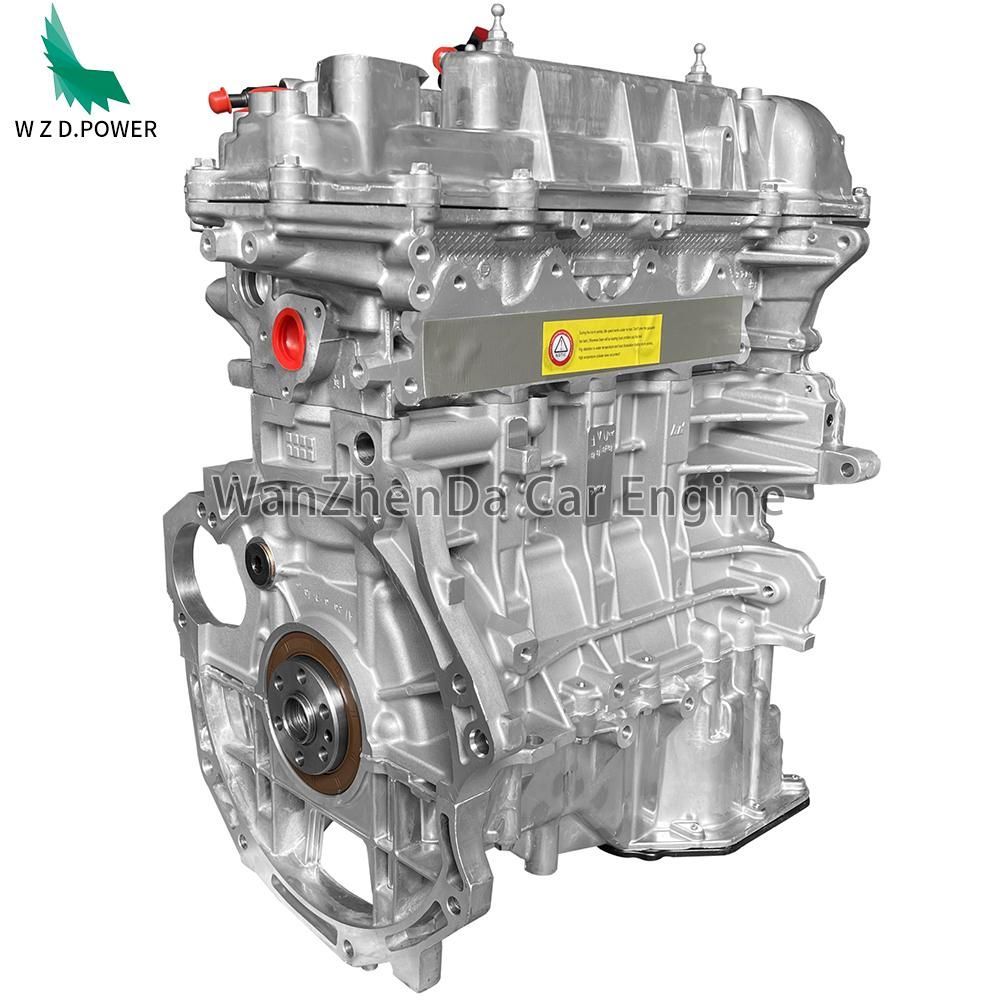

OEM G4FD 1.6L GDI Complete Engine Assembly Long Block for Hyundai Veloster Tucson Accent Kia Sportage Rio Soulundai Elantra 1.6 G4FD Engine Motor

The 4FD is a 1.6L gasoline direct injection (GDI) engine from Hyundai-Kia’s Gamma series.

Introduced in 2009–2010, it is the direct-injection variant of the Gamma family. Compared to the MPI engines in the same series

(such as the G4FC), it employs direct injection technology, combined with Dual Continuously Variable Valve Timing (Dual CVVT)

and a Variable Intake Manifold (VIS), resulting in superior performance and fuel economy.


Description

Our products are exported to various parts of the country, and the customers we have worked with have received unanimous praise.

The company has invested over 20 million yuan in high-end remanufacturing equipment imported from abroad and a first-class production

team in the country. Our warehouse has a total area of over 8000 square meters, with scientific management and sufficient supply of goods.

OEM G4FD 1.6L GDI Complete Engine Assembly Long Block for Hyundai Veloster Tucson Accent Kia Sportage Rio Soulundai Elantra 1.6 G4FD Engine Motor


Technical Specifications

SpecificationDetails
Engine CodeG4FD
Engine FamilyHyundai-Kia Gamma
Displacement1,591cc / 1.6L
Cylinder ConfigurationInline 4-Cylinder
Valve TrainDOHC 16-Valve
Bore77.0mm
Stroke85.4mm
Compression RatioApprox. 11.0:1
Fuel TypeGasoline / Petrol
Fuel InjectionGasoline Direct Injection (GDI)
AspirationNaturally Aspirated
Variable Valve TimingDual CVVT
Timing DriveTiming Chain
Maximum PowerApprox. 97–103kW, depending on version
Maximum TorqueApprox. 157–167Nm, depending on version
Cylinder Block MaterialAluminum Alloy
Cylinder Head MaterialAluminum Alloy
Common Drive LayoutFront-Wheel Drive

Specifications may vary depending on production year, vehicle market, emissions configuration,

and engine version. Please confirm the original engine specifications before ordering.

Vehicle Applications

The G4FD engine has been used in selected Hyundai and Kia 1.6L GDI vehicle applications.

Hyundai Applications

  • Hyundai Accent RB – selected 1.6L GDI versions

  • Hyundai Accent HC / YC – selected market versions

  • Hyundai Elantra / Avante MD – selected 1.6L GDI versions

  • Hyundai i30 GD – selected 1.6L GDI versions

  • Hyundai i40 VF – selected 1.6L GDI versions

  • Hyundai ix35 LM – selected 1.6L GDI versions

  • Hyundai Tucson TL – selected naturally aspirated 1.6L GDI versions

  • Hyundai Veloster FS – selected naturally aspirated 1.6L GDI versions

Kia Applications

  • Kia Carens RP – selected 1.6L GDI versions

  • Kia cee'd JD – selected 1.6L GDI versions

  • Kia pro_cee'd JD – selected 1.6L GDI versions

  • Kia Cerato / Forte / K3 – selected market versions

  • Kia Rio UB / YB – selected 1.6L versions

  • Kia Soul AM / PS – selected 1.6L GDI versions

  • Kia Sportage SL / QL – selected naturally aspirated 1.6L GDI versions

Vehicle applications are provided as a general reference. Not every vehicle listed above uses the G4FD engine in

every country or production year. Please verify the engine code and VIN before purchase.

OE and OEM Reference Numbers

The following OE/OEM references are associated with certain G4FD engine assemblies and related components.

Engine Long Block / Engine Assembly References

  • 21101-2BE00

  • 21101-2BE01

  • 21101-2BE02

  • 21101-2BE05

  • 101U1-2BE00

Related Engine Component References

  • 21102-2BE00 – Short Block

  • 22100-2B100 – Cylinder Head

  • 22100-2B101 – Cylinder Head

  • 35320-2B130 – High-Pressure Fuel Pump

  • 35320-2B140 – High-Pressure Fuel Pump

  • 23110-2B000 – Crankshaft

  • 23110-2B100 – Crankshaft

Important: The above references belong to different engine assembly and component categories.

They are not all interchangeable long block part numbers.

Please confirm the correct OE reference through the original engine number, vehicle VIN, and applicable parts catalog.


Key attributes
Industry-specific Attributes

Engine Long Block Configuration

A typical G4FD engine long block may include:

  • Cylinder block assembly

  • Crankshaft

  • Pistons and connecting rods

  • Piston rings

  • Main and connecting rod bearings

  • Cylinder head assembly

  • Intake and exhaust valves

  • Camshafts

  • Oil Pump

  • Oil pan

  • Timing System

External accessories may not be included, such as:

  • High-pressure fuel pump

  • Fuel rail

  • GDI fuel injectors

  • Intake manifold

  • Exhaust manifold

  • Throttle body

  • Alternator

  • Starter motor

  • Air-conditioning compressor

  • ECU and wiring harness

The exact package contents depend on the actual product configuration.

Please request the component list and product photos before placing an order.

B2B Engine Supply for Importers and Distributors

We welcome inquiries from international automotive parts businesses, including:

  • Automotive engine importers

  • Engine parts wholesalers

  • Hyundai and Kia parts distributors

  • Engine rebuilding companies

  • Automotive repair workshops

  • Regional spare parts dealers

  • Vehicle maintenance and repair businesses

For wholesale inquiries, please provide:

  • Engine model and code

  • Vehicle make and model

  • Production year

  • VIN or original OE number

  • Required quantity

  • Destination country

Our sales team can review your application details and provide a quotation based on the requested engine configuration.

Frequently Asked Questions

Q1: What is the displacement of the Hyundai Kia G4FD engine?

The G4FD is a 1.6L gasoline engine with a displacement of 1,591cc.


Q2: Is the G4FD engine MPI or GDI?

The G4FD uses Gasoline Direct Injection (GDI), which injects fuel directly into the combustion chamber.

It is different from the MPI-equipped G4FC engine.


Q3: Does the G4FD use a timing belt or timing chain?

The G4FD uses a timing chain-driven valve train.


Q4: Is the G4FD naturally aspirated or turbocharged?

The standard G4FD is a naturally aspirated 1.6L GDI engine.

It should not be confused with the G4FJ 1.6L Turbo GDI engine.


Q5: Is the G4FD interchangeable with the G4FC?

No. Although both engines have a 1.6L displacement and belong to the Gamma family,

the G4FC uses MPI fuel injection while the G4FD uses GDI. Their fuel systems and internal configurations differ.


Q6: Which Hyundai and Kia vehicles use the G4FD engine?

Selected applications include Hyundai Veloster, i30, ix35, Tucson, Elantra, and Kia cee'd, Carens, Soul,

and Sportage. Exact compatibility depends on the vehicle year, market, and original engine code.


Q7: What information is needed to confirm compatibility?

Please provide the VIN, original engine code, vehicle model, production year, and OE reference number.

Request a G4FD Engine Long Block Quotation

Looking for a Hyundai Kia G4FD 1.6L GDI gasoline engine long block for your wholesale or replacement business?

Contact our sales team with your required quantity, vehicle application, and destination country.

Send your inquiry today to request product specifications, fitment verification, and a B2B quotation.


Industry-specific Attributes
Place of OriginGuangdong, China
ConditionNew
Purposefor replace/repair
TypeGas / Petrol Engine
PowerOEM Standards


Lead time
Quantity (pieces)1 - 1011 - 50> 50
Lead time (days)715To be negotiated
Our Strengths

1. Our remanufactured products use accessories provided by well-known brand suppliers such as VICTORREINZ, SCHAEFFLER, KS KOLBENSCHMIDT GmbH, etc.


2. Our product quality is close to the original factory quality, but the price is only 50-60% of the original engine. We can also provide you with a one-year or 100000 kilometer warranty service for the entire machine, and professional after-sales personnel will follow up with you.


3. We have over 15 years of experience in the production and research of automotive engines, and our technical level and personnel training are very scientific and mature. Customers who have worked with us have expressed their agreement with our products and after-sales service.


4. 2018 It has achieved an annual production capacity of 2200 units and has become a major supplier of high-end engine remanufacturing and parts in China's automotive aftermarket.


5. In April 2021, T/CAAMTB passed the certification company of China Automobile Research and Huacheng. 19-2019 Certification of the management system requirements of gas vehicle parts remanufacturing enterprisesIn October 2021, he became a member of the National Green Manufacturing Technology Standardization Committee and participated in the drafting of the Technical Specification for Assembly of Remanufacturing Mechanical and Electrical Products.
