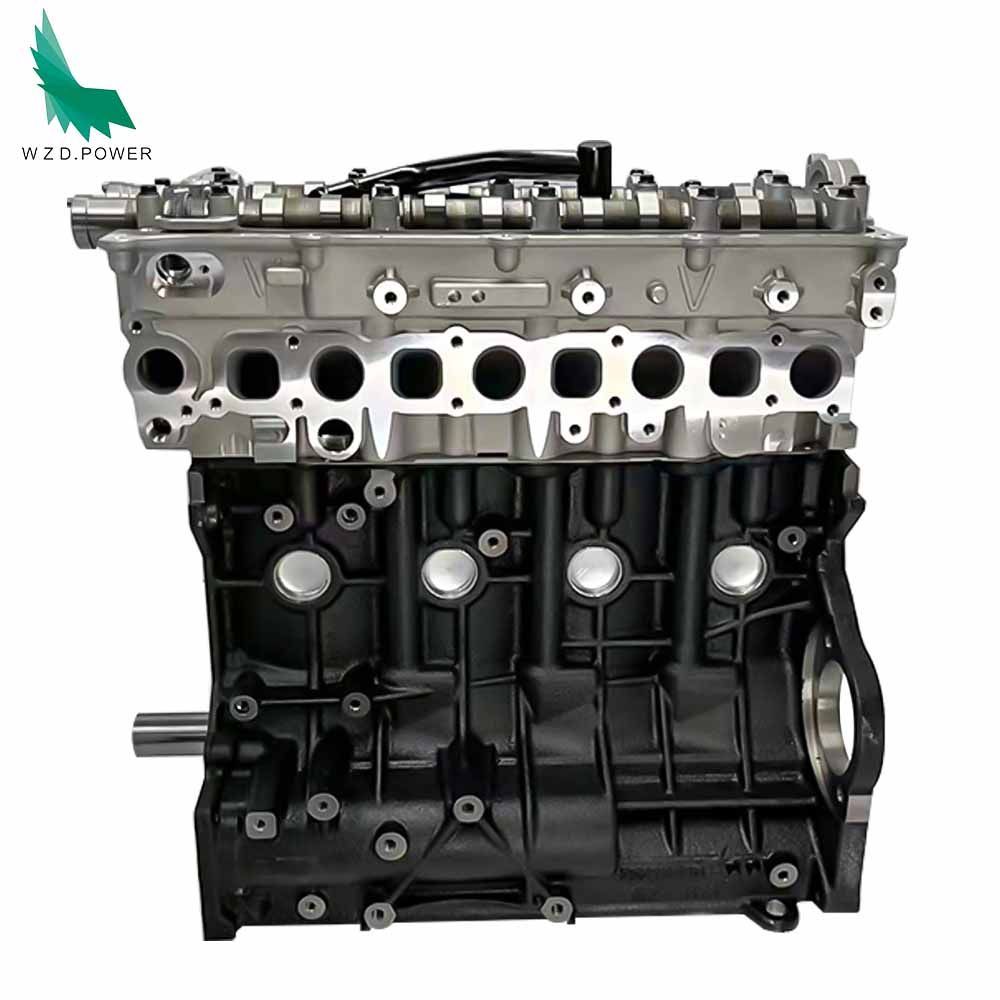

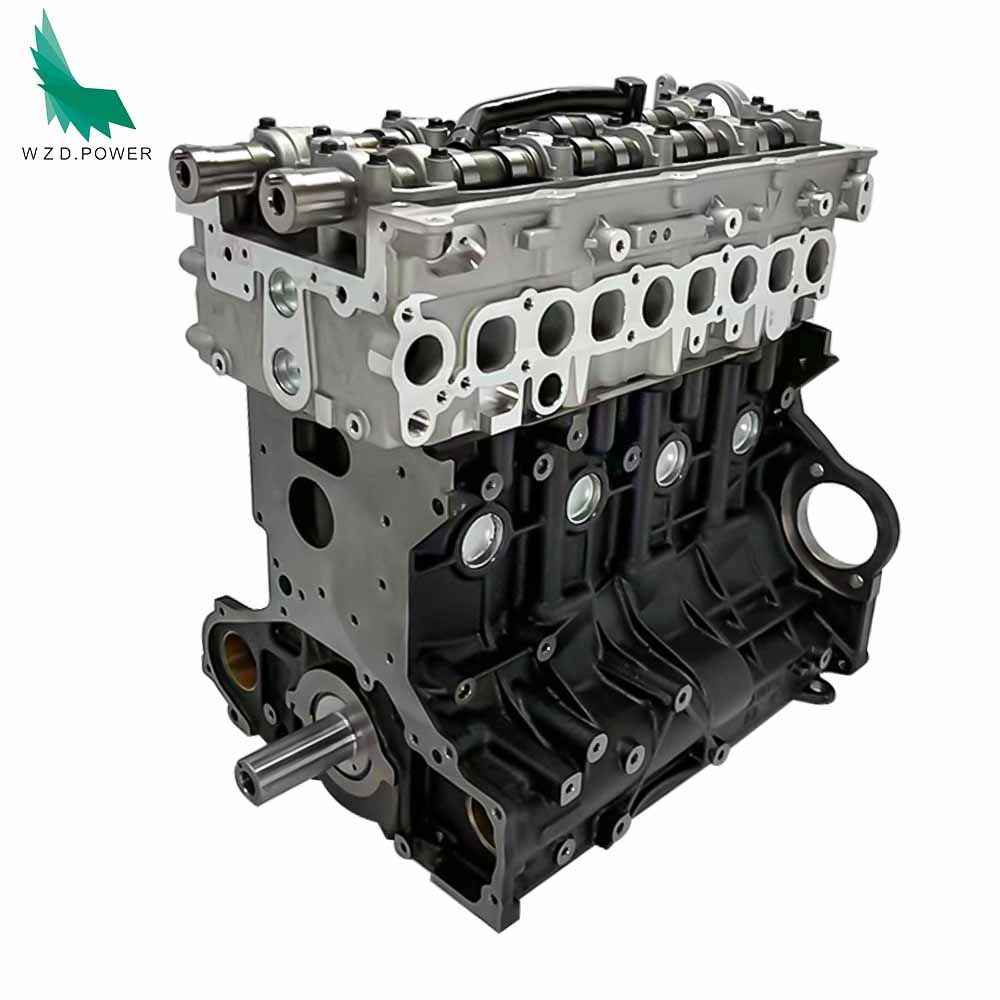

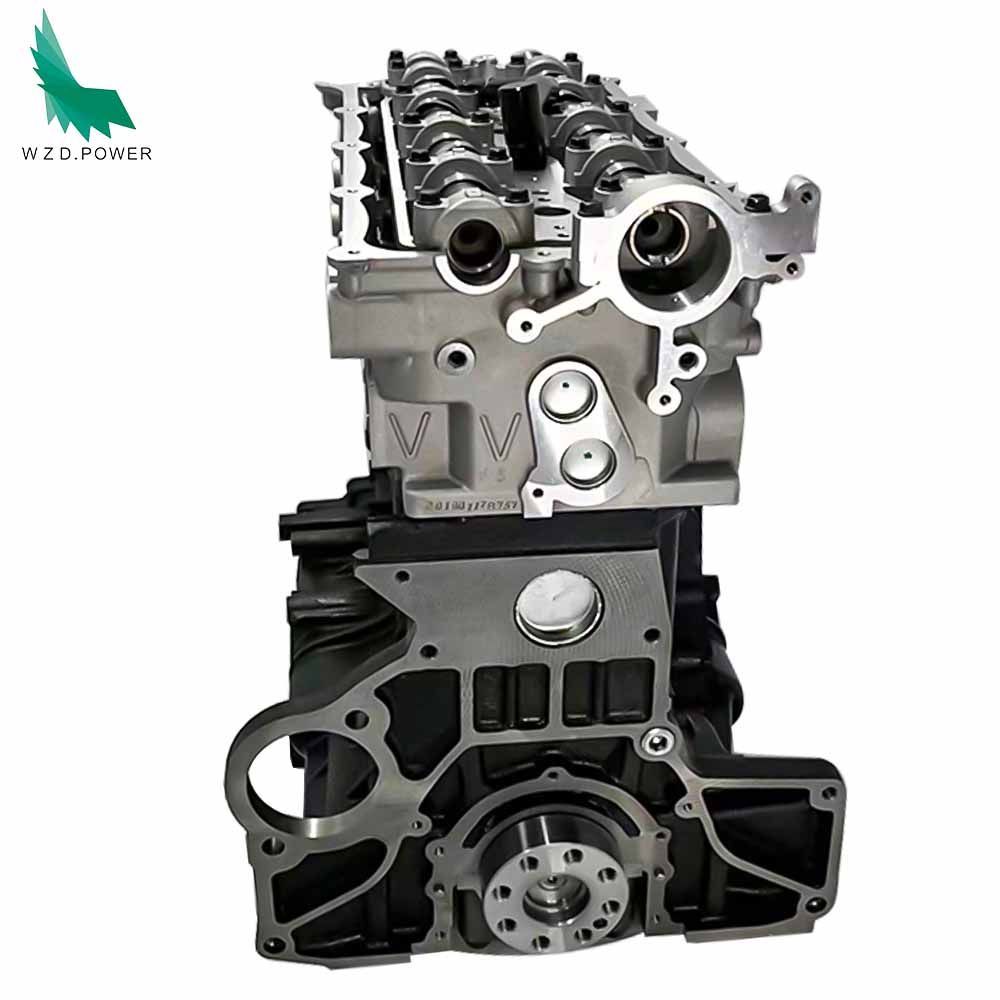

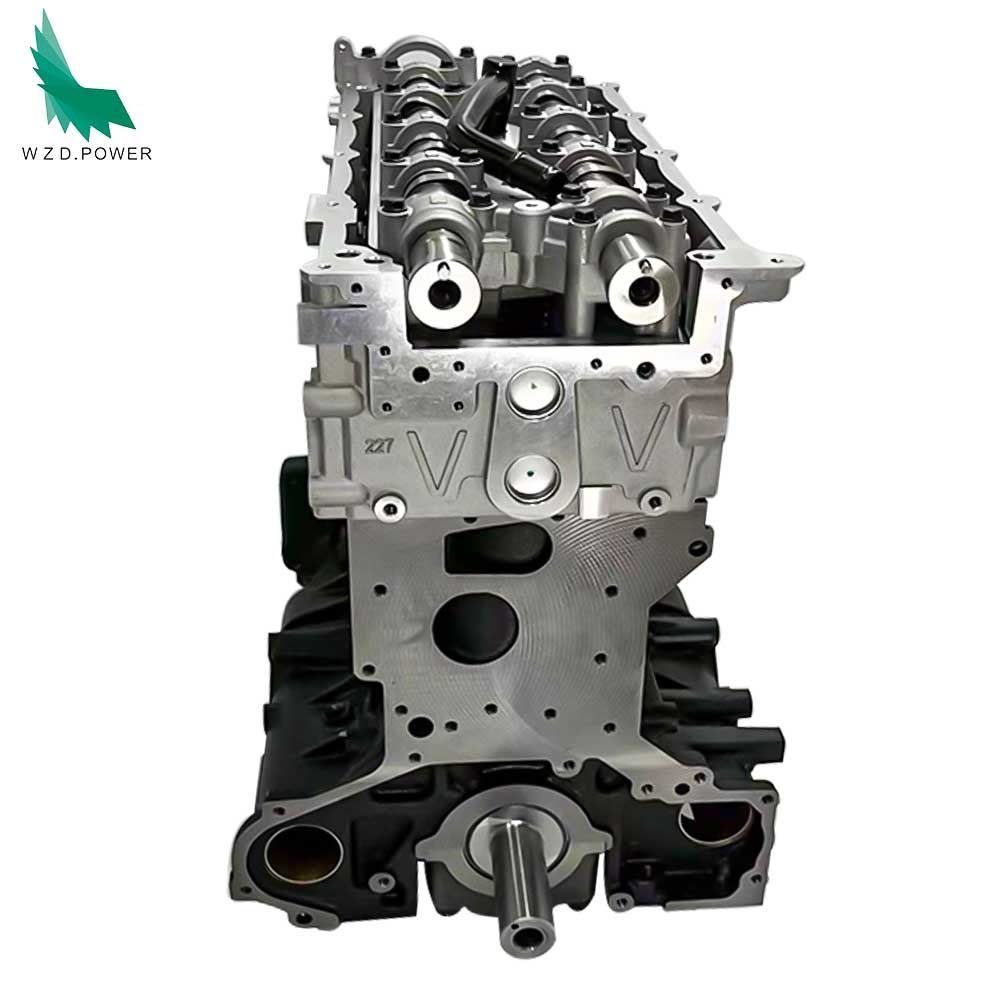

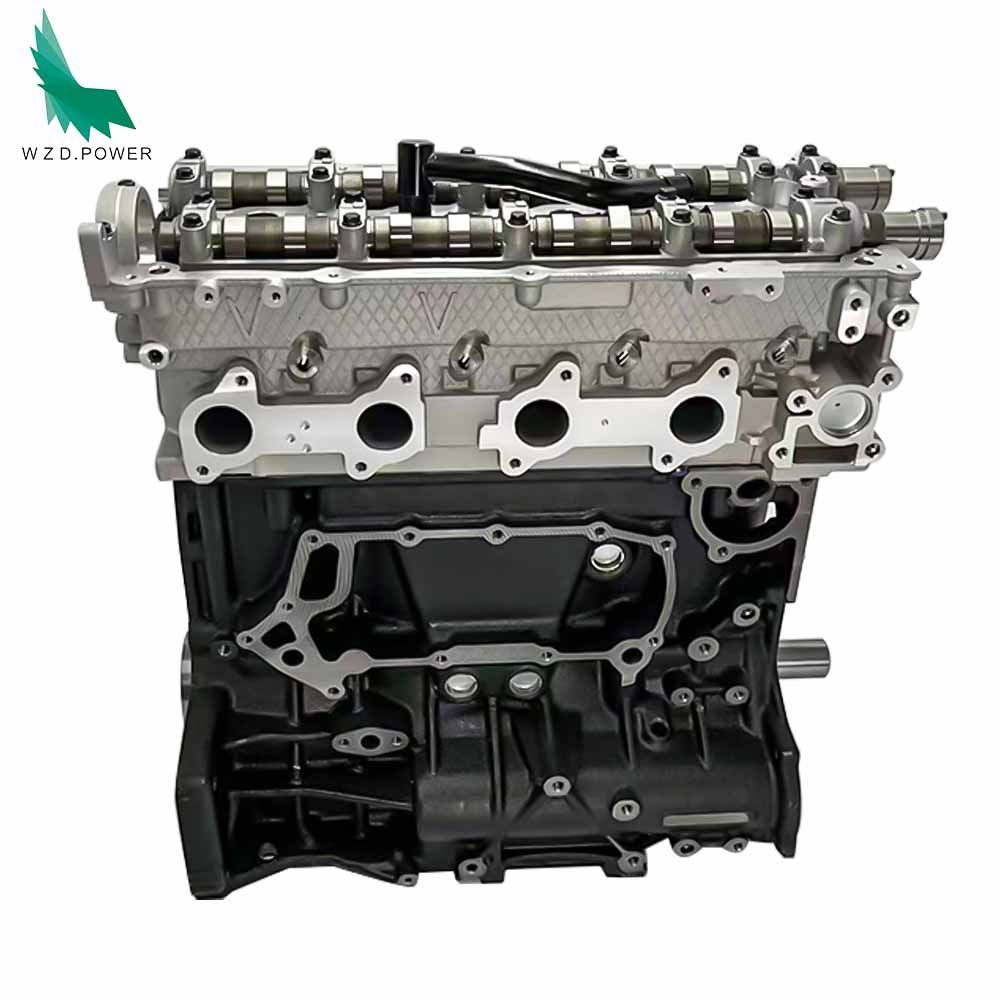

D4CB 2.5L CRDi Diesel Engine Long Block for Hyundai H1 Grand Starex Kia Sorento 21102-4AA10A

The D4CB is a 2.5-liter inline-four turbocharged diesel engine (CRDi) from the Hyundai-Kia Group’s A Series.

Mass production of this engine began in 2001/2002; it was the first diesel engine developed entirely in-house by Hyundai

(not under license) and remains in production to this day. It features a cast-iron block with an aluminum alloy cylinder head,

a timing chain drive, a common-rail direct injection system, and a turbocharger (initially a conventional turbocharger,

later upgraded to a variable geometry turbocharger, or VGT).


Description

Our products are exported to various parts of the country, and the customers we have worked with have received unanimous praise.

The company has invested over 20 million yuan in high-end remanufacturing equipment imported from abroad and a first-class production

team in the country. Our warehouse has a total area of over 8000 square meters, with scientific management and sufficient supply of goods.

D4CB 2.5L CRDi Diesel Engine Long Block for Hyundai H1 Grand Starex Kia Sorento 21102-4AA10A


Technical Specifications

ItemSpecification
Engine BrandHyundai / Kia
Engine CodeD4CB
Engine FamilyA / A II
Displacement2,497cc / 2.5L
Engine ConfigurationInline 4-Cylinder
Cylinder HeadDOHC 16-Valve
Fuel TypeDiesel
Fuel InjectionCRDi Common Rail Direct Injection
AspirationTurbocharged / Intercooled
Bore × Stroke91 × 96 mm
Compression RatioApprox. 16.4:1–17.7:1, depending on version
Maximum PowerApprox. 85–130 kW / 116–175 PS
Maximum TorqueApprox. 314–451 Nm
Cylinder Block MaterialCast Iron
Cylinder Head MaterialAluminum Alloy
Fuel SystemBosch / Delphi, depending on version
Emission StandardEuro 3 / Euro 4 / Euro 5 / Euro 6, depending on version

Specifications vary by production year, fuel injection system, turbocharger, emissions configuration

and destination market. Please confirm the exact engine version before purchase.

Vehicle Applications

The D4CB engine has been used in selected Hyundai and Kia vehicles, including the following applications.

Hyundai Applications

  • Hyundai H-1 / Starex A1 – selected 2.5 CRDi versions

  • Hyundai H-1 / Grand Starex TQ – selected 2.5 CRDi versions

  • Hyundai H-1 Cargo – selected diesel versions

  • Hyundai H-1 Travel – selected diesel versions

  • Hyundai iLoad – selected 2.5 CRDi versions

  • Hyundai iMax / i800 – selected diesel versions

  • Hyundai Porter II / H-100 – selected D4CB versions

  • Hyundai H350 – selected market versions

  • Hyundai Solati – selected market versions

Kia Applications

  • Kia Sorento BL / JC – selected 2.5 CRDi versions

  • Kia Bongo III – selected diesel versions

  • Kia K2500 – selected D4CB versions

  • Kia K2700 – selected market versions

Vehicle applications are provided for reference only. The same model may use different engine specifications

depending on production year, fuel system, transmission, drivetrain and emissions standard.

OE / OEM Reference Numbers

The following numbers are reference points found in D4CB engine assembly and parts catalog listings.

Early D4CB Engine References

  • 21101-4AB00

  • 21101-4AB10

  • 21101-4AA00

  • 21101-4AA10

  • 21102-4AA10A

  • 102J1-4AU00

Later D4CB A2 Engine Module References

  • 1J0614AU02 / 1J1814AU02 / 1J1314AU02

  • 1J0514AU02 / 1J1514AU01 / 1J2014AU02

  • 1J2114AU01 / 1J1614AU02

  • 1J1914AU02 / 1J2214AU01

ngine Complete / Long Block:

21102-4AA10A, 21100-4A600, D4CB

Cylinder Head:

22100-4A010, 22100-4A020, 22100-4A060, 22100-4A210, 22100-4A250 (AMC Ref: 908 751 / 908 752)

Crankshaft:

23111-4A010, 23111-4A700, 23111-4A701

Fuel Injector:

33800-4A000, 33800-4A700, 33800-4A710,   33800-4A900

Turbocharger:

28200-4A001, 28200-4A470, 28200-4A480

Timing Chain Kit:

24351-4A020, 24361-4A020

These numbers may refer to different engine assembly, sub-engine module or cylinder block catalog configurations.

They should not be treated as universal interchangeable long block numbers.

Please provide the original OE number, vehicle VIN and engine identification details so that the correct application can be checked.


Key attributes
Industry-specific Attributes

B2B Wholesale Supply

We support business customers looking for Hyundai Kia D4CB 2.5L CRDi diesel engine long block assemblies.

Our target customers include:

  • Commercial vehicle engine importers

  • Diesel engine rebuilding companies

  • Auto parts wholesalers

  • Automotive distributors

  • Truck and van repair workshops

  • Regional engine replacement suppliers

For a wholesale inquiry, please provide:

  1. Engine model: D4CB

  2. Vehicle make and model

  3. Vehicle production year

  4. VIN or original engine serial number

  5. Bosch or Delphi fuel system information

  6. Original OE part number, if available

  7. Required quantity

  8. Destination country or port

This information helps us check the correct engine configuration and prepare an appropriate quotation.

Frequently Asked Questions

1. What is the displacement of the Hyundai Kia D4CB engine?

The D4CB is a 2.5L diesel engine with a displacement of approximately 2,497cc.

2. Is the D4CB a CRDi diesel engine?

Yes. The D4CB uses common rail direct injection technology and turbocharging.

3. Which vehicles use the D4CB engine?

Selected Hyundai H-1, Starex, Grand Starex, Porter, iLoad and H350 models, as well as Kia Sorento and Bongo models,

may use the D4CB engine. Exact compatibility depends on the vehicle specification and production version.

4. Are all D4CB engines interchangeable?

No. Different D4CB versions may have different fuel injection systems, turbochargers,

emissions equipment, mounting configurations and external connections.

5. What is the difference between Bosch and Delphi D4CB engines?

Bosch and Delphi refer to different fuel injection system configurations.

The high-pressure pump, injectors and related components must be checked before selecting a replacement engine.

6. Does the D4CB long block include the turbocharger and injectors?

Not necessarily. The turbocharger, fuel pump, injectors and other external components

are not assumed to be included unless specifically confirmed.

7. How can I identify the correct D4CB engine?

Please provide the VIN, engine serial number, vehicle production year, injector part number

and photos of the original engine. These details help identify the correct configuration.

8. Can you supply D4CB engine long blocks for wholesale orders?

Please contact us with your required engine version, quantity and destination country.

We can check the requested configuration and prepare a B2B quotation.

Request a Wholesale Quotation

Looking for a Hyundai Kia D4CB 2.5L CRDi turbo diesel engine long block?

Contact us with your engine code, vehicle information, fuel system details, OE reference and required quantity.

Our sales team can help check the engine application and provide a quotation for your engine replacement or wholesale requirements.

Contact us today for D4CB engine availability, version identification and B2B pricing.
