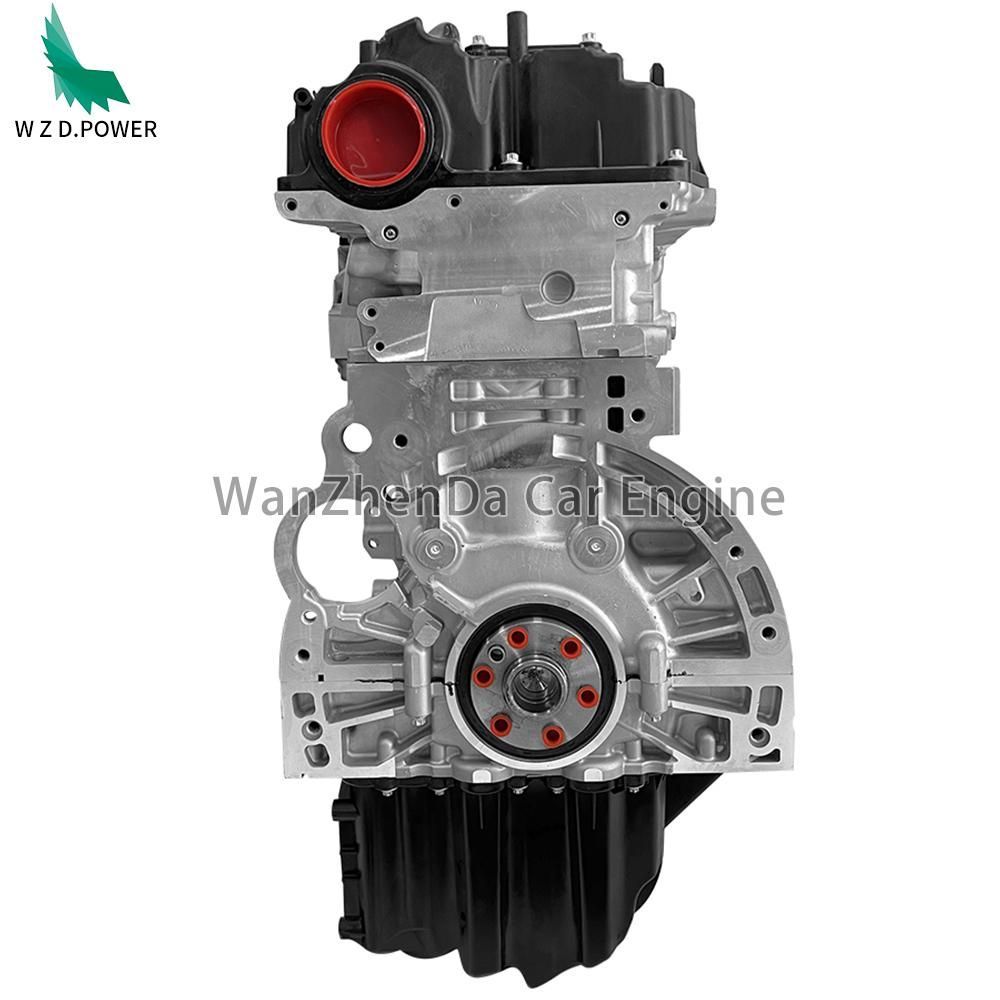

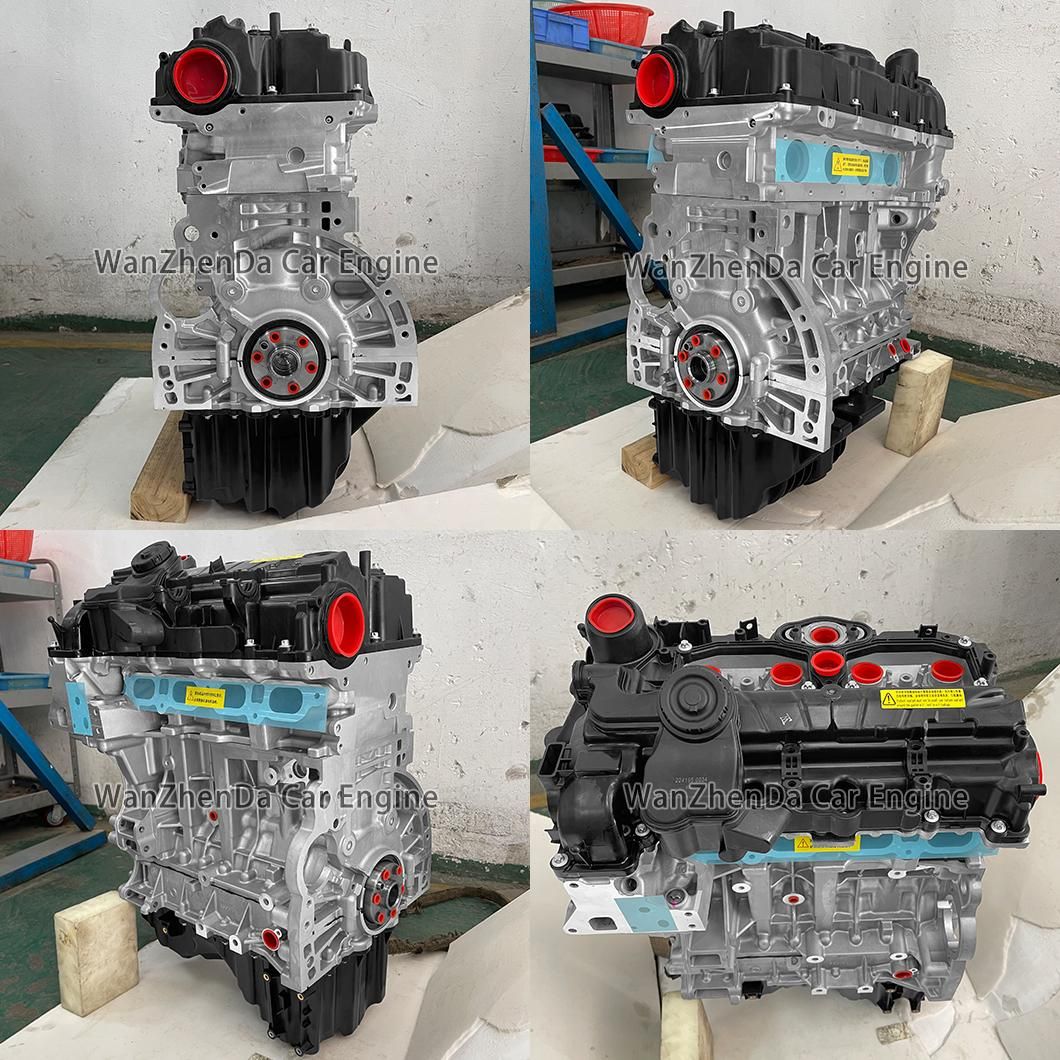

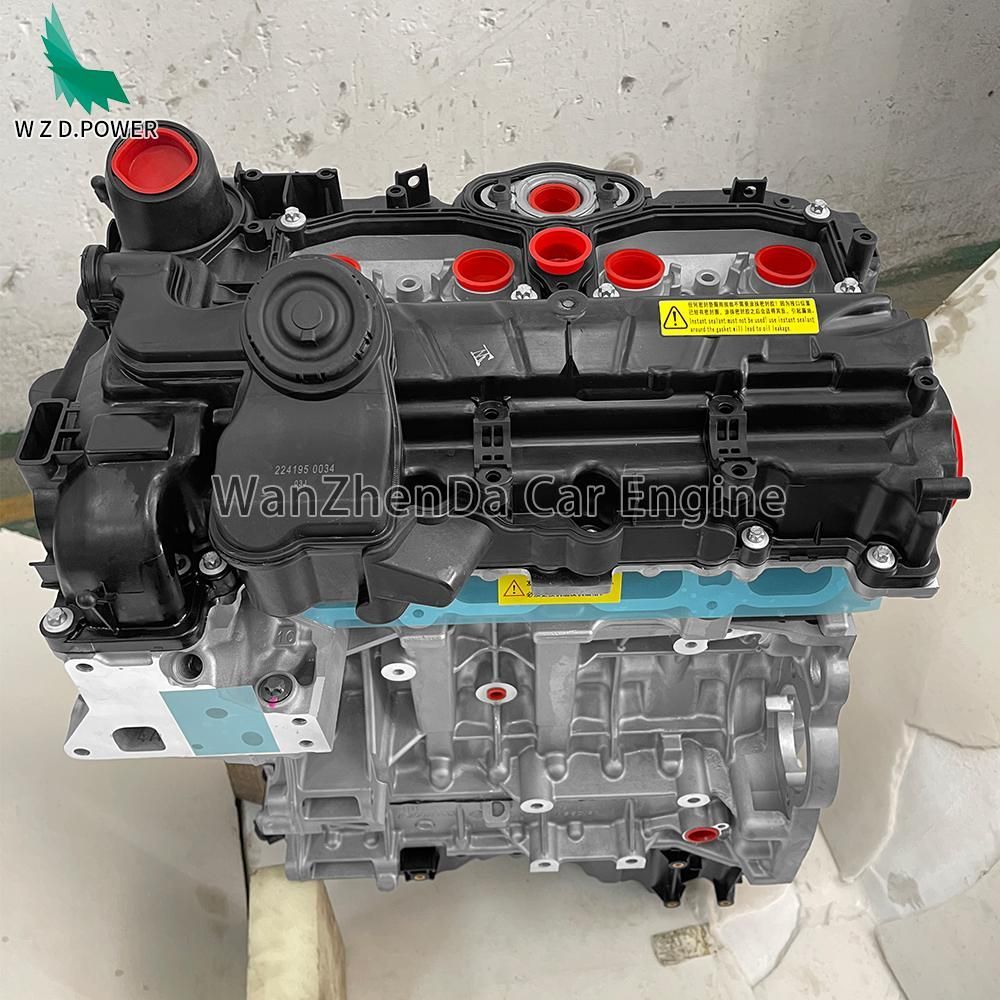

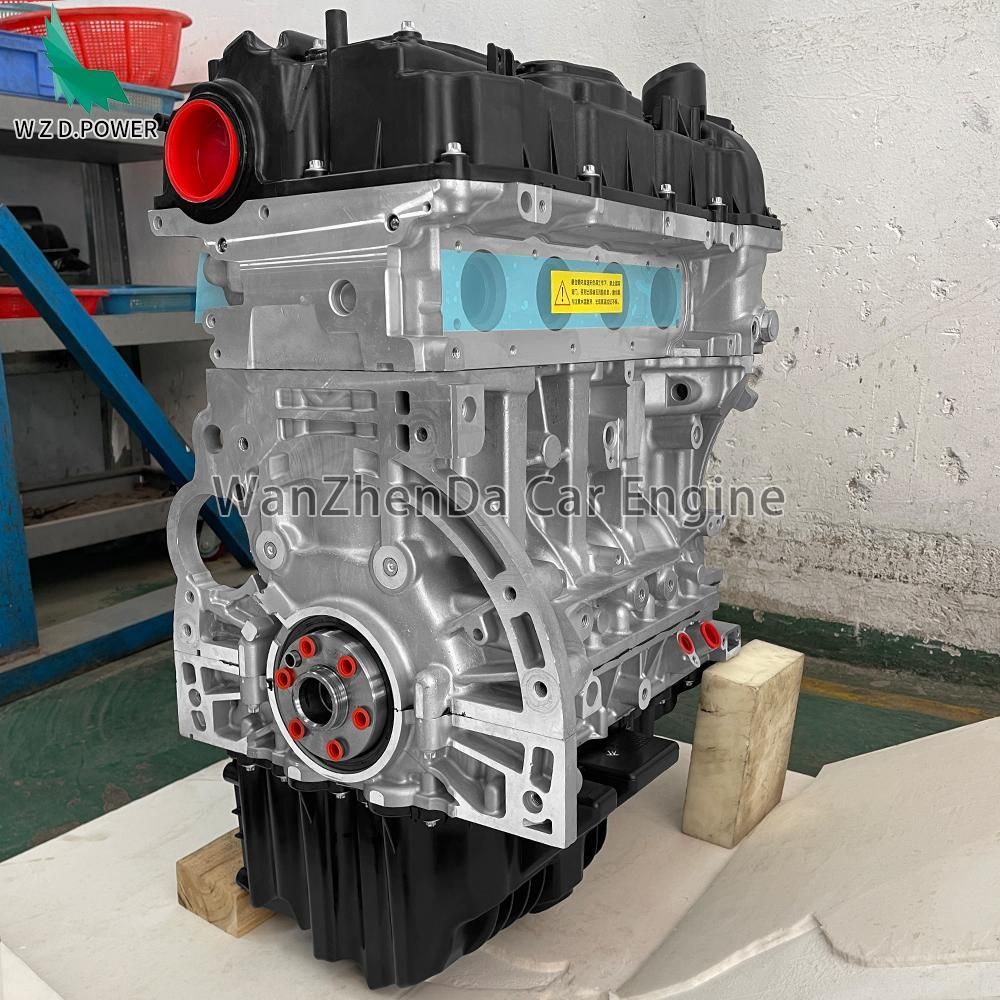

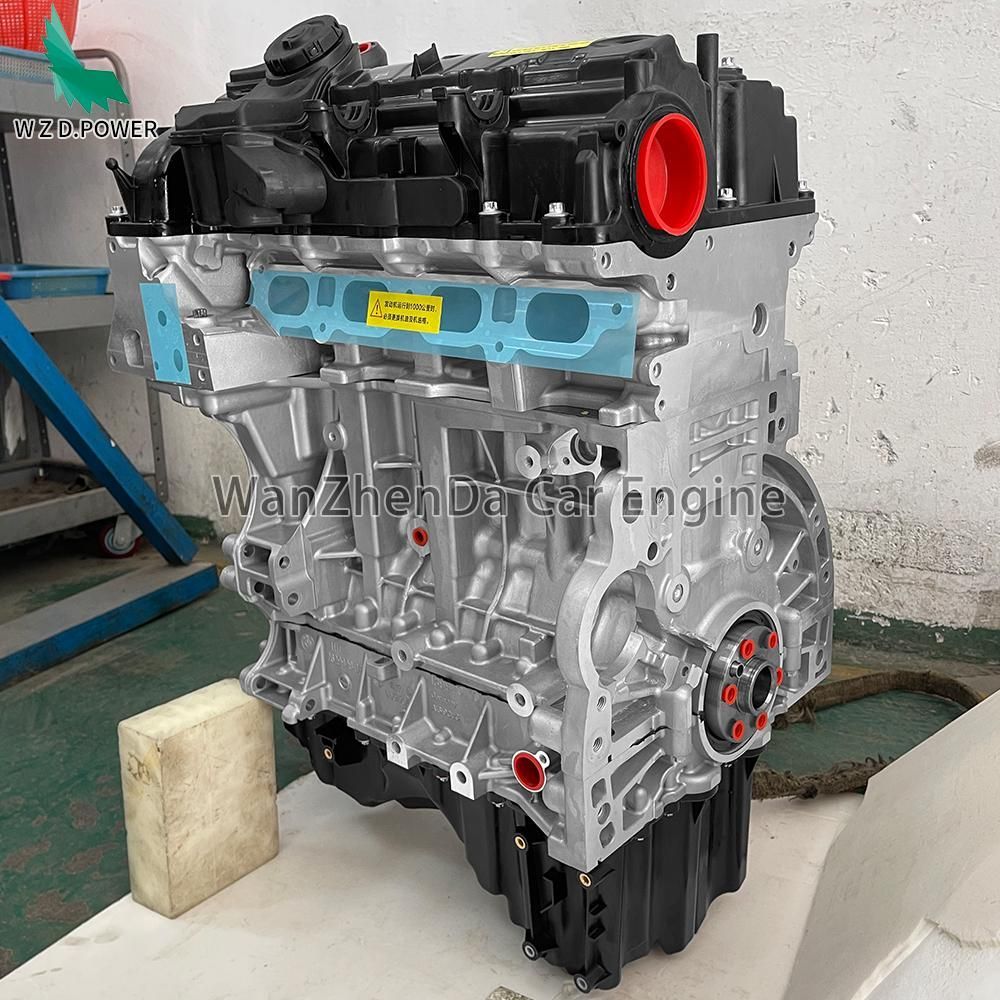

The BMW N20B20 is a 2.0L inline-four turbocharged gasoline engine (featuring TwinPower Turbo technology) introduced by the BMW Group in 2011, primarily to replace the previous naturally aspirated six-cylinder engines (N52/N53 series).
2WD (two-wheel drive) features: The N20 engine is available in two versions: 2WD (rear-wheel drive/RWD, such as sDrive) and 4WD (all-wheel drive, xDrive). The key differences between the 2WD and 4WD “long blocks” lie in the oil pan design and pump housing interface (the oil pan on the 4WD version passes through the front half-shaft). The 2WD long block offers better compatibility and smoother installation on rear-wheel-drive platforms.
Our products are exported to various parts of the country, and the customers we have worked with have received unanimous praise. The company has invested over 20 million yuan in high-end remanufacturing equipment imported from abroad and a first-class production team in the country. Our warehouse has a total area of over 8000 square meters, with scientific management and sufficient supply of goods.
Specifications
Engine Code: N20B20 (including variants such as N20B20U0, N20B20M0, and N20B20O0)
Displacement: 1997 cc (2.0L)
Cylinder Configuration: Inline-four (R4)
Bore × Stroke: 84.0 mm × 90.1 mm
Compression Ratio: 10.0:1 (high-output) / 11.0:1 (low/medium-output)
Valve Train: DOHC, 4 valves per cylinder, Valvetronic + Double VANOS
Redline: approx. 7,000 rpm
Common power variants: 154–156 hp / 181–184 hp / 215–218 hp / 241–245 hp
Maximum torque: 240–350 Nm (1,250–4,800 rpm range)
| Model Number | N20B20 2WD |
Common OE Number References (Base Model / Long Block)
Actual OE numbers may vary depending on model year, power rating, left- or right-hand drive, and whether accessories are included. Common reference numbers include:
11002420321 / 2420321
11002420322 / 2420322
11002288240 / 2288240
11002349220 / 2349220
11002349221 / 2349221
Related cylinder block/cylinder head part number ranges: 11 00 2 / 11 12 / 11 13 series
We recommend verifying the part number against the actual number stamped on the engine nameplate or the vehicle’s VIN. When sold as a bare engine, it is labeled “Long Block / Bare Engine.”
Primary Compatible Models (2WD / Rear-Wheel Drive Preferred)
F30/F31 3 Series: 320i, 328i (2012–2016)
F10/F18 5 Series: 520i, 520Li, 528i (2011–2016)
F22/F23 2 Series: 220i, 228i
F32/F33/F36 4 Series: 420i, 428i
E84 X1: sDrive20i / sDrive28i
E89 Z4: sDrive20i / sDrive28i
F20 1 Series: 125i (select models)
Others: F34 320i/328i GT, select X3 sDrive models, etc.
(The structure of xDrive all-wheel-drive models is essentially the same, but mounting brackets, wiring harnesses, and other components may differ; customers are advised to provide the VIN for confirmation.)
| Place of Origin | Guangdong, China |
| Condition | New |
| Purpose | for replace/repair |
| Type | Gas / Petrol Engine |
| Power | OEM Standards |
| Quantity (pieces) | 1 - 10 | 11 - 50 | > 50 |
| Lead time (days) | 7 | 15 | To be negotiated |
1. Our remanufactured products use accessories provided by well-known brand suppliers such as VICTORREINZ, SCHAEFFLER, KS KOLBENSCHMIDT GmbH, etc.
2. Our product quality is close to the original factory quality, but the price is only 50-60% of the original engine. We can also provide you with a one-year or 100000 kilometer warranty service for the entire machine, and professional after-sales personnel will follow up with you.
3. We have over 15 years of experience in the production and research of automotive engines, and our technical level and personnel training are very scientific and mature. Customers who have worked with us have expressed their agreement with our products and after-sales service.
4. 2018 It has achieved an annual production capacity of 2200 units and has become a major supplier of high-end engine remanufacturing and parts in China's automotive aftermarket.
5. In April 2021, T/CAAMTB passed the certification company of China Automobile Research and Huacheng. 19-2019 Certification of the management system requirements of gas vehicle parts remanufacturing enterprisesIn October 2021, he became a member of the National Green Manufacturing Technology Standardization Committee and participated in the drafting of the Technical Specification for Assembly of Remanufacturing Mechanical and Electrical Products.
