BMW N20 N20B20 2.0T Engine Assembly Long Block 2WD RWD Aluminum Oil Pan for 328i 528i Z4 F30 F10

The N20 is a 2.0L inline-four turbocharged gasoline engine (full name: N20B20) introduced by BMW in 2011 to replace the previous-generation

naturally aspirated six-cylinder N52/N53 engines, with a focus on high efficiency and low-rpm torque.

It features an aluminum alloy closed-loop cylinder block, plasma-sprayed cylinder walls, TwinPower Turbo technology, direct injection,

and Double-VANOS variable valve timing combined with Valvetronic variable valve lift technology.

“RWD” refers to the rear-wheel-drive (RWD) version; “aluminum oil pan” refers to an oil pan made of aluminum alloy.

Factory-equipped rear-wheel-drive N20 models typically use phenolic resin (plastic) oil pans (for weight reduction and better sound insulation),

while all-wheel-drive (xDrive) versions use aluminum alloy oil pans to support the front differential. The “RWD aluminum oil pan”

versions commonly found on the market are mostly remanufactured or aftermarket upgrades, replacing the crack-prone plastic parts with

more durable aluminum alloy oil pans to resolve oil leakage issues.



Description

Product Details:

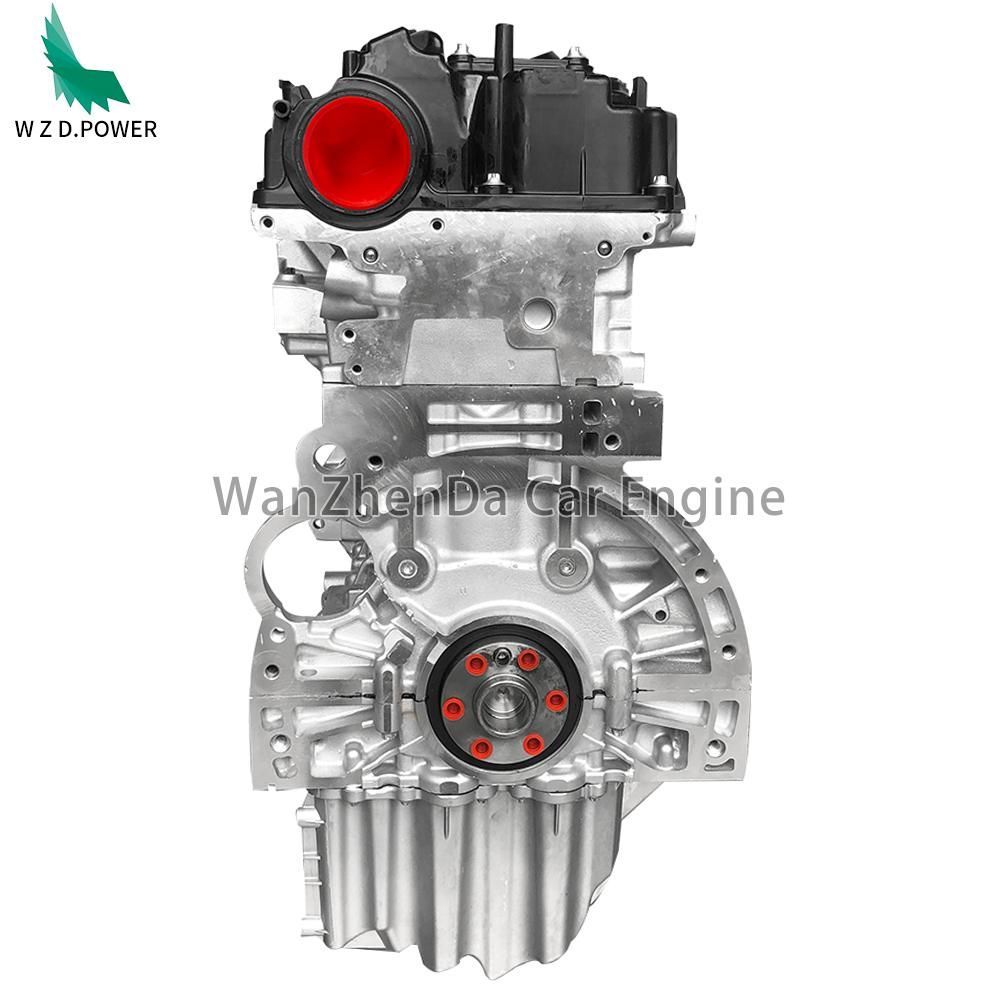

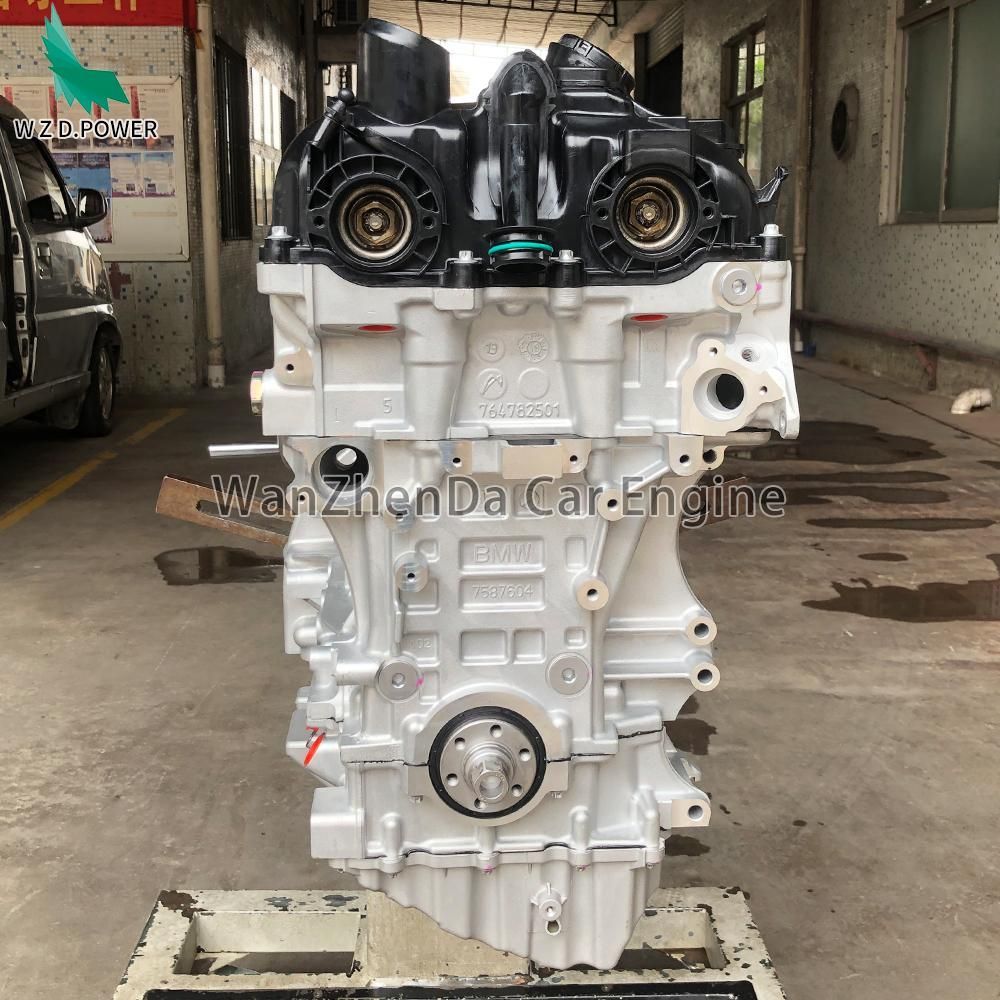

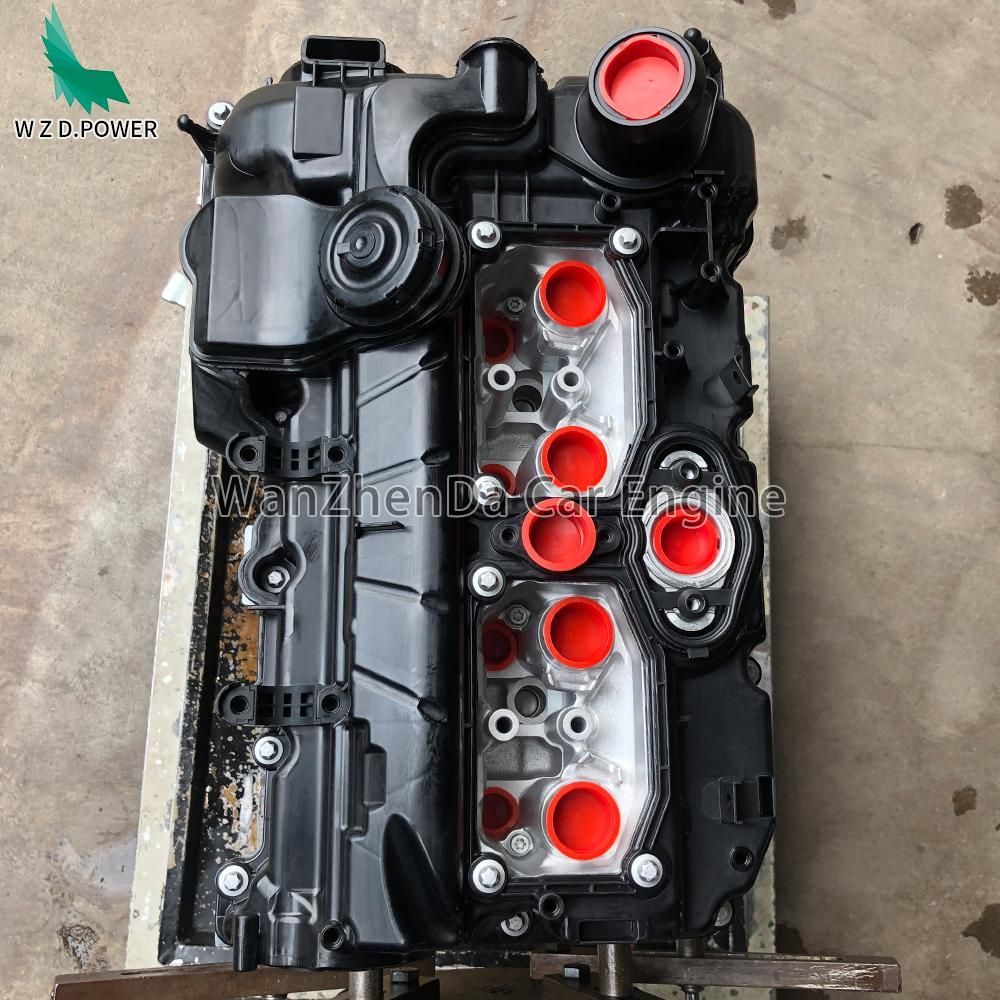

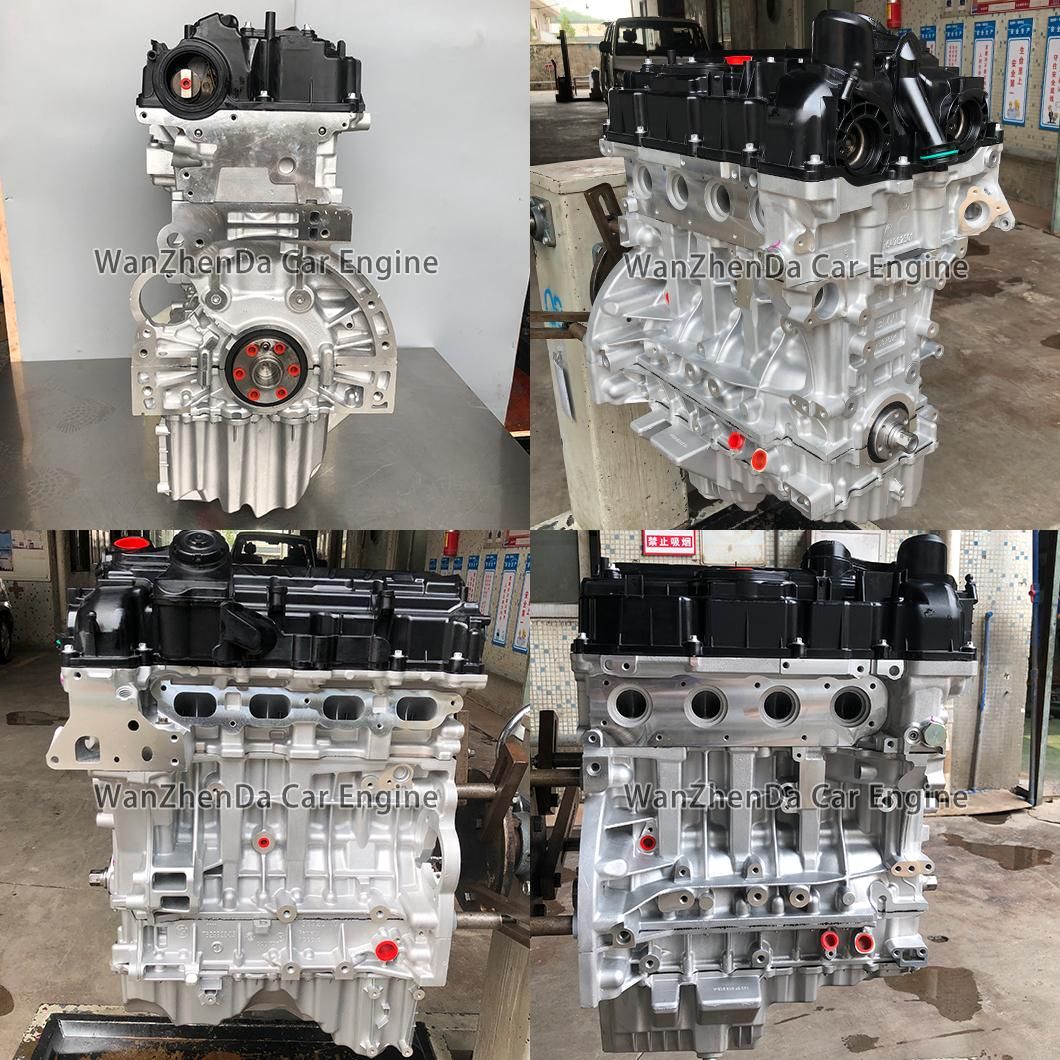

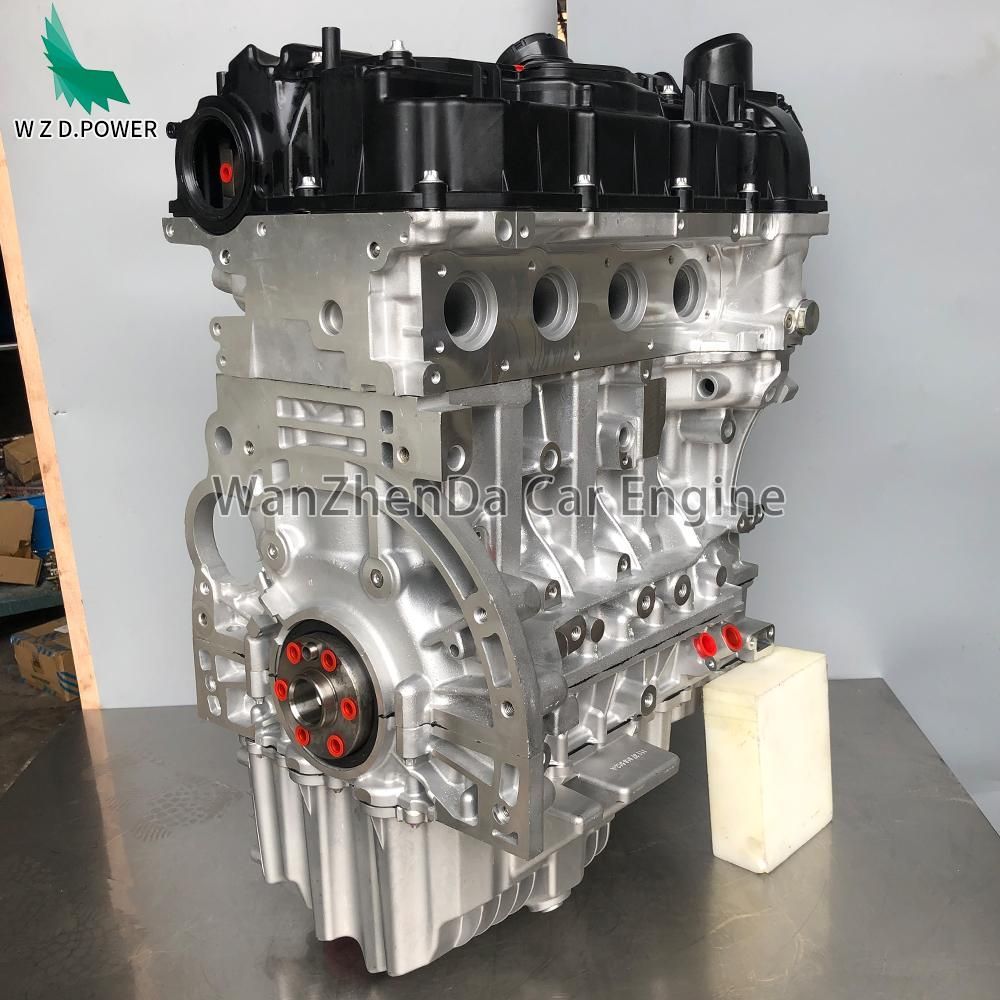

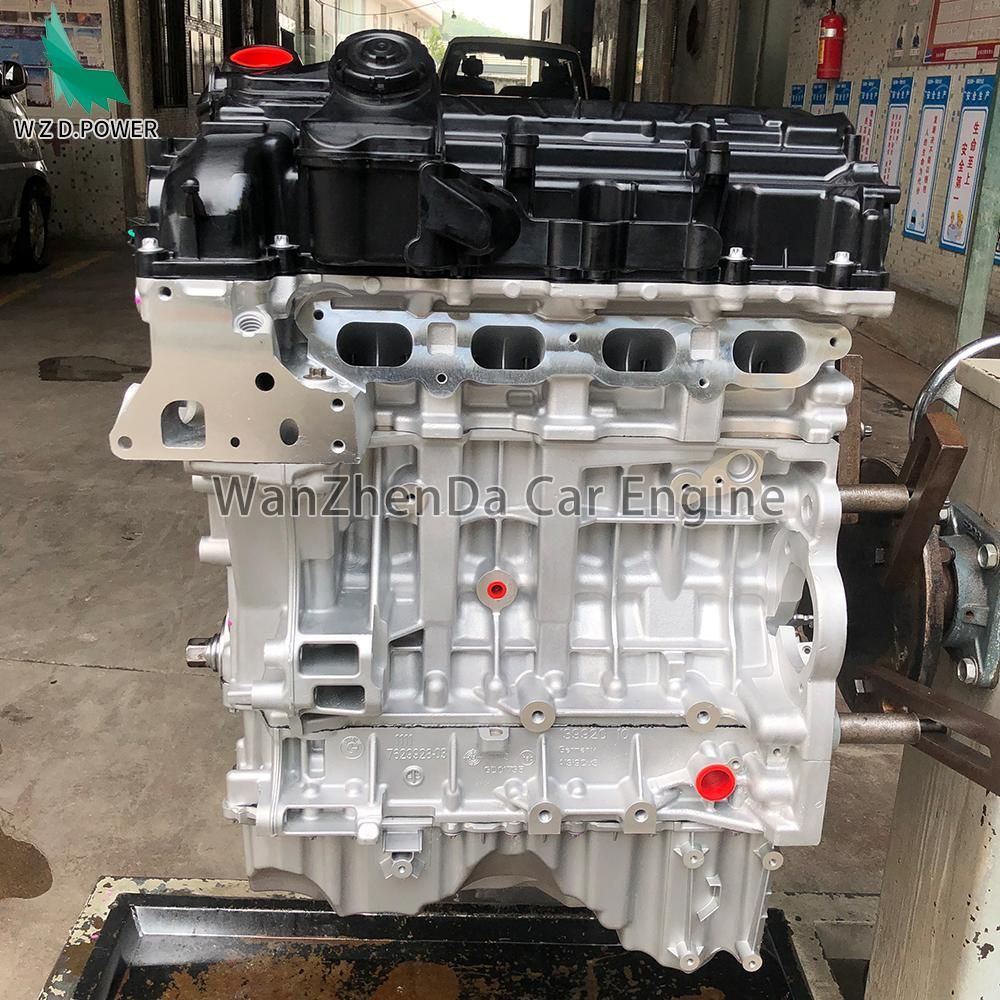

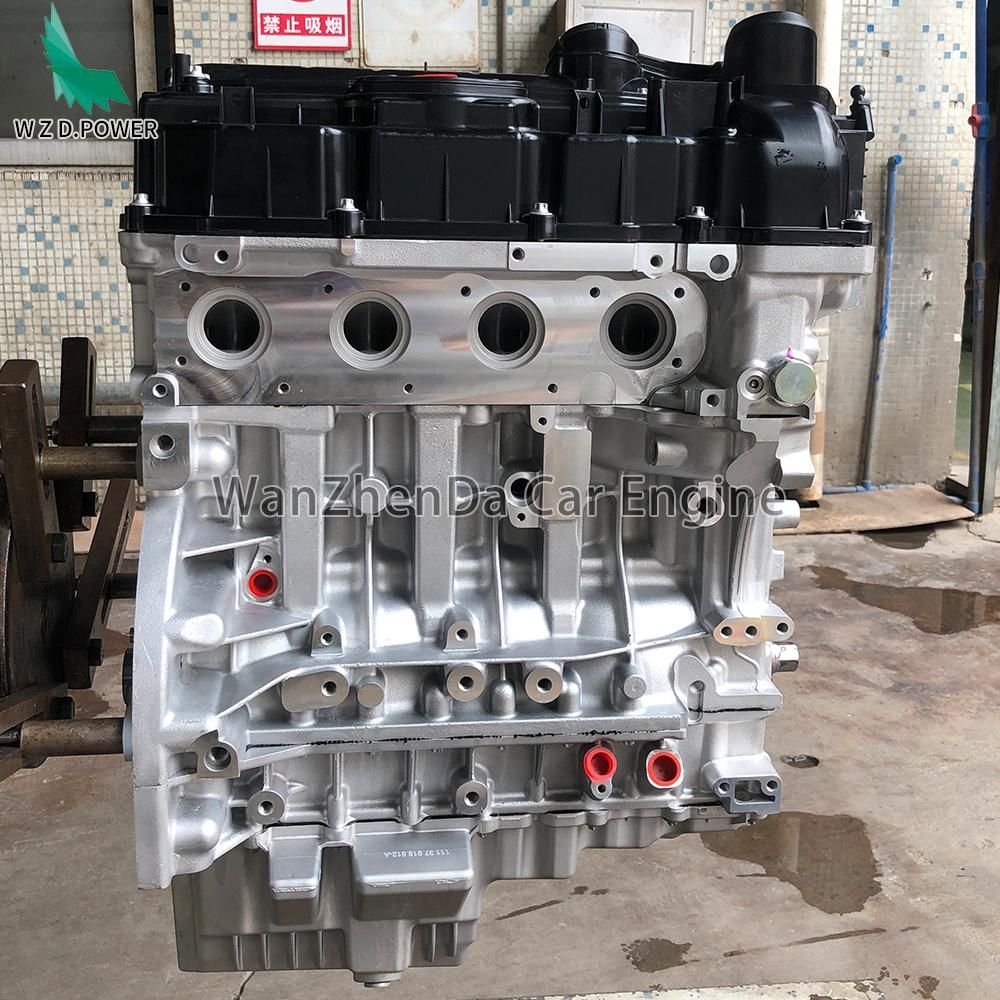

BMW N20 N20B20 2.0T Engine Assembly Long Block 2WD RWD Aluminum Oil Pan for 328i 528i Z4 F30 F10


Engine Specifications:

Engine Code: N20B20A / N20B20B / N20B20C / N20B20D (2WD / RWD Variant)

Cylinder Configuration: L4 / Inline-4

Displacement: 1,997 cc (2.0 Liters)

Valve Train and Intake System: DOHC 16-valve, with Valvetronic (electronic valve lift) + Double-VANOS

(dual variable camshaft timing) + single-turbo twin-scroll turbocharger

Block/Head/Oil Pan Material: Aluminum alloy block (Open-Deck) / Aluminum alloy cylinder head / Aluminum oil pan

Fuel Delivery: Direct Injection

Drivetrain: 2WD / RWD

Power:

High-output version (N20B20A - 28i / 528i, etc.): 245 HP (180 kW) @ 5,000–6,500 RPM

Low-Power Version (N20B20B - 20i / 320i / 520i, etc.): 184 HP (135 kW) @ 5,000 RPM

Torque: 350 N·m (28i) / 270 N·m (20i) @ 1,250–4,800 RPM

Fitment / Compatible Vehicles - 2WD/RWD:

BMW 3 Series:

F30 / F31 / F35 (320i, 328i RWD - 2012–2015)

BMW 5 Series:

F10 / F11 / F18 (520i, 528i RWD – 2011–2016)

BMW 1 & 2 Series:

F20 / F21 (125i RWD – 2012–2015)

F22 / F23 (220i, 228i RWD – 2014–2016)

BMW 4 Series & Z4:

F32 / F33 / F36 (420i, 428i RWD – 2013–2016)

E89 (Z4 sDrive18i, sDrive20i, sDrive28i RWD – 2011–2016)

BMW X1:

E84 (X1 sDrive18i, sDrive20i, sDrive28i RWD – 2011–2015)

OE Reference Numbers

The following part numbers are references associated with selected BMW N20B20 engine applications.

OE ReferenceEngine VersionCatalog Description
11002420472N20B20BRP Engine
11002420320N20B20BRP Engine
11005A420A7N20B20BRP REMAN Engine
11002420307N20B20ARP Engine
11002420342N20B20ARP Engine
11005A422A1N20B20ARP REMAN Engine
11002420309N20B20ARP Engine
11005A42295N20B20ARP REMAN Engine

These numbers refer to selected BMW short-engine or replacement-engine catalog applications.

They are not universal long-block OE numbers.

Please verify the correct part number according to the vehicle VIN, original engine code and actual long-block configuration.




Key attributes

Wholesale and Export Supply

We provide BMW N20B20 2.0T 2WD engine long blocks for international B2B customers.

Our products are suitable for businesses involved in:

  • Automotive engine imports

  • BMW engine wholesale distribution

  • Automotive spare parts trading

  • Professional BMW repair services

  • Engine replacement and rebuilding

  • Automotive engine remanufacturing

We welcome inquiries from engine importers, distributors, wholesalers,

professional repair workshops and automotive parts trading companies.

For wholesale orders, please provide your required quantity, engine version and destination country.

Frequently Asked Questions

Q1: What is the displacement of the BMW N20B20 engine?

The BMW N20B20 has a displacement of 1,997cc, commonly referred to as a 2.0-liter turbocharged gasoline engine.


Q2: What is the difference between N20B20A and N20B20B?

N20B20A and N20B20B are different engine catalog versions. Their compression ratios, applications and part references may vary.

Please confirm the complete engine code before ordering.


Q3: Is the N20B20 2WD engine compatible with xDrive models?

Not automatically. Rear-wheel-drive and xDrive applications may have different oil pans,

mounting configurations and external components. VIN verification is required.


Q4: Which BMW models use the N20B20 engine?

Selected BMW 320i, 328i, 520i, 528i, 420i, 428i, 228i and Z4 sDrive models use N20 engine versions,

depending on market and production year.


Q5: Does the engine long block include the turbocharger?

Not necessarily. Turbocharger and external accessories depend on the actual product configuration.

Please confirm the component list before ordering.


Q6: Can you provide wholesale engine supply?

Yes. We welcome inquiries from automotive engine importers, distributors,

wholesalers and professional repair businesses.

Request a Wholesale Quotation

Looking for a BMW N20B20 2.0T 2WD engine long block supplier?

Contact us for product specifications, engine photos, OE reference checking and wholesale quotations.

To help us confirm the correct engine, please provide:

  • Complete engine code and suffix

  • Vehicle model and chassis code

  • Vehicle production year

  • Vehicle VIN

  • Original OE number

  • Required long block configuration

  • Order quantity

  • Destination country

We welcome inquiries from global BMW parts distributors, engine wholesalers, importers and professional repair workshops.
