What is engine assembly?The EA837 is a series of 3.0-litre V6 engines introduced by the Volkswagen Group (Audi/VW) from 2004 onwards, comprising naturally aspirated FSI and mechanically supercharged TFSI variants.

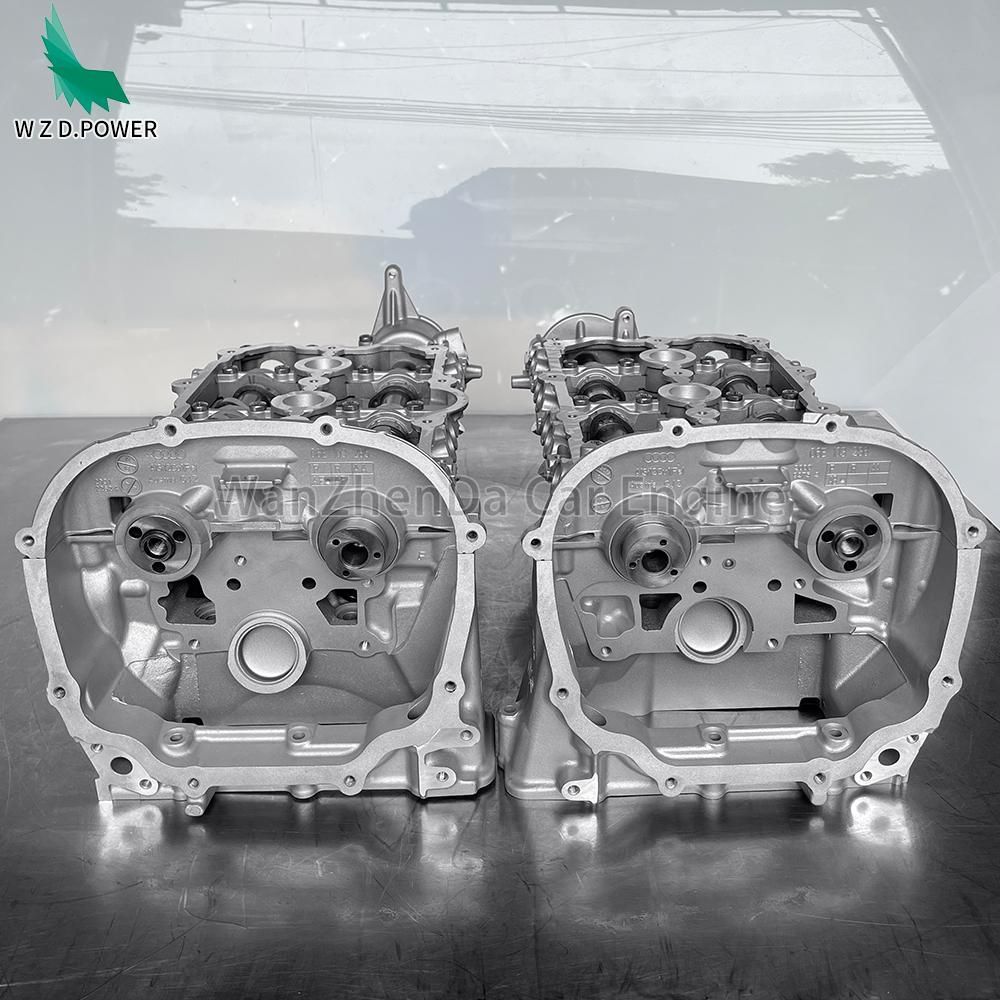

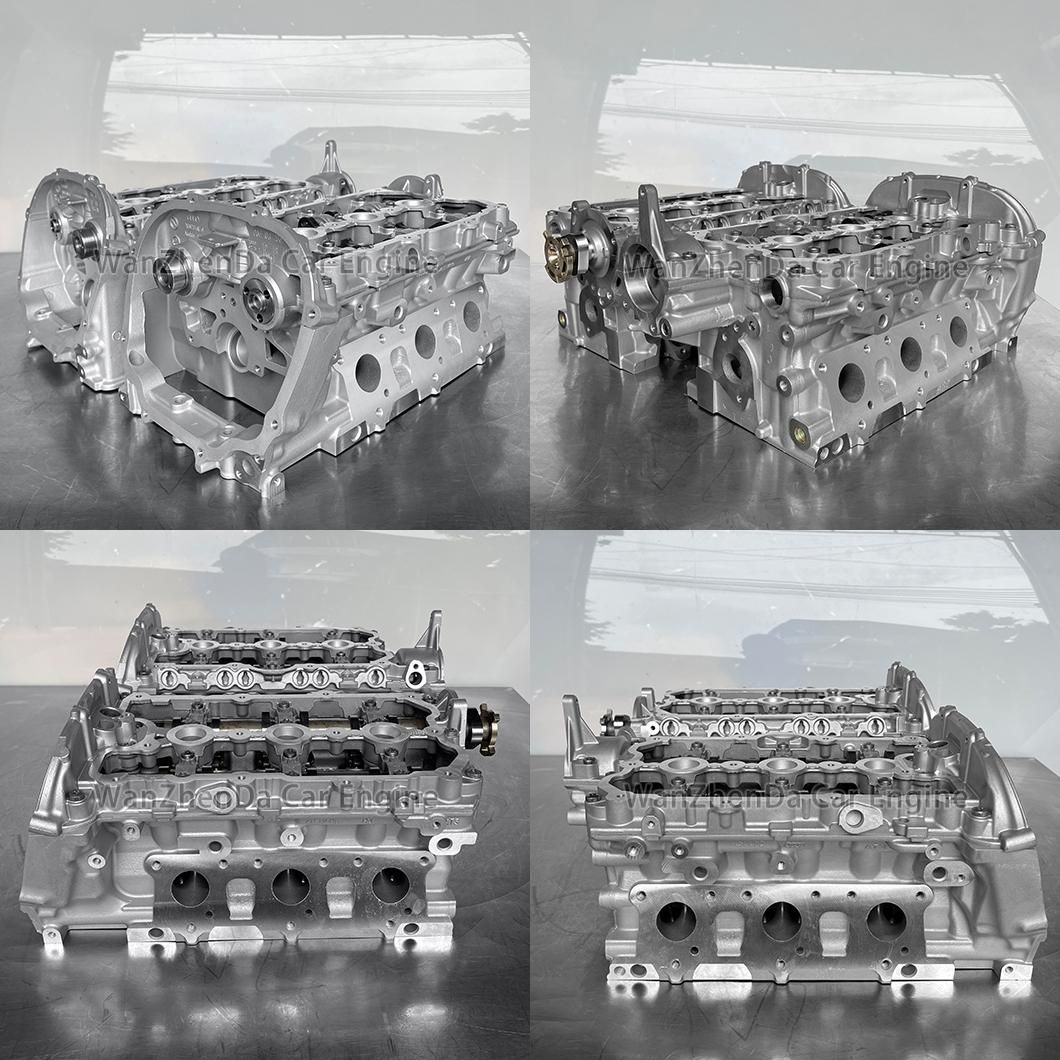

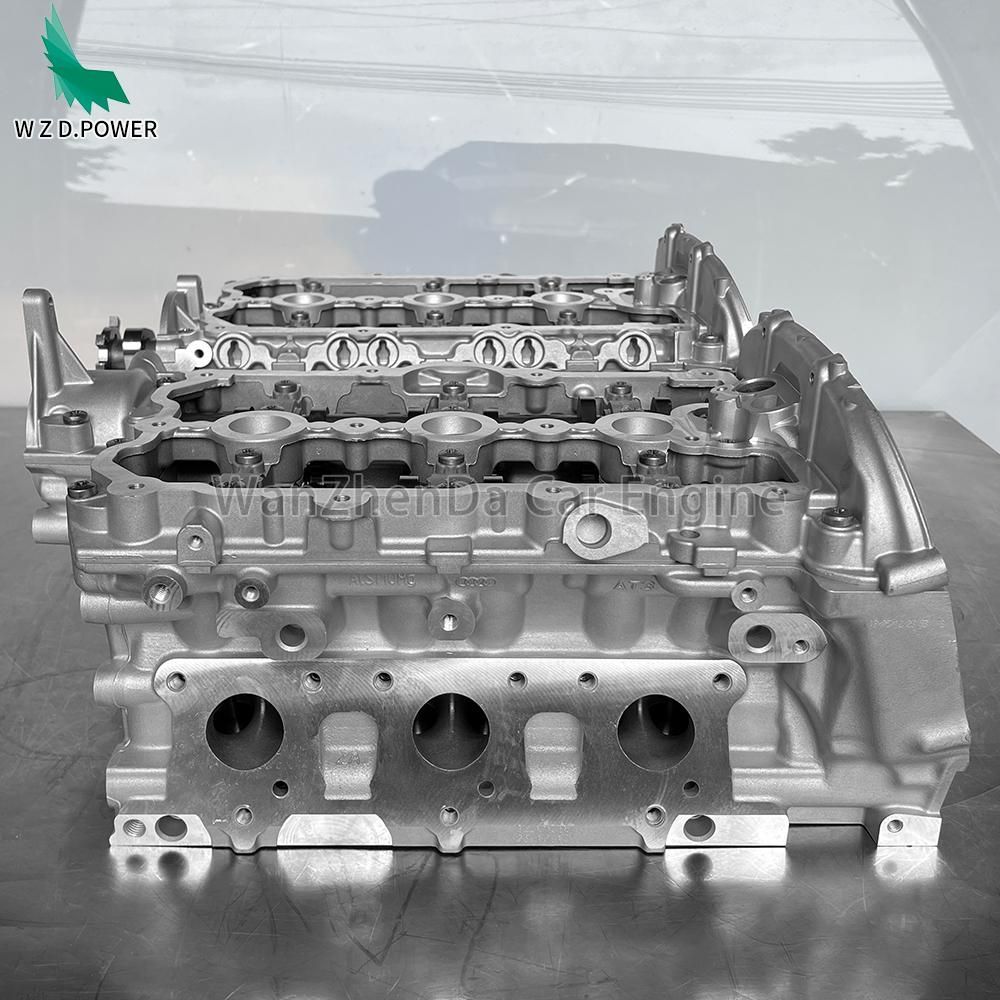

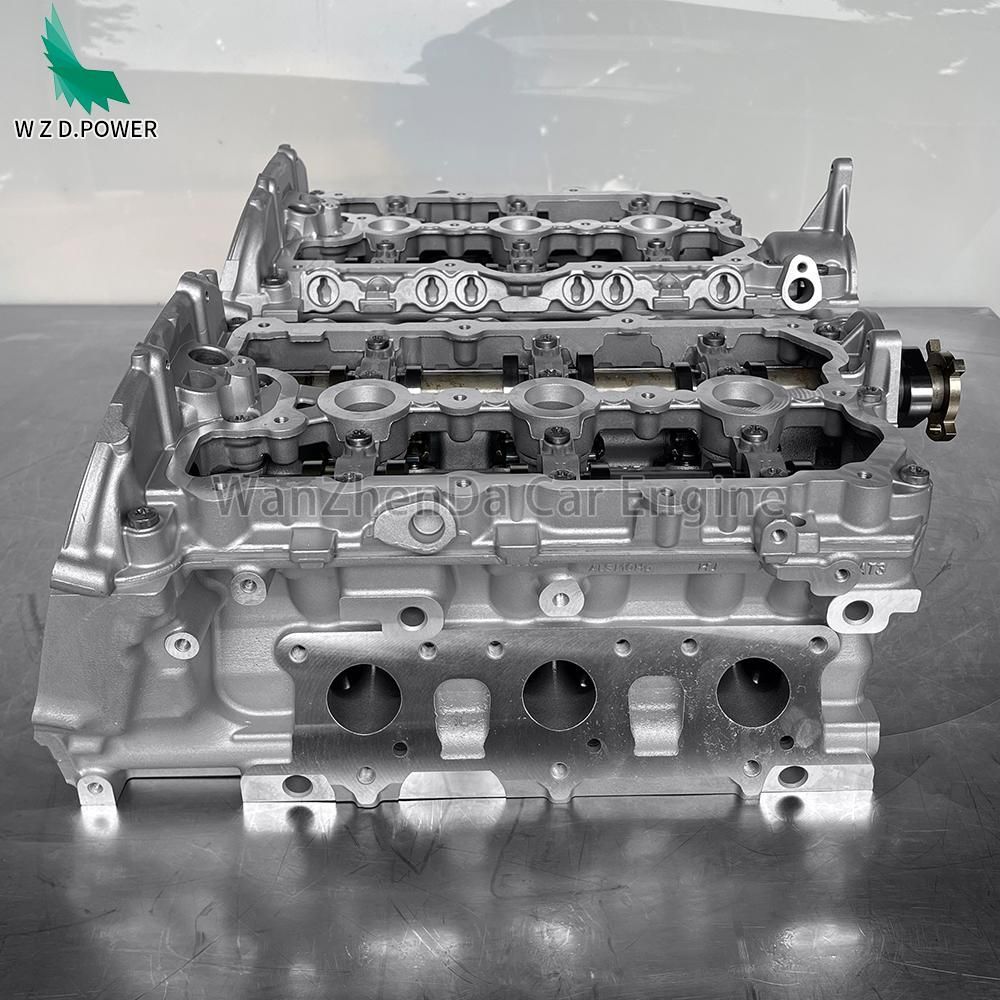

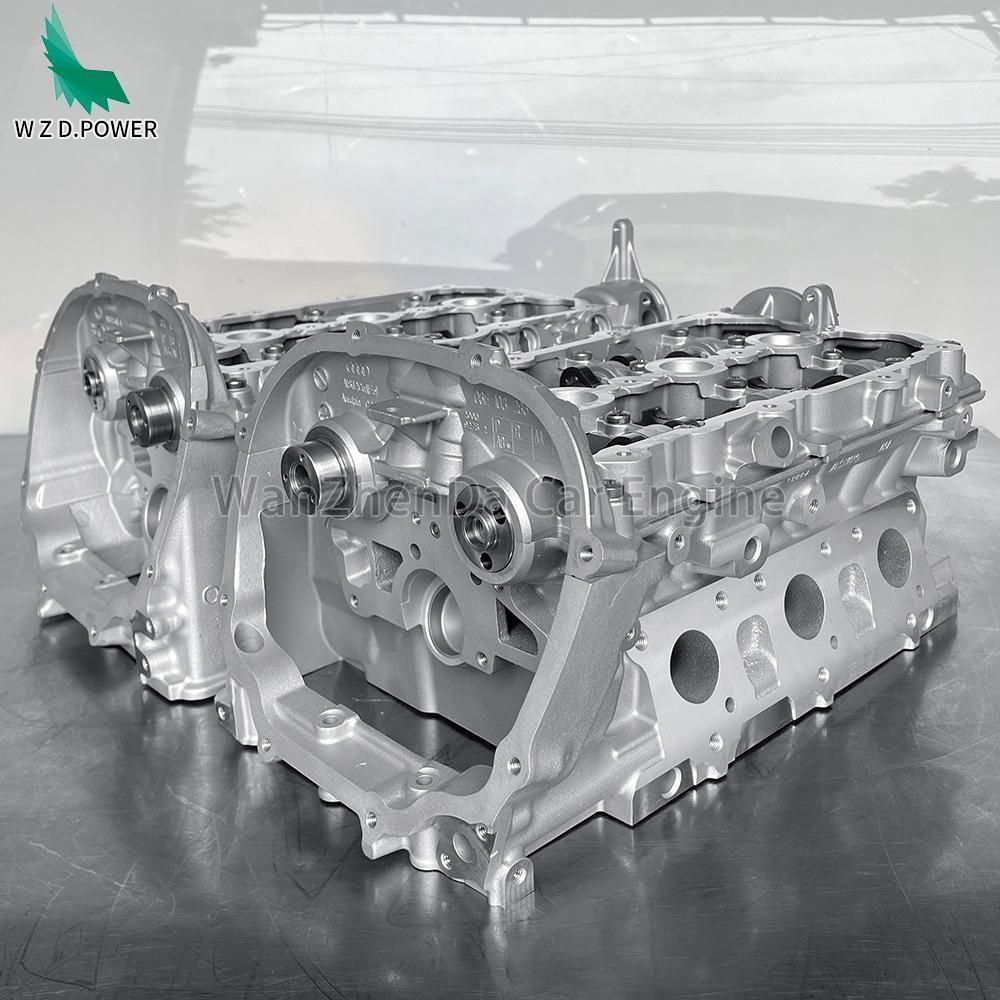

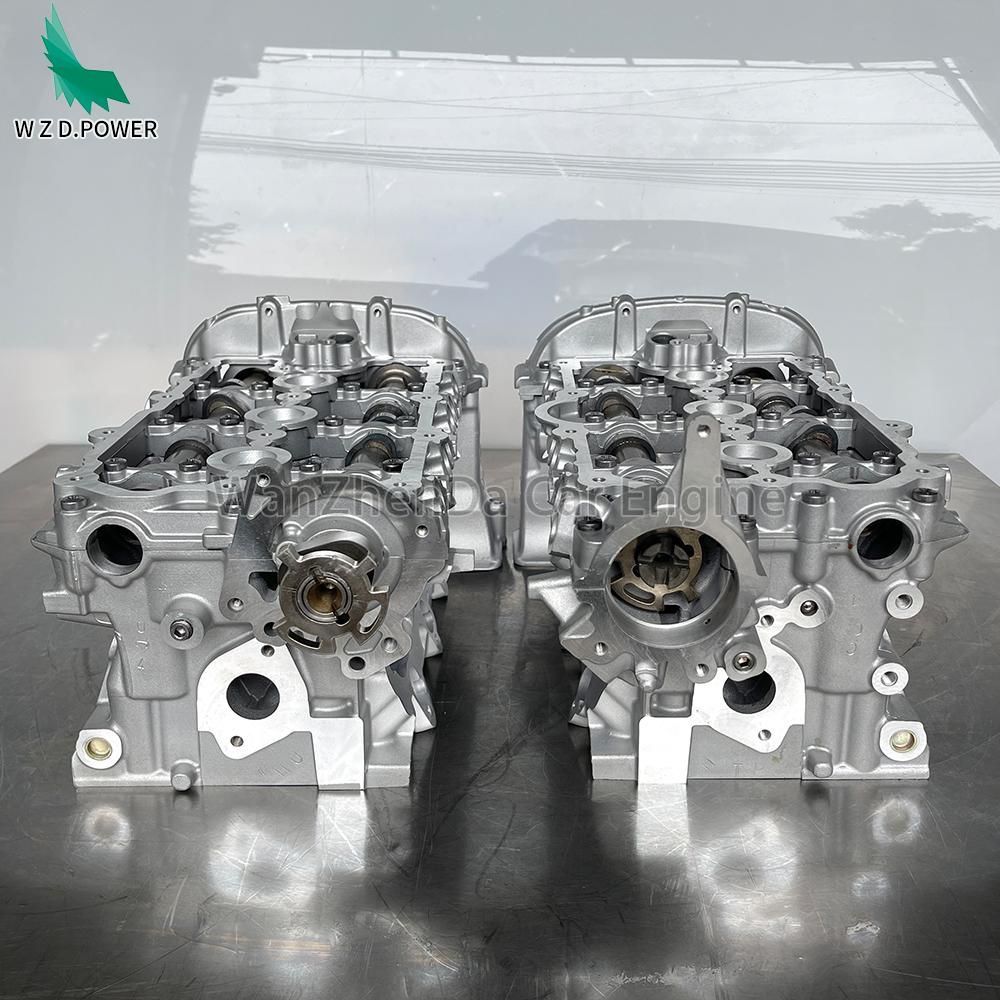

The cylinder head is cast from aluminium alloy and features a DOHC 24-valve design (four valves per cylinder), equipped with hydraulic tappets and a variable valve timing system.
Later supercharged versions (3.0 TFSI) featured further optimisations to the combustion chamber, cooling channels and valve seats, were fitted with an Eaton supercharger,
and incorporated a dual-injection system in certain EVO variants. With independent cylinder heads on the left and right sides (V6 configuration), this engine serves as the
core power unit for mid- to high-end Audi models.
Our products are exported to various parts of the country, and the customers we have worked with have received unanimous praise. The company has invested over 20 million yuan in high-end remanufacturing equipment imported from abroad and a first-class production team in the country. Our warehouse has a total area of over 8000 square meters, with scientific management and sufficient supply of goods.
Engine Type: EA837 3.0 TFSI
Displacement: 2995cc / 3.0L
Configuration: V6 Cylinder
Valve System: DOHC 24 Valve
Fuel System: FSI Direct Injection
Induction Type: Supercharged
Timing System: Timing Chain
Cylinder Head Material: Aluminum Alloy
Reference OE Number: 06E103063AH
Engine code: EA837 (common codes: CAJA, CAKA, CCBA, CJT, CREC, CGWA, CMUA, CTXA, etc.)
Bore × stroke: approx. 84.5 mm × 89 mm (3.0 TFSI)
Suitable for:
Audi A4 3.0 TFSI
Audi A5 3.0 TFSI
Audi A6 3.0 TFSI
Audi A7 3.0 TFSI
Audi Q5 3.0 TFSI
Audi Q7 3.0 TFSI
Audi S4
Audi S5
Audi SQ5
Volkswagen Touareg Hybrid
Common OE numbers:
06E 103 065 D / 06E 103 066 M / 06E 103 066 R
06E 103 066 MX / 06E 103 066 RX
06E 103 403 M / 06E 103 404 M (left and right side distinctions)
06E 103 264 B and other series
(The OE numbers for the left and right cylinder heads differ; confirmation must be made based on the vehicle’s VIN or engine code)
Manufactured from high quality aluminum alloy with precision machining technology. The cylinder head provides excellent heat dissipation, durability and reliable sealing performance under high performance V6 engine conditions.
Suitable for:
Engine rebuilding companies
Audi repair workshops
Performance tuning shops
Automotive parts wholesalers
We provide reliable EA837 cylinder heads with stable production capability and professional export service.
| Model Number | EA837 |
| Place of Origin | Guangdong, China |
| Condition | New |
| Purpose | for replace/repair |
| Type | Gas / Petrol Engine |
| Power | OEM Standards |
| Quantity (pieces) | 1 - 10 | 11 - 50 | > 50 |
| Lead time (days) | 7 | 15 | To be negotiated |
1. Our remanufactured products use accessories provided by well-known brand suppliers such as VICTORREINZ, SCHAEFFLER, KS KOLBENSCHMIDT GmbH, etc.
2. Our product quality is close to the original factory quality, but the price is only 50-60% of the original engine. We can also provide you with a one-year or 100000 kilometer warranty service for the entire machine, and professional after-sales personnel will follow up with you.
3. We have over 15 years of experience in the production and research of automotive engines, and our technical level and personnel training are very scientific and mature. Customers who have worked with us have expressed their agreement with our products and after-sales service.
4. 2018 It has achieved an annual production capacity of 2200 units and has become a major supplier of high-end engine remanufacturing and parts in China's automotive aftermarket.
5. In April 2021, T/CAAMTB passed the certification company of China Automobile Research and Huacheng. 19-2019 Certification of the management system requirements of gas vehicle parts remanufacturing enterprisesIn October 2021, he became a member of the National Green Manufacturing Technology Standardization Committee and participated in the drafting of the Technical Specification for Assembly of Remanufacturing Mechanical and Electrical Products.
