Cylinder Block

Cylinder Block

Mercedes-Benz M272 3.0L V6 Cylinder Block / Short Block for C280 C300 E280 E300 SLK 280 (2004-2013)

The M272 3.0L (M272 E30 / KE30) is the mid-displacement version of Mercedes-Benz’s M272 series of 90° V6 naturally aspirated gasoline engines.

It was introduced in 2004–2005 to replace the older M112 E28.

It shares the same aluminum alloy cylinder block architecture as the 2.5L (E25) and 3.5L (E35) engines in the same series, but features a smaller

bore and a crankshaft with a shorter stroke. It was manufactured at the Stuttgart-Bad Cannstatt plant in Germany from approximately 2004 to 2013.

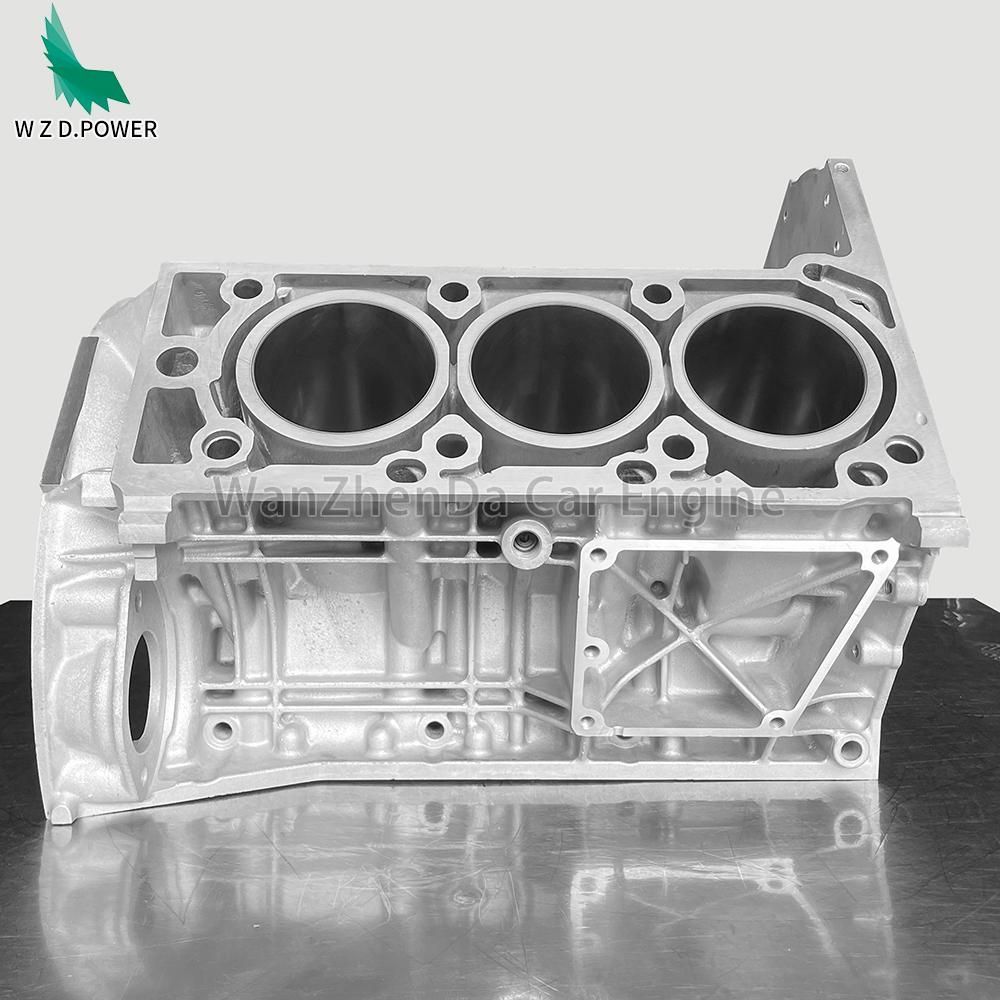

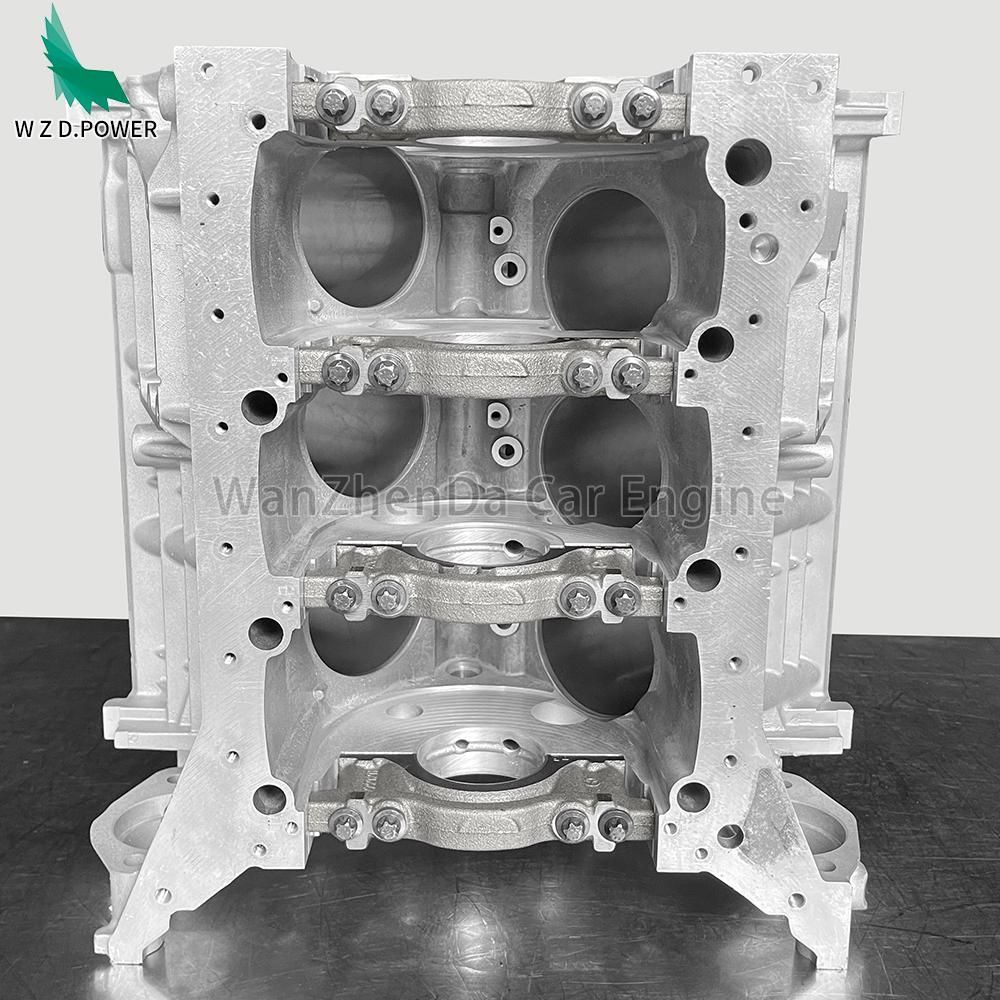

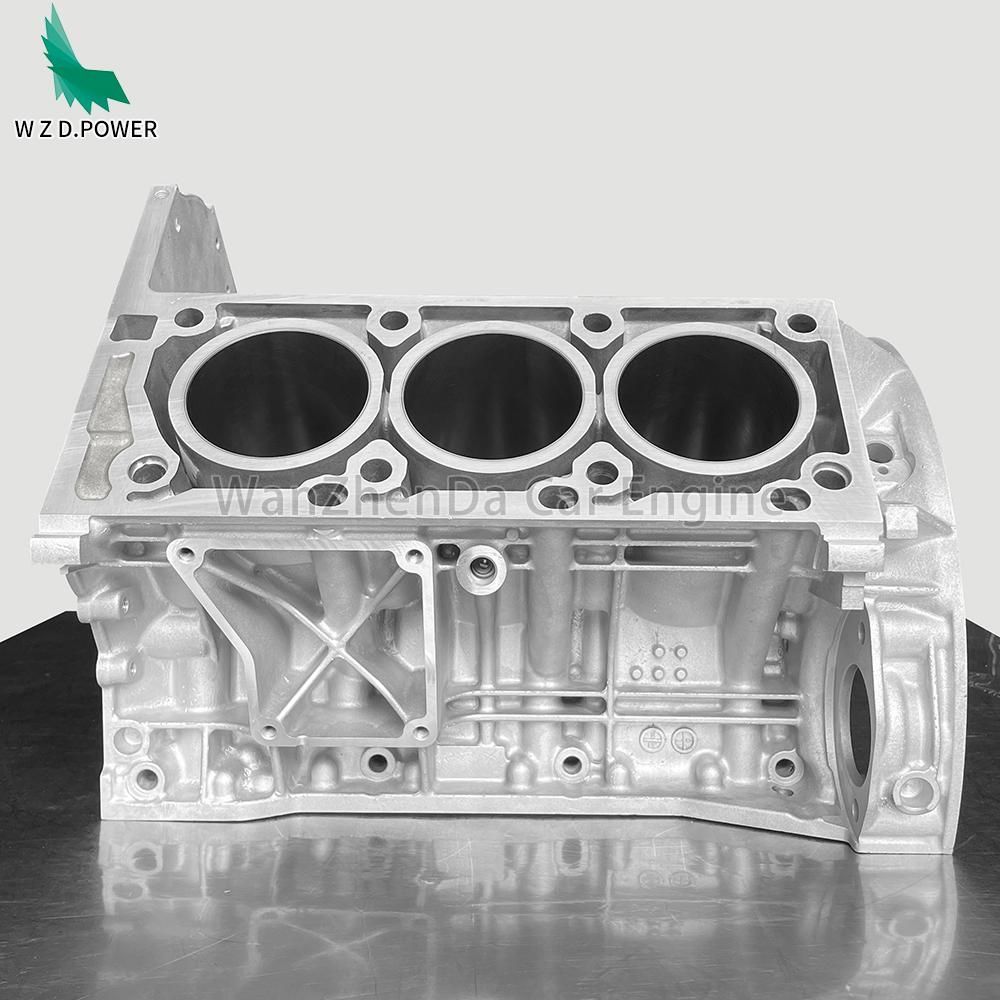

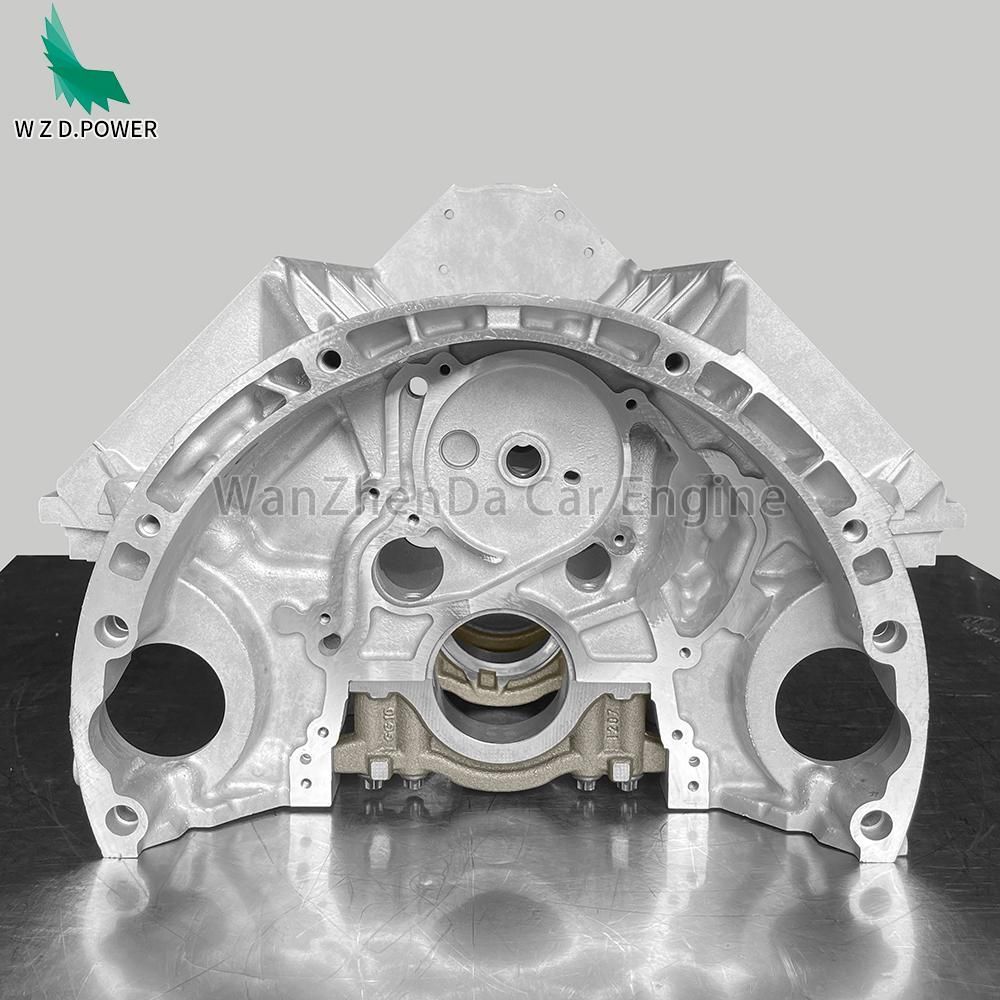

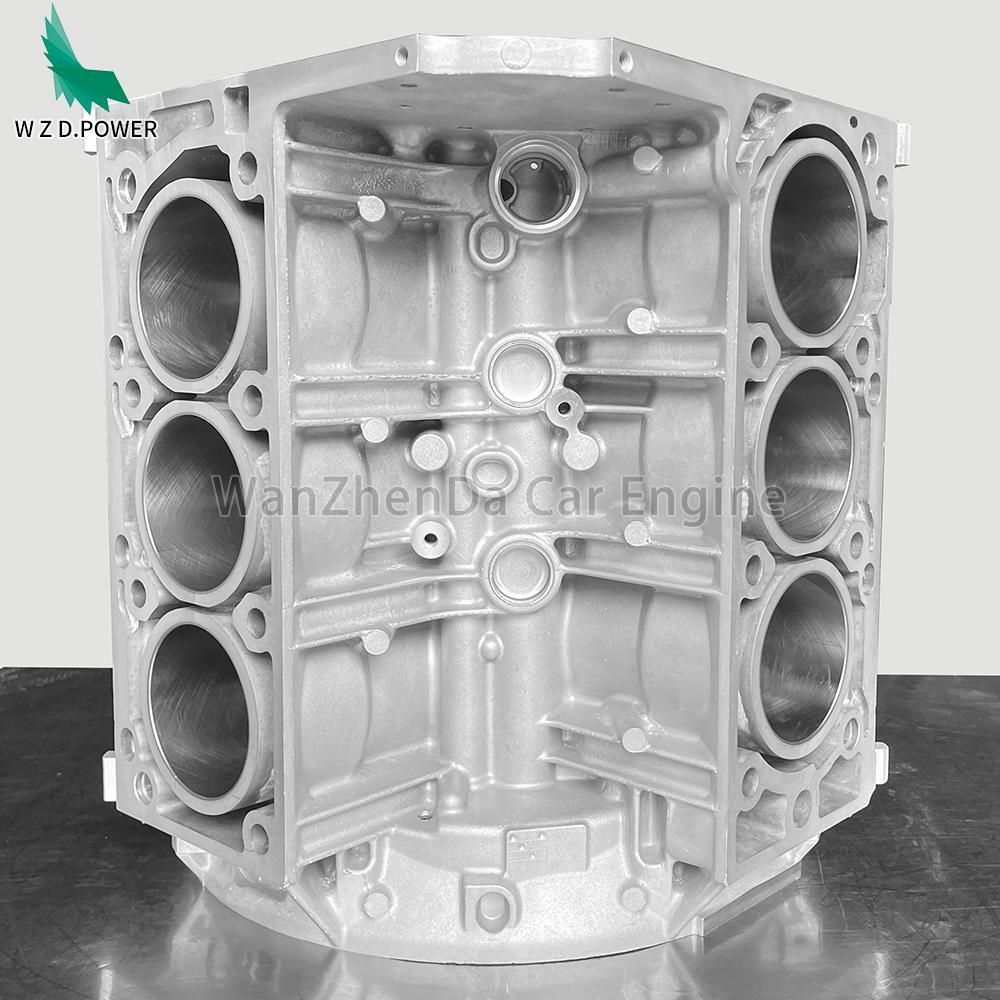

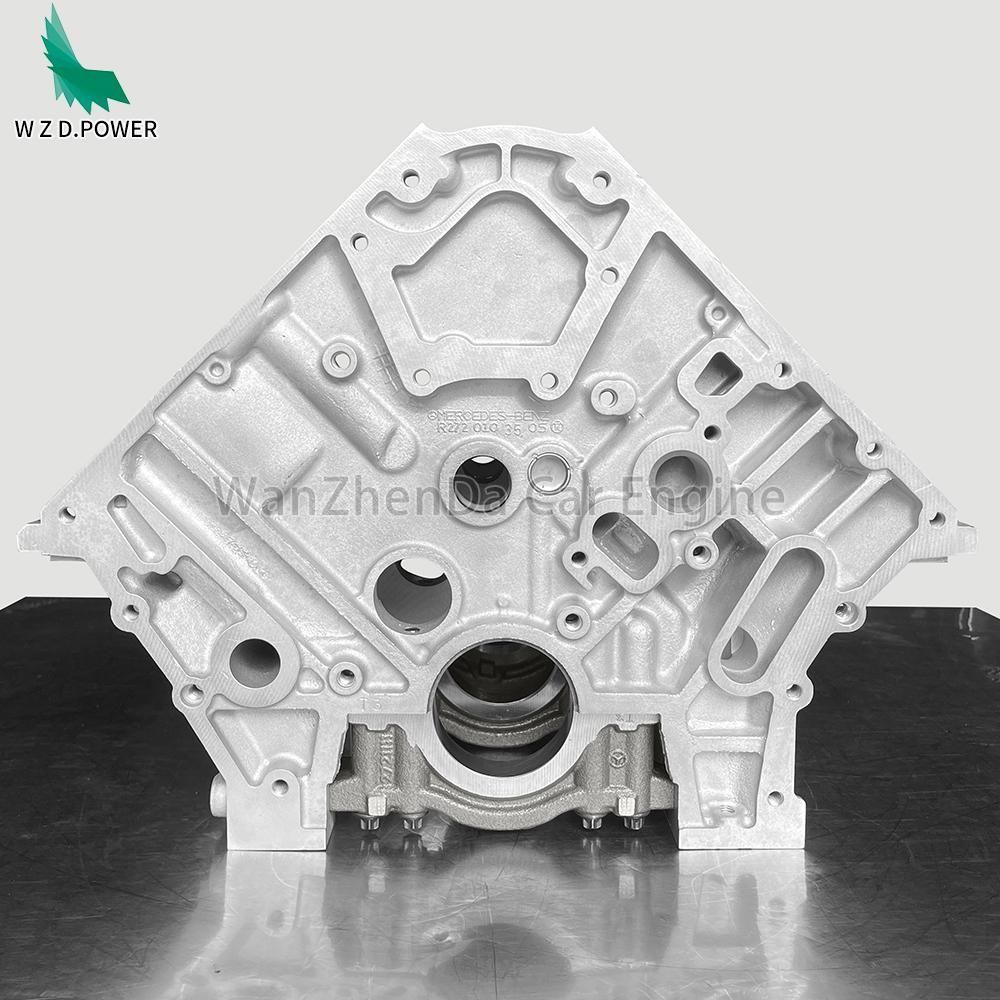

The cylinder block features a die-cast aluminum alloy construction (90° angle) with embedded aluminum-silicon alloy liners (Al-Si liners),

and is equipped with a balance shaft, DOHC (dual overhead camshafts), continuously variable valve timing (intake and exhaust),

and hydraulic tappets. Overall, it is renowned for its smooth operation and reliability.


Description

Our products are exported to various parts of the country, and the customers we have worked with have received unanimous praise.

The company has invested over 20 million yuan in high-end remanufacturing equipment imported from abroad and a first-class production

team in the country. Our warehouse has a total area of over 8000 square meters, with scientific management and sufficient supply of goods.

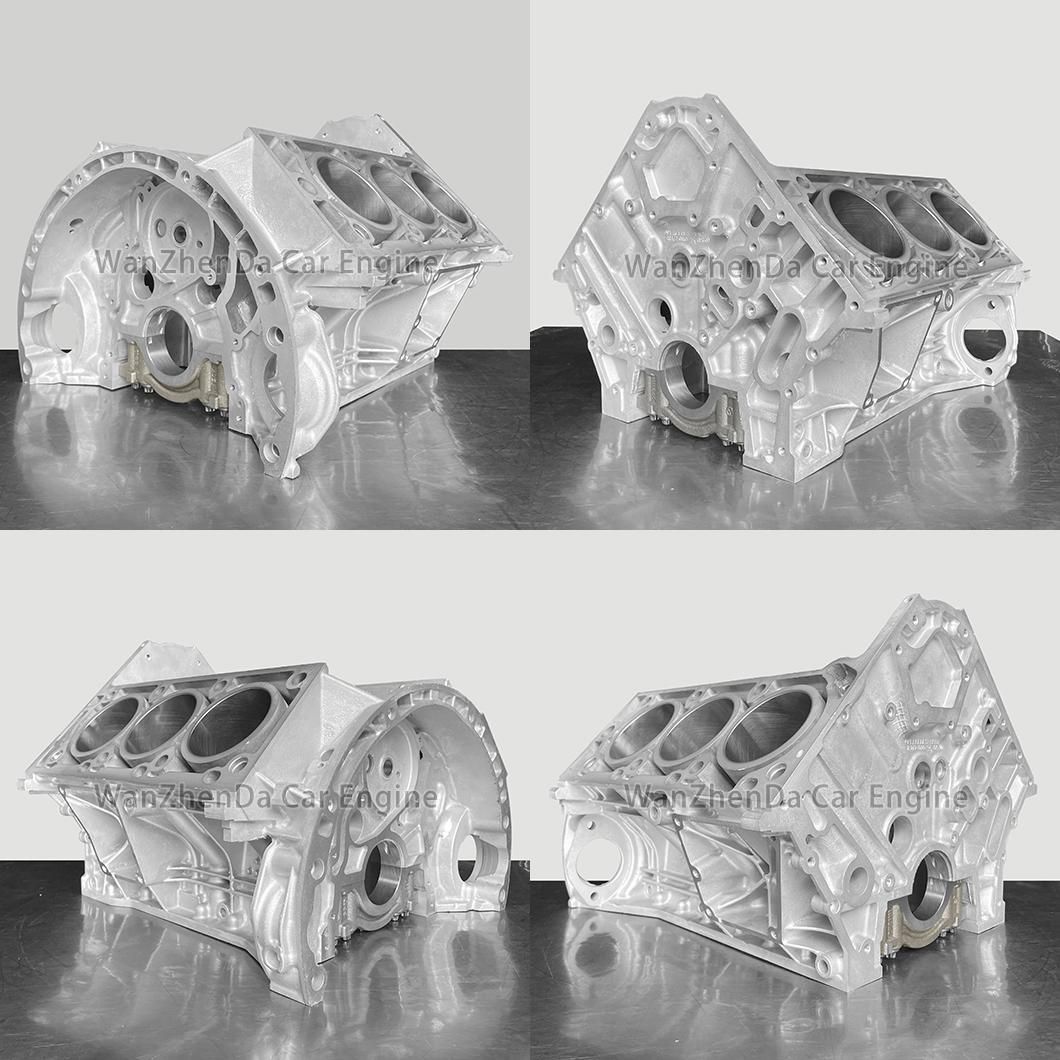

M272 Middle Cylinder Block Assembly for Mercedes-Benz C280 C300 Glk300 Clk280 Slk280 E280 E300 Cls280 Cls300 2.5L/3.0L/3.5L

ngine Specifications

ItemSpecification
Engine VersionM272 E30
Engine CodeM272.9xx (specific suffix to be confirmed)
Displacement2,996 cc / 3.0L
Cylinder Configuration90-degree V6
Number of Cylinders6
Number of Valves24
Bore88.0 mm
StrokeApprox. 82.1 mm
Compression RatioApprox. 11.3:1
AspirationNaturally Aspirated
Fuel TypeGasoline
Fuel InjectionMulti-Point Fuel Injection
Valve TrainDOHC
Valve TimingContinuously Variable Valve Timing
Timing SystemDouble-Row Roller Timing Chain
Intake SystemVariable-Length Intake Manifold
Maximum PowerApprox. 170 kW / 231 PS
Maximum TorqueApprox. 300 Nm

Specifications may vary depending on the complete engine code, market and vehicle application.

Vehicle Applications

The M272 E30 engine family is used in selected Mercedes-Benz applications.

Mercedes-Benz C-Class

  • C280 W203

  • C280 4MATIC W203

  • C280 W204

  • C300 W204

  • C300 4MATIC W204

Mercedes-Benz E-Class

  • E280 W211

  • E280 4MATIC W211

  • E300 W212

Mercedes-Benz CLK-Class

  • CLK280 C209

Mercedes-Benz CLS-Class

  • CLS280 C219

  • Selected CLS300 C219 applications

Mercedes-Benz SLK-Class

  • SLK280 R171

Mercedes-Benz SL-Class

  • SL280 R230

  • Selected SL300 R230 applications

Mercedes-Benz S-Class

  • S280 W221

  • S300 W221

Mercedes-Benz R-Class

  • R280 W251

  • Selected R300 W251 applications

Mercedes-Benz GLK-Class

  • Selected GLK300 X204 applications

Vehicle applications vary by market, production date and engine suffix.

Please provide the complete vehicle VIN and original engine number to confirm compatibility before ordering.

OE Reference Numbers

The following Mercedes-Benz part number is listed in the genuine parts catalog as a remanufactured long block engine:

  • 272010794480

Associated superseded part number references include:

  • 2720104000

  • 2720105900

  • 272010590060

  • 272010590080

  • 272010590088

  • 2720106445

  • 272010644580

  • 272010794460

Important: These catalog references should not be treated as universal M272 E30 fitment numbers.

Exact applicability must be confirmed using the vehicle VIN, original engine number and Mercedes-Benz parts catalog.


Key attributes
Industry-specific Attributes

Why Choose Us?

We supply automotive engine assemblies and engine components for international B2B customers.

Our products and services are intended for:

  • Automotive engine importers

  • Engine wholesalers and distributors

  • Professional engine rebuilding companies

  • Automotive repair workshops

  • Mercedes-Benz specialist repair centers

  • International automotive parts dealers

We can assist with:

  • Engine code identification

  • OE reference number checking

  • VIN-based fitment verification

  • Product configuration confirmation

  • Wholesale and bulk order inquiries

  • Export packing and shipping coordination

  • Technical product information for purchasing decisions

Frequently Asked Questions

Q1: What vehicles use the Mercedes-Benz M272 E30 engine?

Selected C280, C300, E280, E300, CLK280, CLS280, SLK280, SL280, S300 and R280 models use

different M272 E30 engine versions. Exact compatibility depends on the engine suffix and VIN.


Q2: Is the M272 E30 the same as the M272 E35?

No. Both belong to the M272 engine family, but the E30 has a 2,996 cc displacement, an 88 mm

bore and an approximately 82.1 mm stroke. The E35 has different bore and stroke specifications and different internal components.


Q3: Are all M272 E30 engine versions interchangeable?

No. Different engine suffixes may have different oil pans, mounting configurations, engine accessories

and vehicle applications. Always verify the complete engine code and original part number.


Q4: Does the long block include the intake manifold and external accessories?

Not necessarily. Included components depend on the actual product configuration.

Please confirm the supplied parts list before placing an order.


Q5: How can I confirm the correct replacement engine?

Please provide the vehicle VIN, production year, original engine code and original engine part number.

Our sales team can help verify the correct engine application and configuration.

Contact Us for Wholesale Pricing

Looking for a Mercedes-Benz M272 E30 3.0L V6 engine long block?

Send us your required quantity, vehicle model, VIN or original engine number.

We will help confirm the correct engine version and product configuration and provide a wholesale quotation for your business.


Industry-specific Attributes
Place of OriginGuangdong, China
Conditionremanufactured
Purposefor replace/repair
TypeGas / Petrol Engine
PowerOEM Standards


Lead time
Quantity (pieces)1 - 1011 - 50> 50
Lead time (days)715To be negotiated
Our Strengths

1. Our remanufactured products use accessories provided by well-known brand suppliers such as VICTORREINZ, SCHAEFFLER, KS KOLBENSCHMIDT GmbH, etc.


2. Our product quality is close to the original factory quality, but the price is only 50-60% of the original engine. We can also provide you with a one-year or 100000 kilometer warranty service for the entire machine, and professional after-sales personnel will follow up with you.


3. We have over 15 years of experience in the production and research of automotive engines, and our technical level and personnel training are very scientific and mature. Customers who have worked with us have expressed their agreement with our products and after-sales service.


4. 2018 It has achieved an annual production capacity of 2200 units and has become a major supplier of high-end engine remanufacturing and parts in China's automotive aftermarket.


5. In April 2021, T/CAAMTB passed the certification company of China Automobile Research and Huacheng. 19-2019 Certification of the management system requirements of gas vehicle parts remanufacturing enterprisesIn October 2021, he became a member of the National Green Manufacturing Technology Standardization Committee and participated in the drafting of the Technical Specification for Assembly of Remanufacturing Mechanical and Electrical Products.
