Cylinder Block
Cylinder Block
CLX is the engine code for Audi’s EA837 series 2.5L V6 naturally aspirated gasoline engine, primarily used in C7 platform models for the Chinese market and select global markets.
This engine belongs to the Audi/Volkswagen Group’s V6 engine family. It features an aluminum alloy cylinder block, DOHC (dual overhead camshaft) configuration, and a multipoint/direct injection system, emphasizing smooth operation and fuel efficiency. It was produced from approximately 2012 to 2018 and was primarily used in mid- to large-size sedans such as the Audi A6L, A7, and A8L.

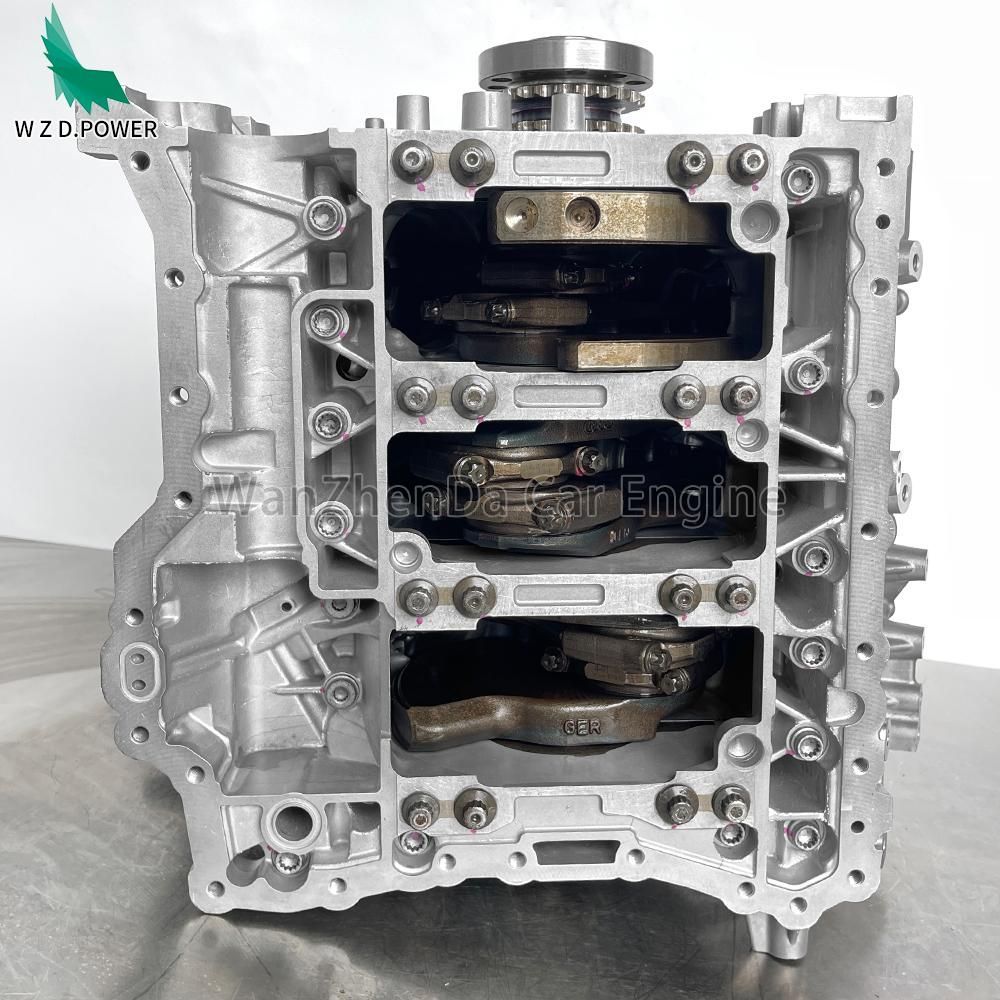

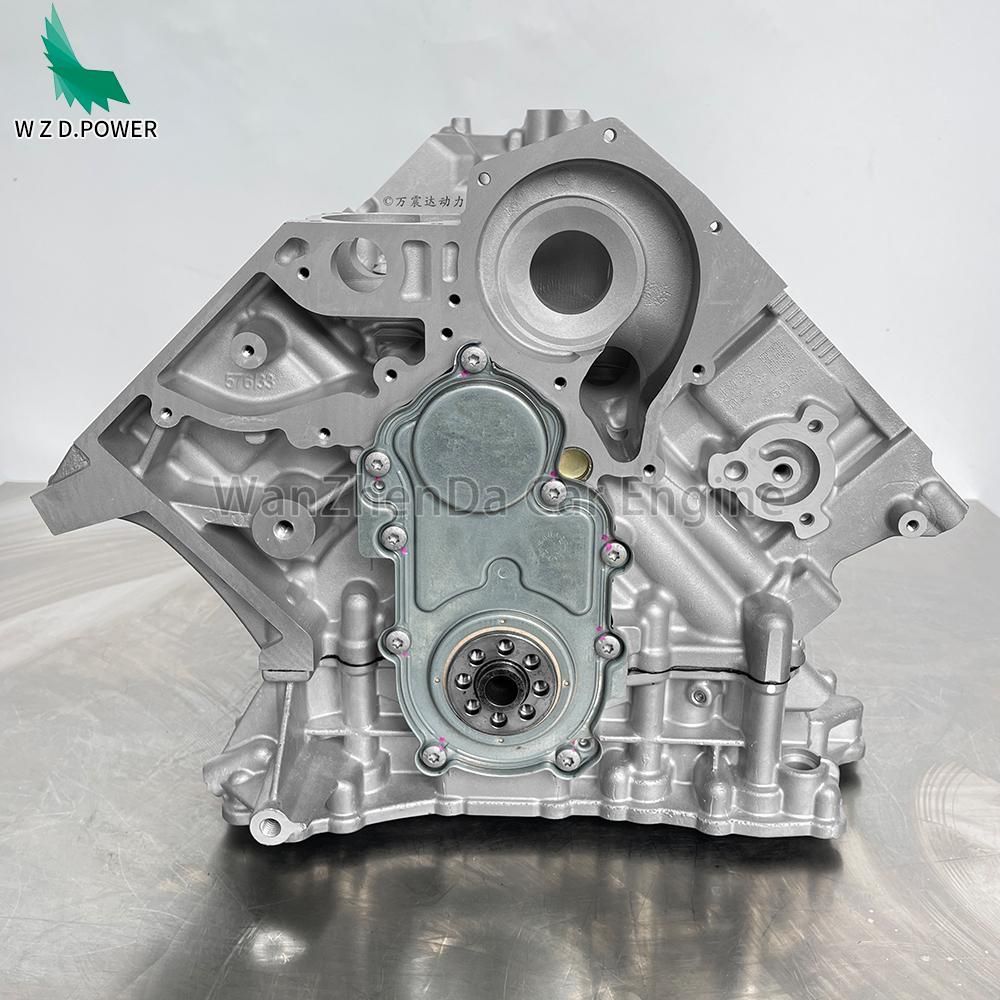

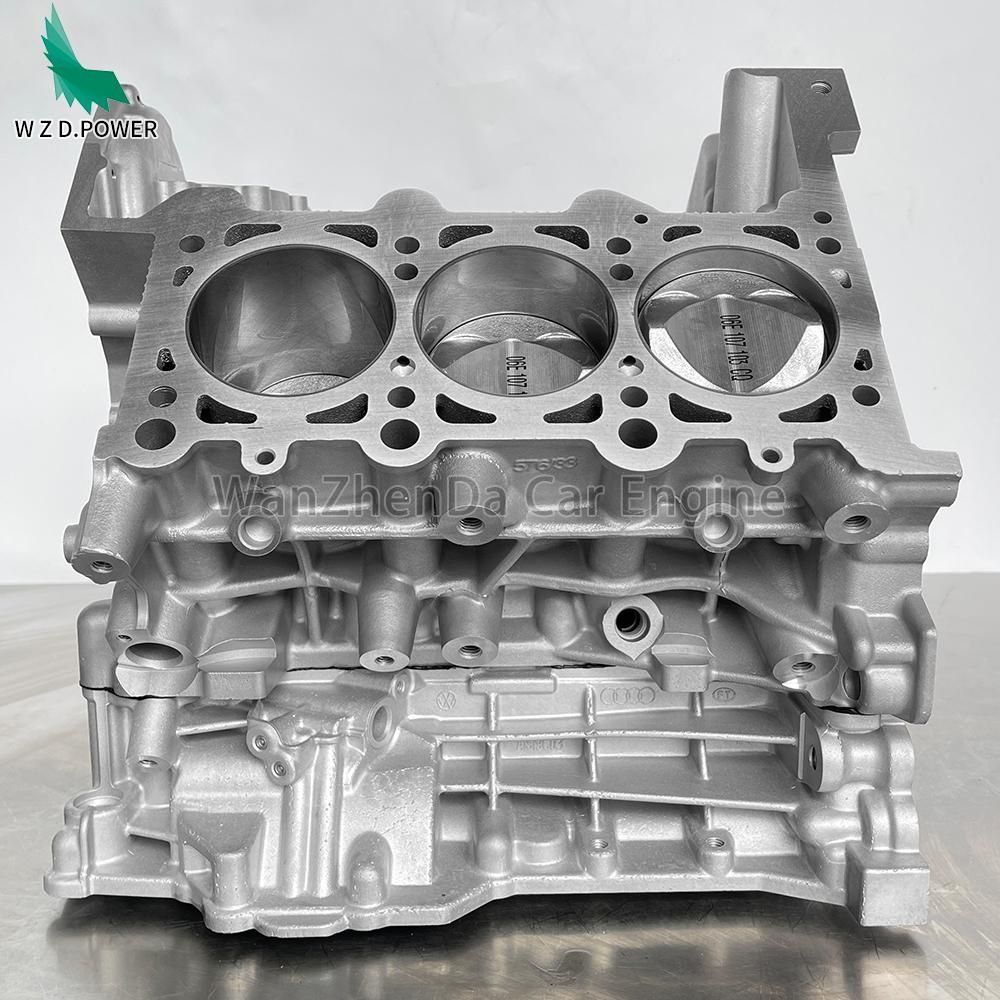

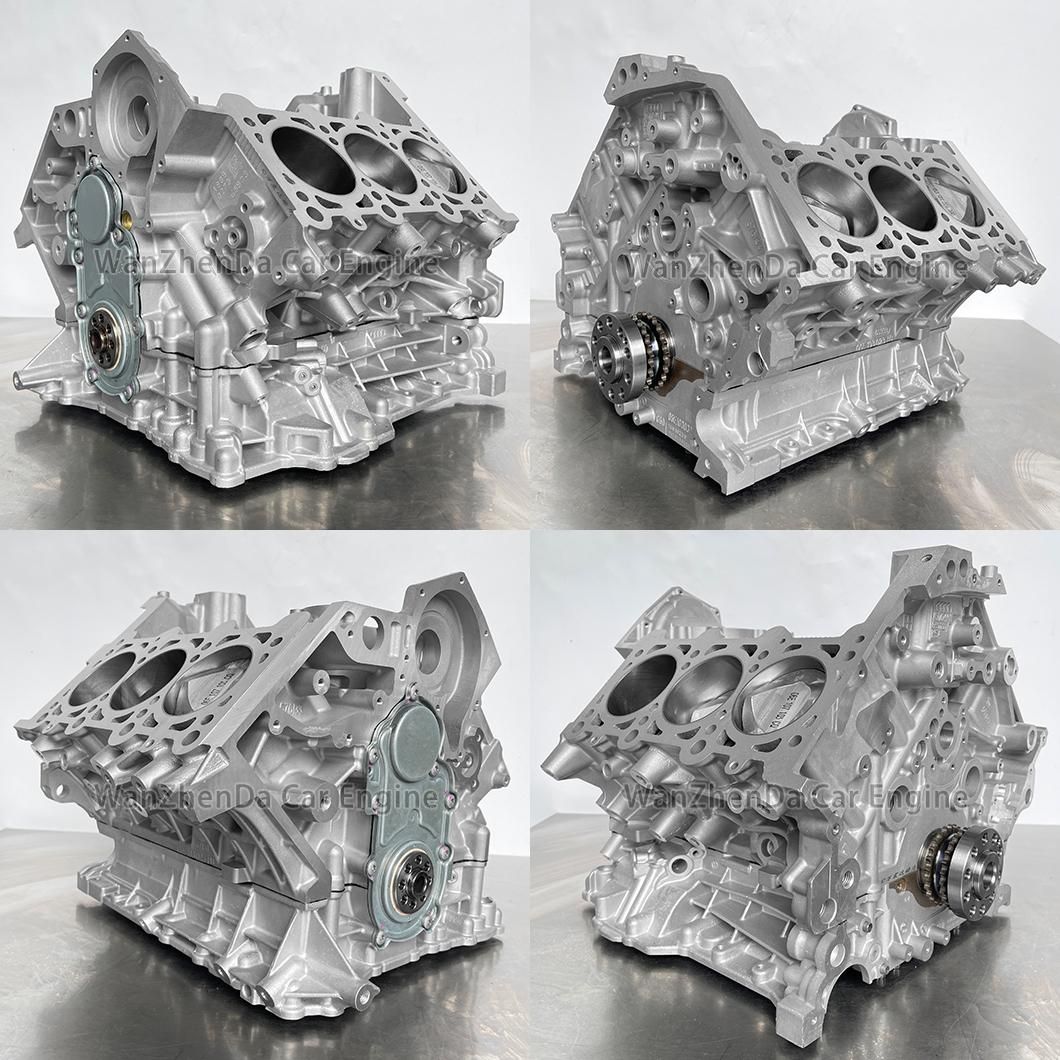

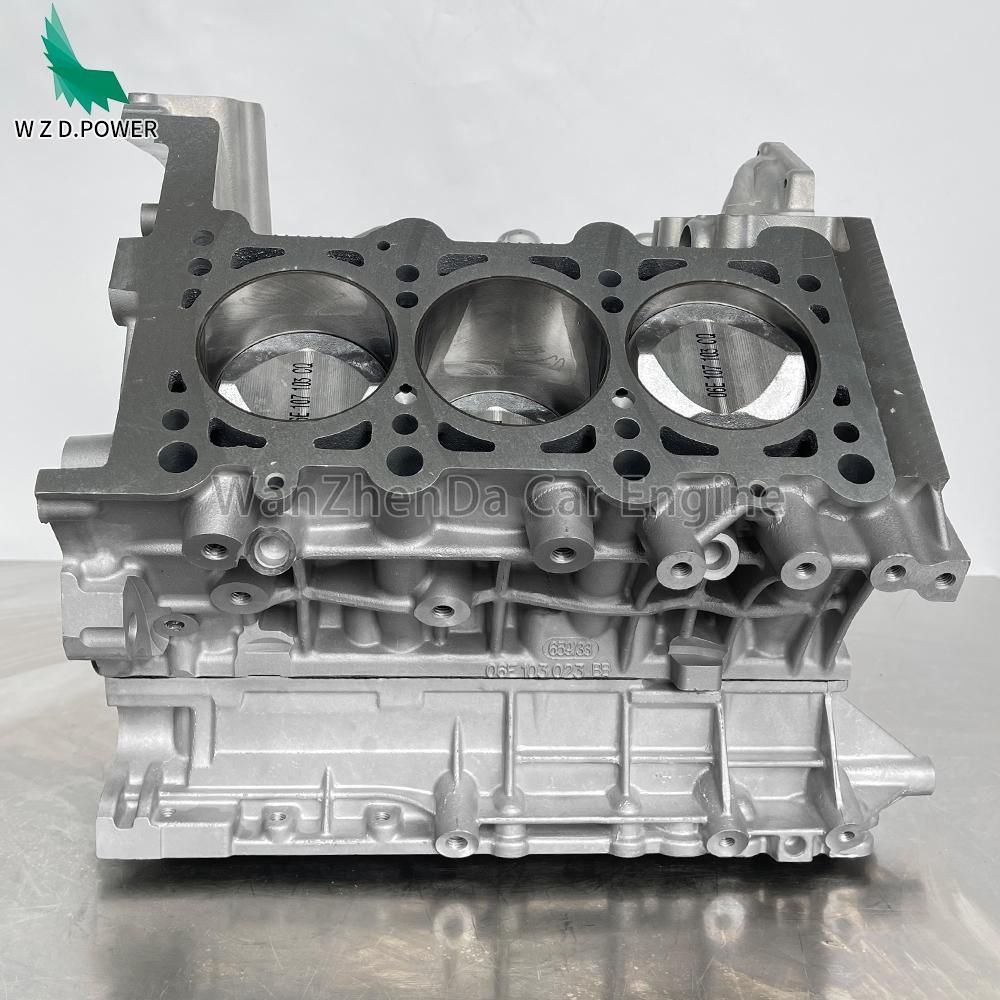

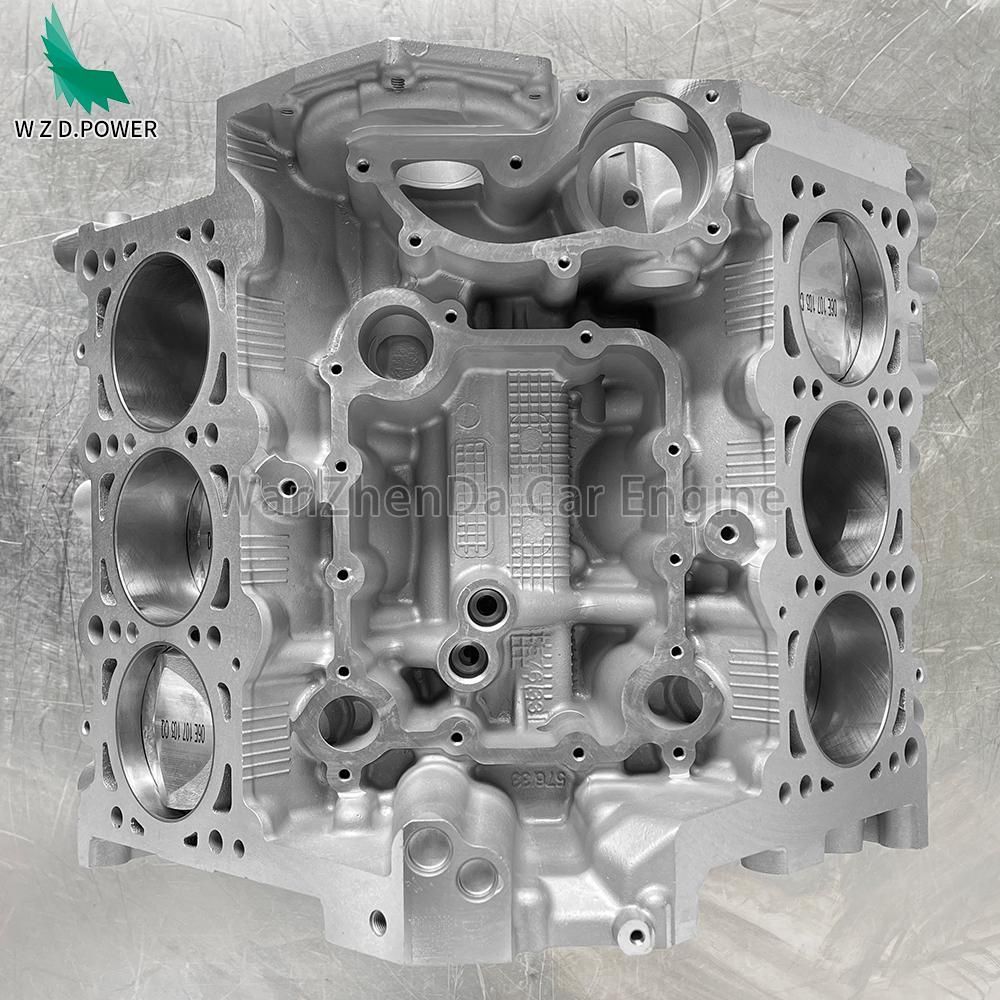

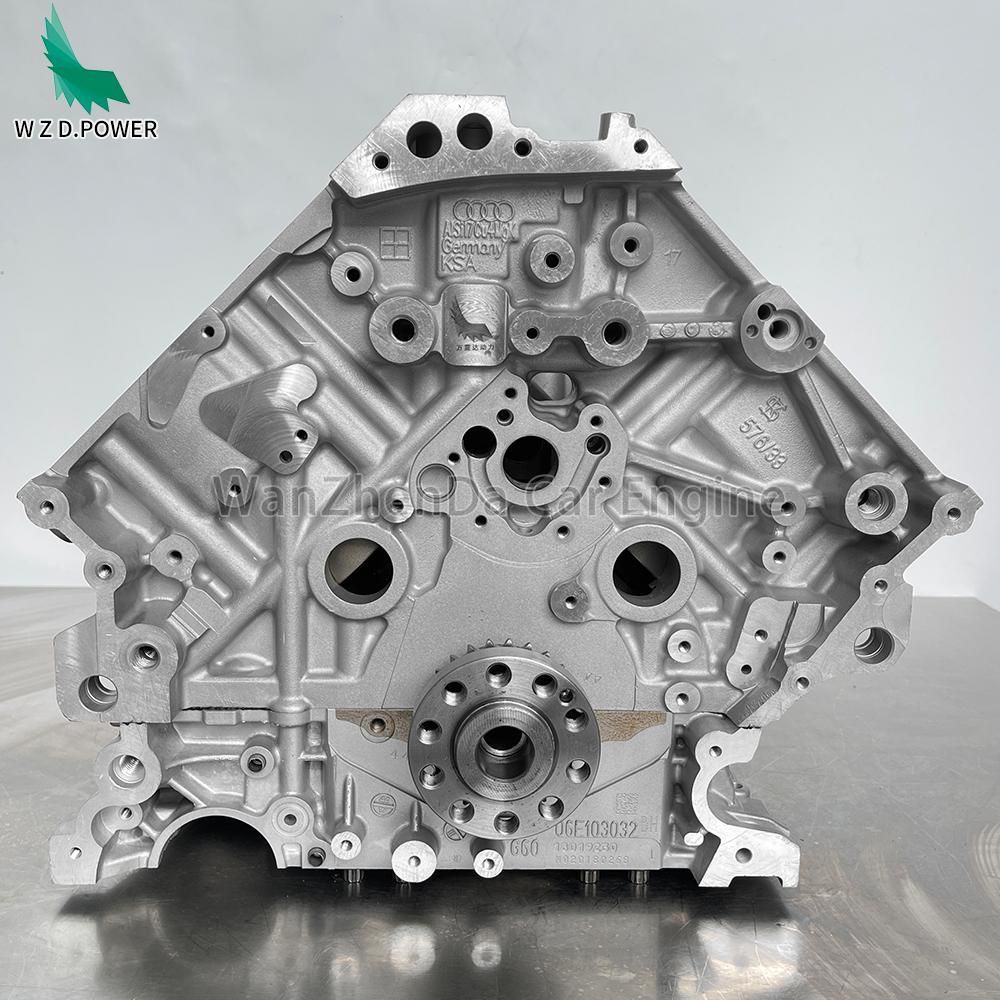

The cylinder block is constructed of die-cast aluminum alloy, featuring a lightweight design combined with precision casting processes to ensure high strength and excellent heat dissipation.
Our products are exported to various parts of the country, and the customers we have worked with have received unanimous praise. The company has invested over 20 million yuan in high-end remanufacturing equipment imported from abroad and a first-class production team in the country. Our warehouse has a total area of over 8000 square meters, with scientific management and sufficient supply of goods.
Specifications:
Displacement: 2498–2521 cc (approx. 2.5 L)
Cylinder Configuration: V6 (approx. 90° angle)
Bore × Stroke: approx. 84.5 mm × approx. 92.8 mm (subject to specific model)
Compression Ratio: approx. 10.5–12.0:1
Cylinder block material: Aluminum alloy
Valve train: DOHC, chain-driven, variable valve timing, hydraulic tappets
Emissions: EURO 5 / China V
Compatible Models (Primarily applicable, approx. 2012–2018)
Audi:
A6L (C7) 2.5L
A7 (C7) 2.5L
A8L (D4) select 2.5L versions
Select related Volkswagen Group models (primarily for the Chinese market)
(Please verify the engine code CLX and VIN for confirmation.)
Engine Assembly / Core Cylinder Block Reference: 06E100032S, 06E100032X
| Model Number | CLX |
| Place of Origin | Guangdong, China |
| Condition | remanufactured |
| Purpose | for replace/repair |
| Type | Gas / Petrol Engine |
| Power | OEM Standards |
| Quantity (pieces) | 1 - 10 | 11 - 50 | > 50 |
| Lead time (days) | 7 | 15 | To be negotiated |
1. Our remanufactured products use accessories provided by well-known brand suppliers such as VICTORREINZ, SCHAEFFLER, KS KOLBENSCHMIDT GmbH, etc.
2. Our product quality is close to the original factory quality, but the price is only 50-60% of the original engine. We can also provide you with a one-year or 100000 kilometer warranty service for the entire machine, and professional after-sales personnel will follow up with you.
3. We have over 15 years of experience in the production and research of automotive engines, and our technical level and personnel training are very scientific and mature. Customers who have worked with us have expressed their agreement with our products and after-sales service.
4. 2018 It has achieved an annual production capacity of 2200 units and has become a major supplier of high-end engine remanufacturing and parts in China's automotive aftermarket.
5. In April 2021, T/CAAMTB passed the certification company of China Automobile Research and Huacheng. 19-2019 Certification of the management system requirements of gas vehicle parts remanufacturing enterprisesIn October 2021, he became a member of the National Green Manufacturing Technology Standardization Committee and participated in the drafting of the Technical Specification for Assembly of Remanufacturing Mechanical and Electrical Products.
