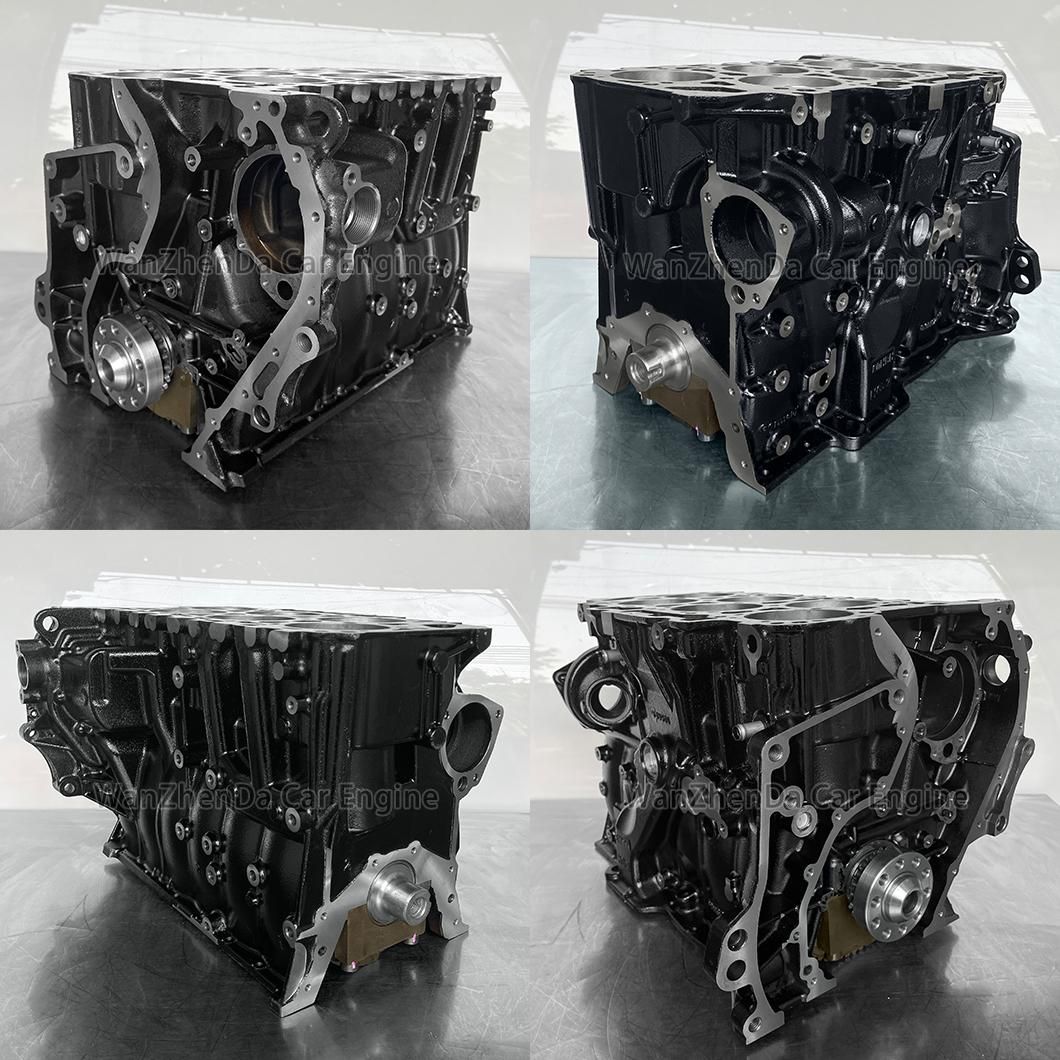

BHK is the engine code for the Volkswagen Group’s EA390 series 3.6L VR6 FSI naturally aspirated gasoline engine.
Produced from 2005 to 2010, this engine is an upgraded version of the VR6 (narrow-angle V6) family, featuring FSI direct injection technology that emphasizes smooth operation and power delivery.
It was primarily installed in the first-generation Audi Q7 and Volkswagen Touareg models. The VR6 design results in a compact engine structure suitable for both transverse and longitudinal mounting.
Material: High-strength special alloy cast iron (Cast Iron / Vermicular / Alloy Gray Iron with reinforced structure) or high-strength aluminum-silicon hybrid reinforced cylinder block
(depending on the VR6 casting batch; the BHK, as the cylinder block for high-displacement VR6 engines, is renowned for its exceptional resistance to high pressure and high-temperature deformation).
Inner Wall Finish: The cylinder bore walls have undergone high-precision honing, providing unparalleled wear resistance, high-temperature resistance, and knock resistance, enabling them
to perfectly withstand the intense combustion pressures generated by the 3.6L FSI’s high compression ratio.
Our products are exported to various parts of the country, and the customers we have worked with have received unanimous praise. The company has invested over 20 million yuan in high-end remanufacturing equipment imported from abroad and a first-class production team in the country. Our warehouse has a total area of over 8000 square meters, with scientific management and sufficient supply of goods.
Specifications:
Displacement: 3,597 cc (3.6 L)
Cylinder Configuration: VR6 (approx. 10.6°–15° narrow angle)
Bore × Stroke: 89.0 mm × 96.4 mm
Compression Ratio: 12.0:1
Cylinder block material: Cast iron (Grey Cast Iron)
Valve train: DOHC, chain-driven, variable valve timing, hydraulic tappets
Emissions: EURO 4
Compatible Vehicles:
Audi Q7 (1st generation 4L, 2006–2010 3.6L FSI quattro): Primary compatible model
Volkswagen Touareg (3.6 FSI, based on the same BHK/BHL powertrain platform): Cross-brand shared platform
Engine Block/Mid-Block Assembly Reference:
022103021 Series / 03H103011 Series
| Model Number | BHK 3.6 |
| Place of Origin | Guangdong, China |
| Condition | remanufactured |
| Purpose | for replace/repair |
| Type | Gas / Petrol Engine |
| Power | OEM Standards |
| Quantity (pieces) | 1 - 10 | 11 - 50 | > 50 |
| Lead time (days) | 7 | 15 | To be negotiated |
1. Our remanufactured products use accessories provided by well-known brand suppliers such as VICTORREINZ, SCHAEFFLER, KS KOLBENSCHMIDT GmbH, etc.
2. Our product quality is close to the original factory quality, but the price is only 50-60% of the original engine. We can also provide you with a one-year or 100000 kilometer warranty service for the entire machine, and professional after-sales personnel will follow up with you.
3. We have over 15 years of experience in the production and research of automotive engines, and our technical level and personnel training are very scientific and mature. Customers who have worked with us have expressed their agreement with our products and after-sales service.
4. 2018 It has achieved an annual production capacity of 2200 units and has become a major supplier of high-end engine remanufacturing and parts in China's automotive aftermarket.
5. In April 2021, T/CAAMTB passed the certification company of China Automobile Research and Huacheng. 19-2019 Certification of the management system requirements of gas vehicle parts remanufacturing enterprisesIn October 2021, he became a member of the National Green Manufacturing Technology Standardization Committee and participated in the drafting of the Technical Specification for Assembly of Remanufacturing Mechanical and Electrical Products.
